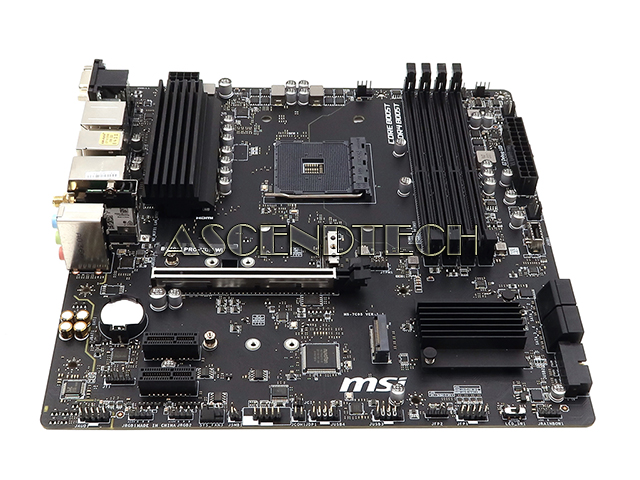

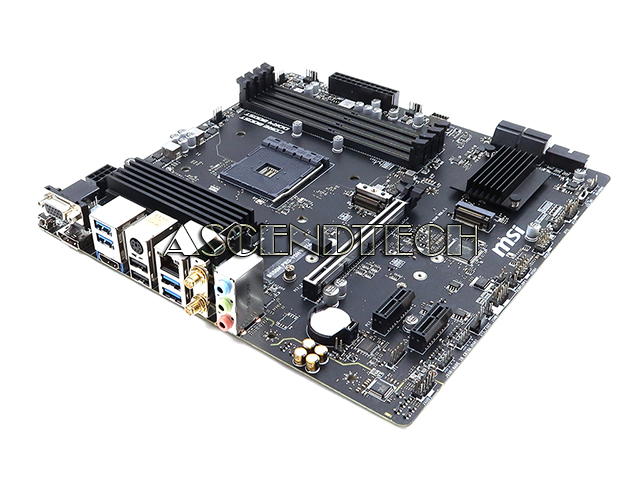

MSI B550M PRO-VDH WiFi 6 Mboard No I/O
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code MBDSK6017C95090
Brand Msi - Microstar
Model B550M PRO-VDH WiFi 6
Part Number 601-7C95-090B
Compatible Part Numbers 7C95-090B 7C95/090B
Category Amd Socket Am4 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, fan’s bracket, fan’s mounting backplate, cables, or any other accessories!
Description
MSI B550M PRO-VDH WiFi 6 AMD Chipset B550 Socket AM4 DDR4 VGA HDMI DP SATA 6Gb/s Micro ATX Desktop Motherboard 601-7C95-090B.
Chipset: AMD B550
Socket: AMD AM4
Compatible/Supported CPU: Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4400MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 10
Bluetooth Standard: Bluetooth 4.2
Wireless Lan Support: Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed
Network/Communications: Realtek 8111HN Gigabit LAN controller
Audio: Realtek ALC892/ALC897 Codec
Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 4x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 3x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Serial port connector, 1x Chassis Intrusion connector, 2x 4-pin RGB LED connectors, 2x 3-pin RAINBOW LED connectors, 1x TPM module connector, 1x Clear CMOS jumper
Input/Output Ports: 1x VGA, 2x USB 3.2 Gen 1 5Gbps Type-A, 1x Keyboard / Mouse, 1x LAN, 1x Flash BIOS Button, 1x DisplayPort, 1x HDMI, 2x USB 2.0, 2x USB 3.2 Gen 1 5Gbps Type-A, Wi-Fi Antenna connectors, 3x Audio jacks
Expansion Slots: 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1), 2x PCIe 3.0 x1 slots, 4x SATA 6Gb/s ports, 2x M.2 slots (Key M)
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit
Additional Specifications:
Onboard Graphics
1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Support HDCP 1.4 & 2.3
Maximum shared memory of 16 GB
USB
AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
CPU Support:
| Socket AM4 | |||||||
|---|---|---|---|---|---|---|---|
| Vendor | Processor | CPU Model | Frequency | Cache | Core Name | Stepping | Wattage |
| AMD | RYZEN 5 | 5600 | 3.5GHz | 32MB | Vermeer | B0 | 65 |
| AMD | RYZEN 7 | 5700X | 3.4GHz | 32MB | Vermeer | B2 | 65 |
| AMD | RYZEN 7 | 5800X3D | 3.4GHz | 96MB | Vermeer | B2 | 105 |
| AMD | RYZEN 5 | 5500 | 3.6GHz | 16MB | Cezanne | A0 | 65 |
| AMD | RYZEN 3 | 4100 | 3.8GHz | 4MB | Renoir | A1 | 65 |
| AMD | RYZEN 5 | 4500 | 3.6GHz | 8MB | Renoir | A1 | 65 |
| AMD | RYZEN 9 | 5900X | 3.7GHz | 64MB | Vermeer | B2 | 105 |
| AMD | RYZEN 7 | 5800X | 3.8GHz | 32MB | Vermeer | B2 | 105 |
| AMD | RYZEN 9 | 5950X | 3.4GHz | 64MB | Vermeer | B2 | 105 |
| AMD | RYZEN 7 | 5800 | 3.4GHz | 32MB | Vermeer | B2 | 65 |
| AMD | RYZEN 5 | 5600X | 3.7GHz | 32MB | Vermeer | B2 | 65 |
| AMD | RYZEN 9 | 5900 | 3.0GHz | 64MB | Vermeer | B2 | 65 |
| AMD | RYZEN 7 | 5700GE | 3.2GHz | 16MB | Cezanne | A0 | 35 |
| AMD | RYZEN 5 | 5600GE | 3.4GHz | 16MB | Cezanne | A0 | 35 |
| AMD | RYZEN 3 | PRO 5350GE | 3.6GHz | 8MB | Cezanne | A0 | 35 |
| AMD | RYZEN 3 | PRO 5350G | 4.0GHz | 8MB | Cezanne | A0 | 65 |
| AMD | RYZEN 3 | 5300GE | 3.6GHz | 8MB | Cezanne | A0 | 35 |
| AMD | RYZEN 3 | 5300G | 4.0GHz | 8MB | Cezanne | A0 | 65 |
| AMD | RYZEN 5 | 5600X | 3.7GHz | 32MB | Vermeer | B0 | 65 |
| AMD | RYZEN 7 | 5800X | 3.8GHz | 32MB | Vermeer | B0 | 105 |
| AMD | RYZEN 9 | 5900X | 3.7GHz | 64MB | Vermeer | B0 | 105 |
| AMD | RYZEN 9 | 5950X | 3.4GHz | 64MB | Vermeer | B0 | 105 |
| AMD | RYZEN 5 | PRO 5650GE | 3.4GHz | 16MB | Cezanne | A0 | 35 |
| AMD | RYZEN 5 | 5600G | 3.9GHz | 16MB | Cezanne | A0 | 65 |
| AMD | RYZEN 7 | PRO 5750GE | 3.2GHz | 16MB | Cezanne | A0 | 35 |
| AMD | RYZEN 7 | 5700G | 3.8GHz | 16MB | Cezanne | A0 | 65 |
| AMD | RYZEN 7 | PRO 5750G | 3.8GHz | 16MB | Cezanne | A0 | 65 |
| AMD | RYZEN 5 | PRO 5650G | 3.9GHz | 16MB | Cezanne | A0 | 65 |
| AMD | RYZEN 5 | 4600GE | 3.3GHz | 8MB | Renoir | A1 | 35 |
| AMD | RYZEN 7 | PRO 4750G | 3.6GHz | 8MB | Renoir | A1 | 65 |
| AMD | RYZEN 3 | 4300GE | 3.5GHz | 4MB | Renoir | A1 | 35 |
| AMD | RYZEN 7 | 4700GE | 3.1GHz | 8MB | Renoir | A1 | 35 |
| AMD | RYZEN 7 | PRO 4750GE | 3.1GHz | 8MB | Renoir | A1 | 35 |
| AMD | RYZEN 5 | PRO 4650GE | 3.3GHz | 8MB | Renoir | A1 | 35 |
| AMD | RYZEN 3 | PRO 4350GE | 3.5GHz | 4MB | Renoir | A1 | 35 |
| AMD | RYZEN 3 | 4300G | 3.8GHz | 8MB | Renoir | A1 | 65 |
| AMD | RYZEN 5 | 4600G | 3.7GHz | 8MB | Renoir | A1 | 65 |
| AMD | RYZEN 3 | PRO 4350G | 3.8GHz | 4MB | Renoir | A1 | 65 |
| AMD | RYZEN 7 | 4700G | 3.6GHz | 8MB | Renoir | A1 | 65 |
| AMD | RYZEN 5 | PRO 4650G | 3.7GHz | 8MB | Renoir | A1 | 65 |
| AMD | RYZEN 9 | 3900XT | 3.8GHz | 64MB | Matisse | B0 | 105 |
| AMD | RYZEN 7 | 3800XT | 3.9GHz | 32MB | Matisse | B0 | 105 |
| AMD | RYZEN 5 | 3600XT | 3.8GHz | 32MB | Matisse | B0 | 95 |
| AMD | RYZEN 7 | PRO 3700 | 3.6GHz | 32MB | Matisse | B0 | 65 |
| AMD | RYZEN 5 | PRO 3600 | 3.6GHz | 32MB | Matisse | B0 | 65 |
| AMD | RYZEN 3 | 3100 | 3.6GHz | 16MB | Matisse | B0 | 65 |
| AMD | RYZEN 3 | 3300X | 3.8GHz | 16MB | Matisse | B0 | 65 |
| AMD | RYZEN 9 | 3950X | 3.5GHz | 64MB | Matisse | B0 | 105 |
| AMD | RYZEN 5 | 3600 | 3.6GHz | 32MB | Matisse | B0 | 65 |
| AMD | RYZEN 5 | 3600X | 3.8GHz | 32MB | Matisse | B0 | 95 |
| AMD | RYZEN 7 | 3800X | 3.9GHz | 32MB | Matisse | B0 | 105 |
| AMD | RYZEN 9 | 3900X | 3.8GHz | 64MB | Matisse | B0 | 105 |
| AMD | RYZEN 7 | 3700X | 3.6GHz | 32MB | Matisse | B0 | 65 |
| AMD | RYZEN 5 | 3500 | 3.6GHz | 16MB | Matisse | B0 | 65 |
| AMD | RYZEN 9 | 3900 | 3.1GHz | 64MB | Matisse | B0 | 65 |
| AMD | RYZEN 5 | 3500X | 3.6GHz | 32MB | Matisse | B0 | 65 |
