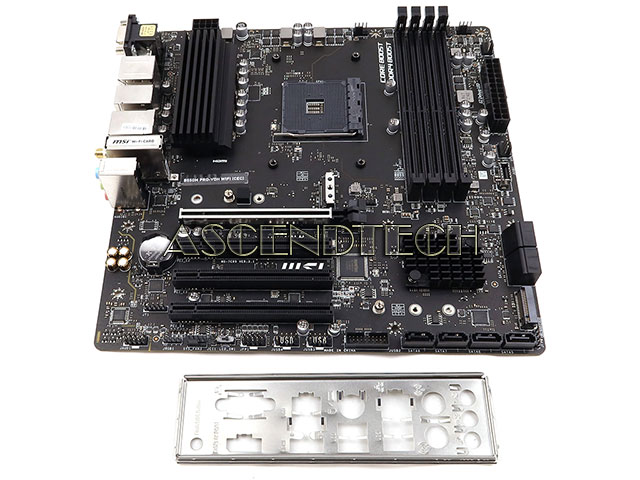

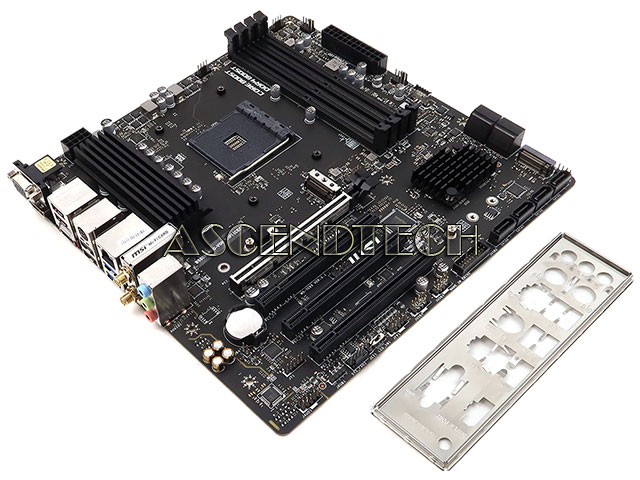

B550M PRO-VDH WIFI (CEC) 601-7C95-170B | Msi B550m Pro-Vdh Wifi (Cec) Mboard

MSI B550M PRO-VDH WIFI (CEC) AMD Chipset B550 Socket AM4 DDR4 HDMI DisplayPort VGA SATA 6Gb/s Micro-ATX Desktop Motherboard 601-7C95-170B.

Chipset: AMD B550

Socket: AMD AM4

Compatible/Supported CPU: Supports AMD Ryzen 5000 & 3000 Series

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 3200MHz

Storage Interface: SATA 6Gb/s; nVME

RAID Support: SATA: 0, 1, 10; nVME: 0, 1

Bluetooth Standard: Bluetooth 5.2

Wireless Lan Support: 802.11ax WLAN

Network/Communications: Realtek 8RTL8111GN / RTL8111HN 1Gbps LAN controller, Intel Wi-Fi 6 AX200/ AX210

Audio: Realtek ALC892/ALC897 Codec

Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 3x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x 4-pin RGB LED connector, 1x 3-pin RAINBOW LED connector, 1x TPM module connector, 1x Clear CMOS jumper

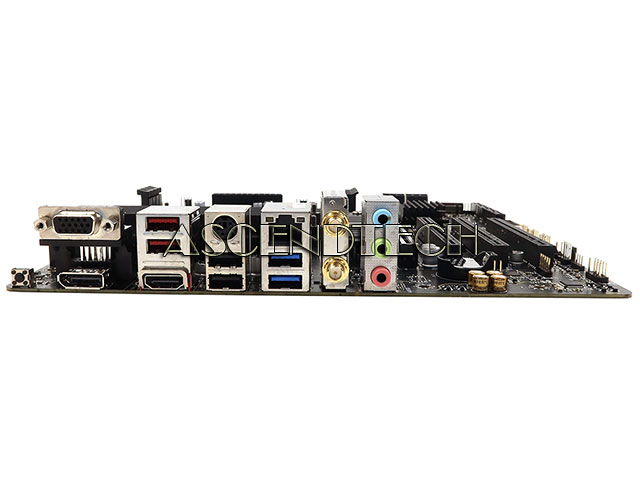

Input/Output Ports: 1x VGA, 2x USB 3.2 Gen 2, 1x Keyboard / Mouse, 1x LAN port, 2x WiFi/Bluetooth, 3x Audio connector, 1x DisplayPort, 1x HDMI, 2x USB 2.0, 2x USB 3.2 Gen1

Expansion Slots: 3x PCIe 3.0 x16, 1x x PCIe 3.0/ 4.0 x16, 2x M.2 slots (Key M), 8x SATA 6Gb/s

Form Factor: Micro-ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit

Additional Specifications:

CPU Support

Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors

Special Features

-Lightning Gen4 Solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
-M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
-PCI-E Steel Armor Protecting VGA cards against bending and EMI
-Optimum Thermal Solution Wavy Fin Design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, double-sided M.2 Shield Frozr, and Frozr AI software ensure the extreme performance with low temp.
-DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability.
-Core Boost With premium layout and fully digital power design to support more cores and provide better performance.
-EZ Debug LED Easiest way to troubleshoot.
-Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
-Audio Boost Reward your ears with studio grade sound quality for the most immersive audio experience.
