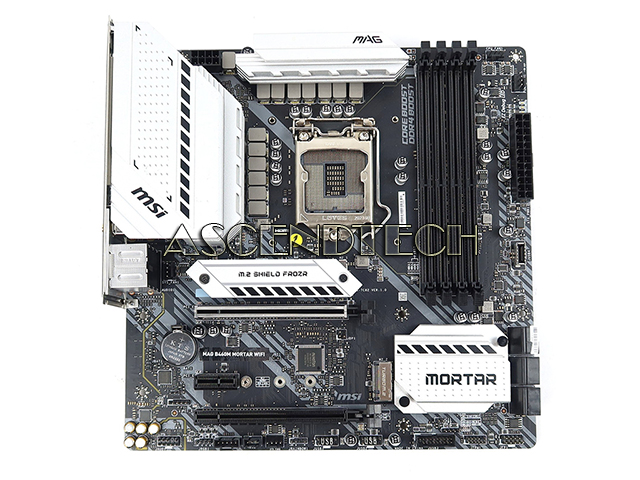

MSI MAG B460M MORTAR WIFI Motherboard

Chipset: Intel B460

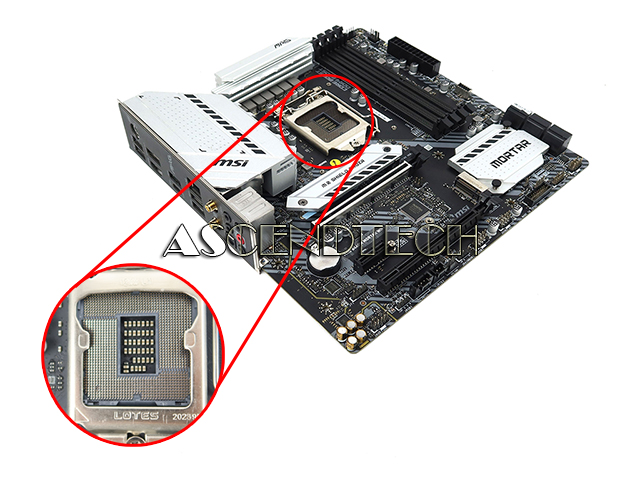

Socket: Intel LGA1200

Compatible/Supported CPU: 10th Gen Intel Core and Pentium Gold / Celeron processors

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 2933MHz

Storage Interface: SATA 3 6Gb/s

RAID Support: 0, 1, 5, 10

Network/Communications: Realtek RTL8125B 2.5G LAN Controller

Audio: Realtek ALC1200 Codec

Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports), 1x USB 3.2 Gen 1 5Gbps Type-C connector, 2x USB 2.0 connectors (support additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water pump connector, 2x 4-pin system fan connectors 1x front panel audio connector, 2x system panel connectors, 1x TPM module connector, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x 4-pin RGB LED connector, 1x 3-pin RAINBOW LED connector, 1x TBT connector, 1x RTD3 connector

Input/Output Ports: 1x PS/2 Combo Port, 1x DisplayPort, 1x USB 3.2 Gen 1 5Gbps (Type-A), 1x 2.5G LAN Port, 2x WiFi Antenna connectors, 5x HD Audio Connectors, 2x USB 2.0 Ports, 1x HDMI Port, 1x USB 3.2 Gen 1 5Gbps (Type-C), 2x USB 3.2 Gen 1 5Gbps (Type-A), 1x Optical S/PDIF OUT

Expansion Slots: 1x PCIe 3.0 x16 slot (from CPU), 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode), 1x PCIe 3.0 x1 slot (from PCH), 6x SATA 6Gb/s ports, 2x M.2 slots (Key M)

Form Factor: Micro ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit
