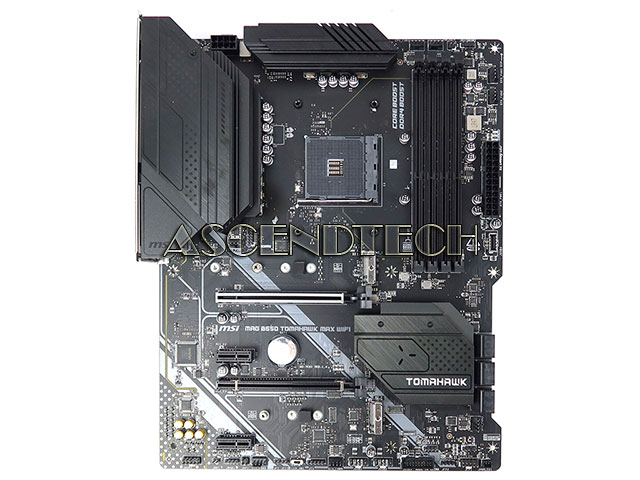

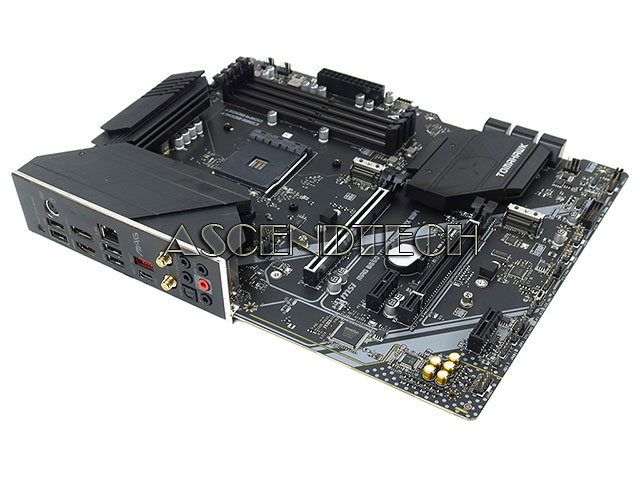

MSI MAG B550 TOMAHAWK MAX WiFi AM4 MB
Qty:
Item Code MBDSKMAGB550TOA
Brand Msi - Microstar
Model MAG B550 TOMAHAWK MAX
Compatible Part Numbers MAG B550 TOMAHAWK MAX WiFi
Category Amd Socket Am4 Motherboard
Condition Like New Grade A

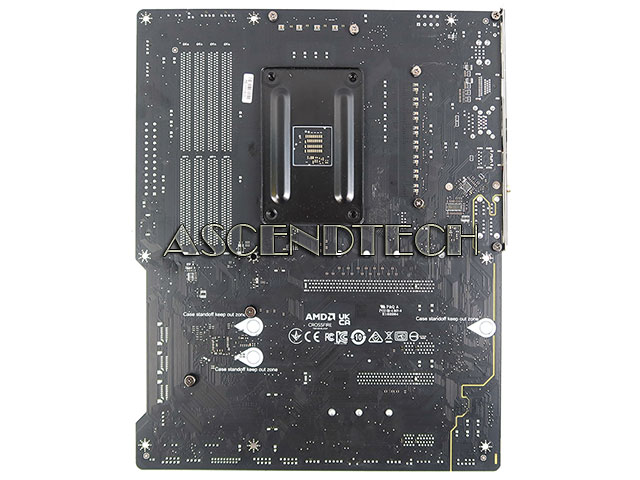

Condition Description Please note, this motherboard comes with a CPU cooler backplate and I/O shield only and does not include an M.2 Shield Frozr, Wi-Fi antenna, cables, fan bracket, or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description
MSI MAG B550 TOMAHAWK MAX WiFi AMD Chipset B550 Socket AM4 DDR4 M.2 SATA 6Gb/s HDMI DisplayPort ATX Desktop Motherboard.
Chipset: AMD B550
Socket: AMD AM4
Compatible/Supported CPU: AMD Ryzen 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 1866MHz / 2133MHz / 2400MHz / 2667MHz / 2800MHz / 2933MHz / 3000MHz / 3066MHz / 3200MHz by JEDEC; 2667MHz / 2800MHz / 2933MHz / 3000MHz / 3066MHz / 3200MHz / 3466MHz / 3600MHz / 3733MHz / 3866MHz / 4000MHz / 4133MHz / 4266MHz / 4400MHz / 4533MHz / 4600MHz / 4733MHz / 4800MHz / 4866MHz / 5000MHz / 5100+MHz by A-XMP OC
Storage Interface: 2x M.2 NVMe; 6x SATA 6Gb/s
RAID Support: RAID 0 and RAID 1 for M.2 NVMe storage devices; RAID 0, RAID 1 and RAID 10 for SATA storage devices
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 802.11 a/b/g/n/ac/ax
Network/Communications: Realtek RTL8125B 2.5 Gbps LAN controller; AMD Wi-Fi 6E
Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
Connectors: 1x 24-pin ATX Main Power Connector; 1x 8-pin ATX 12V Power Connector; 6x SATA 6Gb/s Connectors; 2x M.2 Slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps Connector (Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports); 2x USB 2.0 connectors (Supports Additional 4 USB 2.0 Ports); 1x 4-pin CPU Fan Connector; 1x 4-pin Water-Pump Fan Connector; 6x 4-pin System Fan Connectors; 1x Front Panel Audio Connector; 2x System Panel Connectors; 1x Chassis Intrusion Connector; 2x 4-pin RGB LED Connectors; 2x 3-pin RAINBOW LED Connectors; 1x TPM Module Connector; 1x Clear CMOS Jumper
Input/Output Ports: 1x PS/2 Keyboard / Mouse; 1x DisplayPort 1.4; 1x 2.5G LAN Port; 1x USB 3.2 Gen 2 10 Gbps Type-A; 2x Wi-Fi / Bluetooth Antenna Ports; 5x Audio Connectors; 2x USB 2.0 Port; 1x HDMI 2.1 Port; 2x USB 3.2 Gen 1 5Gbps Type-A; 1x USB 3.2 Gen 2 10Gbps Type-C; 1x Optical S/PDIF OUT
Expansion Slots: 1x PCI-Express 4.0 / 3.0 x16 slot; 1x PCI-Express 3.0 x16 slot, supports x4 speed; 2x PCI-Express 3.0 x1 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit; Windows 11 64-bit
Additional Specifications:
-Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2;
-Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience;
-Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost;
-2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection;
-Pre-installed I/O Shield: Better EMI protection and more convenience for installation;
-Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience;
-Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire.
Supported processors:
Processor | Core Name | CPU No | FSB | CPU Speed | L2 | L3 | Stepping | Wattage | GPU |
| Ryzen 9 | Vermeer | 5950X | 100 | 3.4GHz | 8MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Vermeer | 5950X | 100 | 3.4GHz | 8MB | 64MB | B2 | 105 | N/A |
| Ryzen 9 | Vermeer | 5900XT | 100 | 3.3GHz | 8MB | 64MB | B2 | 105 | N/A |
| Ryzen 9 | Vermeer | 5900X | 100 | 3.7GHz | 6MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Vermeer | 5900X | 100 | 3.7GHz | 6MB | 64MB | B2 | 105 | N/A |
| Ryzen 9 | Vermeer | 5900 | 100 | 3.0GHz | 6MB | 64MB | B2 | 65 | N/A |
| Ryzen 7 | Vermeer | 5800X3D | 100 | 3.4GHz | 4MB | 96MB | B2 | 105 | N/A |
| Ryzen 7 | Vermeer | 5800XT | 100 | 3.8GHz | 4MB | 32MB | B2 | 105 | N/A |
| Ryzen 7 | Vermeer | 5800X | 100 | 3.8GHz | 4MB | 32MB | B2 | 105 | N/A |
| Ryzen 7 | Vermeer | 5800X | 100 | 3.8GHz | 4MB | 32MB | B0 | 105 | N/A |
| Ryzen 7 | Vermeer | 5800 | 100 | 3.4GHz | 4MB | 32MB | B2 | 65 | N/A |
| Ryzen 7 | Cezanne | PRO 5755GE | 100 | 3.2GHz | 4MB | 16MB | A0 | 35 | AMDRadeon(TM)Graphics |
| Ryzen 7 | Cezanne | PRO 5755G | 100 | 3.8GHz | 4MB | 16MB | A0 | 65 | AMDRadeon(TM)Graphics |
| Ryzen 7 | Cezanne | PRO 5750GE | 100 | 3.2GHz | 4MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 7 | Cezanne | PRO 5750G | 100 | 3.8GHz | 4MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Vermeer | 5700X3D | 100 | 3.0GHz | 4MB | 96MB | B2 | 105 | N/A |
| Ryzen 7 | Vermeer | 5700X | 100 | 3.4GHz | 4MB | 32MB | B2 | 65 | N/A |
| Ryzen 7 | Cezanne | 5700GE | 100 | 3.2GHz | 4MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 7 | Cezanne | 5700G | 100 | 3.8GHz | 4MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Cezanne | 5700 | 100 | 3.7GHz | 4MB | 16MB | A0 | 65 | N/A |
| Ryzen 5 | Cezanne | PRO 5655GE | 100 | 3.4GHz | 3MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | PRO 5655G | 100 | 3.9GHz | 3MB | 16MB | A0 | 65 | AMDRadeon(TM)Graphics |
| Ryzen 5 | Cezanne | PRO 5650GE | 100 | 3.4GHz | 3MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | PRO 5650G | 100 | 3.9GHz | 3MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Vermeer | 5600X3D | 100 | 3.3GHz | 3MB | 96MB | B2 | 105 | N/A |
| Ryzen 5 | Vermeer | 5600XT | 100 | 3.7GHz | 3MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Vermeer | 5600X | 100 | 3.7GHz | 3MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Vermeer | 5600X | 100 | 3.7GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Vermeer | 5600T | 100 | 3.5GHz | 3MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Cezanne | 5600GT | 100 | 3.6GHz | 3MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | 5600GE | 100 | 3.4GHz | 3MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | 5600G | 100 | 3.9GHz | 3MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Vermeer | 5600F | 100 | 3.0GHz | 3MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Vermeer | 5600 | 100 | 3.5GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Vermeer | 5500X3D | 100 | 3.0GHz | 3MB | 96MB | B2 | 105 | N/A |
| Ryzen 5 | Cezanne | 5500GT | 100 | 3.6GHz | 3MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | 5500 | 100 | 3.6GHz | 3MB | 16MB | A0 | 65 | N/A |
| Ryzen 3 | Cezanne | PRO 5355GE | 100 | 3.6GHz | 2MB | 8MB | A0 | 35 | AMDRadeon(TM)Graphics |
| Ryzen 3 | Cezanne | PRO 5355G | 100 | 4.0GHz | 2MB | 8MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | PRO 5350GE | 100 | 3.6GHz | 2MB | 8MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | PRO 5350G | 100 | 4.0GHz | 2MB | 8MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | 5300GE | 100 | 3.6GHz | 2MB | 8MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | 5300G | 100 | 4.0GHz | 2MB | 8MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | 5100 | 100 | 3.8GHz | 2MB | 8MB | A0 | 65 | N/A |
| Ryzen 7 | Renoir | PRO 4750GE | 100 | 3.1GHz | 4MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 7 | Renoir | PRO 4750G | 100 | 3.6GHz | 4MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Renoir | 4700GE | 100 | 3.1GHz | 4MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 7 | Renoir | 4700G | 100 | 3.6GHz | 4MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | PRO 4655GE | 100 | 3.3GHz | 3MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | PRO 4655G | 100 | 3.7GHz | 3MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | PRO 4650GE | 100 | 3.3GHz | 3MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | PRO 4650G | 100 | 3.7GHz | 3MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | 4600GE | 100 | 3.3GHz | 3MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | 4600G | 100 | 3.7GHz | 3MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | 4500 | 100 | 3.6GHz | 3MB | 8MB | A1 | 65 | N/A |
| Ryzen 3 | Renoir | PRO 4355GE | 100 | 3.5GHz | 4MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | PRO 4355G | 100 | 3.8GHz | 2MB | 4MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | PRO 4350GE | 100 | 3.5GHz | 2MB | 4MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | PRO 4350G | 100 | 3.8GHz | 2MB | 4MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | 4300GE | 100 | 3.5GHz | 2MB | 4MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | 4300G | 100 | 3.8GHz | 3MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | 4100 | 100 | 3.8GHz | 2MB | 4MB | A1 | 65 | N/A |
| Ryzen 9 | Matisse | 3950X | 100 | 3.5GHz | 8MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Matisse | PRO 3900 | 100 | 3.1GHz | 6MB | 64MB | B0 | 65 | N/A |
| Ryzen 9 | Matisse | 3900XT | 100 | 3.8GHz | 6MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Matisse | 3900X | 100 | 3.8GHz | 6MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Matisse | 3900 | 100 | 3.1GHz | 6MB | 64MB | B0 | 65 | N/A |
| Ryzen 7 | Matisse | 3800XT | 100 | 3.9GHz | 4MB | 32MB | B0 | 105 | N/A |
| Ryzen 7 | Matisse | 3800X | 100 | 3.9GHz | 4MB | 32MB | B0 | 105 | N/A |
| Ryzen 7 | Matisse | PRO 3700 | 100 | 3.6GHz | 4MB | 32MB | B0 | 65 | N/A |
| Ryzen 7 | Matisse | 3700X | 100 | 3.6GHz | 4MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Matisse | PRO 3600 | 100 | 3.6GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Matisse | 3600XT | 100 | 3.8GHz | 3MB | 32MB | B0 | 95 | N/A |
| Ryzen 5 | Matisse | 3600X | 100 | 3.8GHz | 3MB | 32MB | B0 | 95 | N/A |
| Ryzen 5 | Matisse | 3600 | 100 | 3.6GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Matisse | 3500X | 100 | 3.6GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Matisse | 3500 | 100 | 3.6GHz | 3MB | 16MB | B0 | 65 | N/A |
| Ryzen 3 | Matisse | 3300X | 100 | 3.8GHz | 2MB | 16MB | B0 | 65 | N/A |
| Ryzen 3 | Matisse | 3100 | 100 | 3.6GHz | 2MB | 16MB | B0 | 65 | N/A |
