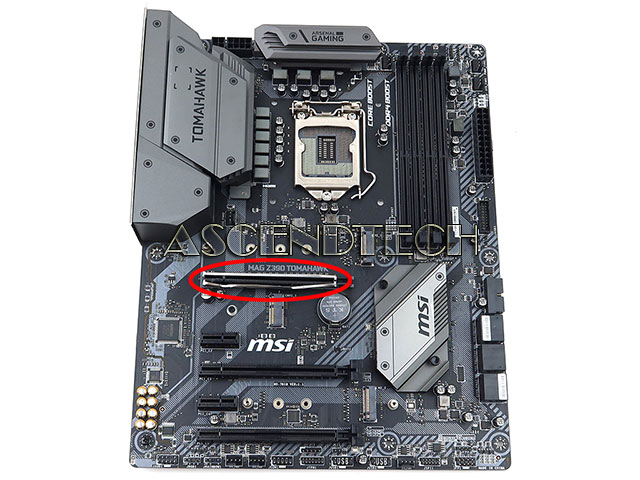

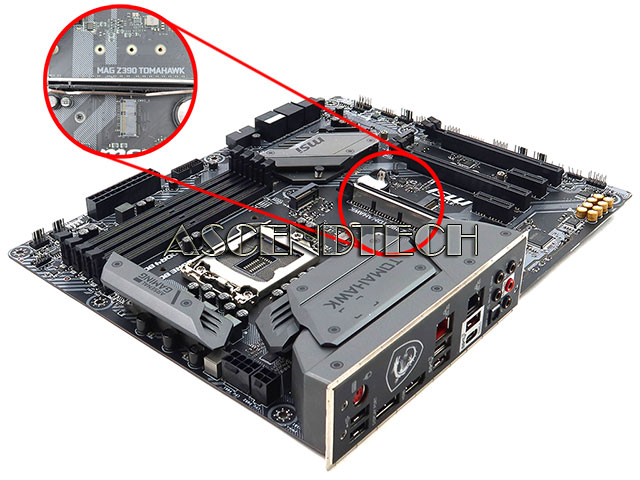

MSI MAG Z390 TOMAHAWK Intel Chipset Z390 Socket LGA1151 DDR4 SATA3 6Gb/s HDMI DisplayPort ATX Desktop Motherboard.
Chipset: Intel Z390
Socket: Intel LGA1151
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 4400MHz(O.C.)/4300MHz(O.C.)/4266MHz(O.C.)/4133MHz(O.C.)/4000MHz(O.C.)/3866MHz(O.C.)/3733MHz(O.C.)/3666MHz(O.C.)/3600MHz(O.C.)/3466MHz(O.C.)/3400MHz(O.C.)/3333MHz(O.C.)/3300MHz(O.C.)/3200MHz/3000MHz/2933MHz/2800MHz/2666MHz/2400MHz/2133MHz
Storage Interface: SATA 6Gb/s
Network/Communications: Intel I219-V, I211-AT Gigabit LAN controllers
Connectors: 1x 24-pin ATX main power, 1x 8-pin ATX 12V power, 1x 4-pin ATX 12V power, 6x SATA 6Gb/s, 2x USB 3.1 Gen1 (supports additional 4 USB 3.1 Gen1 ports), 2x USB 2.0 (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan, 1x 4-pin Water Pump, 5x 4-pin system fan, 1x Serial port, 1x Front panel audio, 2x System panel, 1x Chassis Intrusion, 1x TPM module, 2x 4-pin RGB LED, 1x 3-pin RAINBOW LED
Input/Output Ports: 1x PS/2 Combo Port, 2x LAN Port, 5x HD Audio Connectors, 2x USB 2.0 Port, 1x DisplayPort, 1x HDMI Port, 2x USB 3.1 Gen2 Type A, 1x USB 3.1 Gen2 Type A, 1x USB 3.1 Gen2 Type-C, 1x Optical S/PDIF OUT
Expansion Slots: 3x PCIe 3.0 x16 slots (support x16/x4/x1 modes), 2x PCIe 3.0 x1 slots, 1x M.2 slot (Key E) for an Intel CNVi, 6x SATA 6Gb/s ports, 2x M.2 slots (Key M)
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit
Additional Specifications:
Special Features
-Pre-installed I/O Shielding Better EMI protection and more convenience for installation
-Dual LAN Dual premium network solution for both Intranet and Internet, offering a smooth gaming experience for effective network connection
-Intel CNVi Ready Supports Intel CNVi Wi-Fi, IEEE 802.11 AC wave2.
-Intel Turbo USB 3.1 Gen2 Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds.
-M.2 SHIELD FROZR Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.
-Core Boost With premium layout and fully digital power design to support more cores and provide better performance.
-Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
-DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability.
