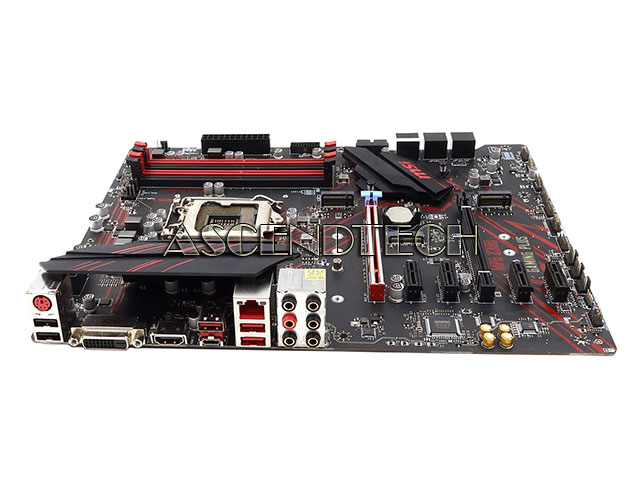

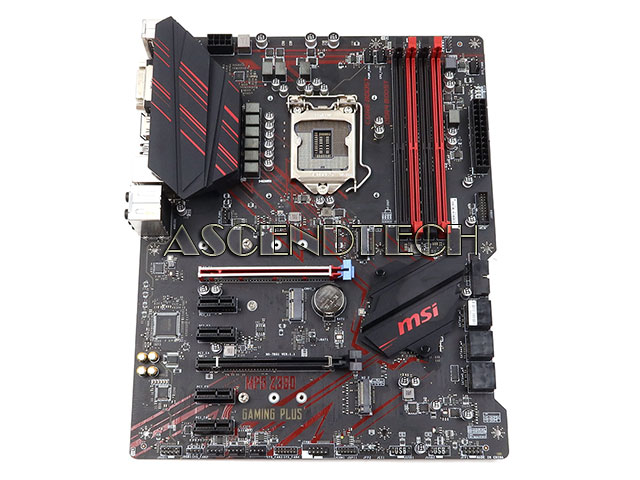

MSI MPG Z390 GAMING PLUS Mboard No I/O

Chipset: Intel Z390

Socket: Intel LGA1151

Compatible/Supported CPU: Intel Core 9000 Series family/ 8th Gen Intel Core / Pentium Gold / Celeron processor

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 4400MHz

Storage Interface: SATA 3 6.0Gb/s

RAID Support: 0, 1, 5, 10

Network/Communications: 1x Intel I219-V Gigabit LAN controller

Audio: Realtek ALC892 Codec

Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 3x M.2 slots (2 M-Key slots,1 E-Key slot), 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin Water Pump connector, 5x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector, 2x 4-pin RGB LED connectors, 1x Serial Port connector, 1x Clear CMOS jumper

Input/Output Ports: 1x PS/2 Combo Port, 1x RJ-45, 6x HD Audio Connectors, 2x USB 2.0, 1x DVI-D, 1x HDMI, 2x USB 3.1 Gen2 Type-A + C, 2x USB 3.1 Gen1

Expansion Slots: 2x PCIe 3.0 x16 slots, 4x PCIe 3.0 x1 slots, 1x M.2 slot with E key for Integrated Intel Wireless-AC(CNVi) module only, 6x SATA 6Gb/s ports, 2x M.2 slot (Key M)

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit
