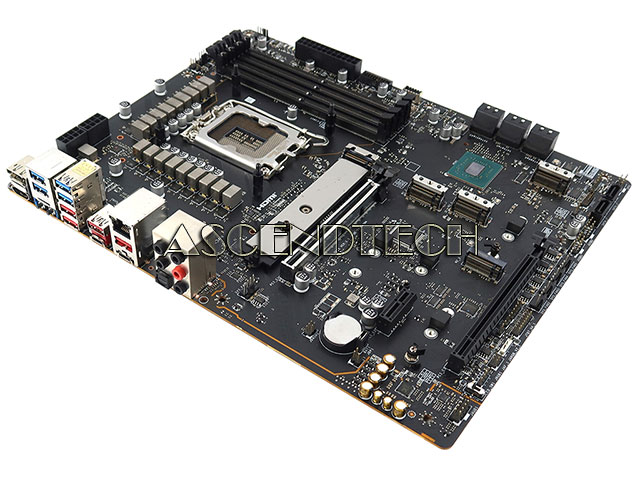

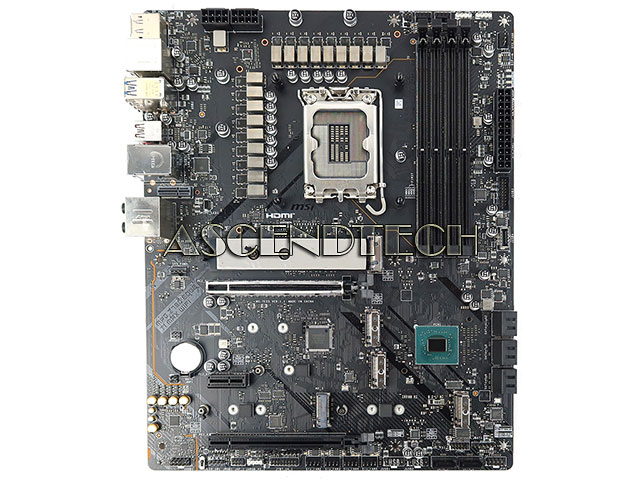

MSI MPG Z790 EDGE TI MAX WIFI MB No I/O
Qty:
Item Code MBDSKMPGZ790TIA
Brand Msi - Microstar
Model MPG Z790 EDGE TI MAX WIFI
Category Intel Lga1700 Motherboard
Condition Like New Grade A

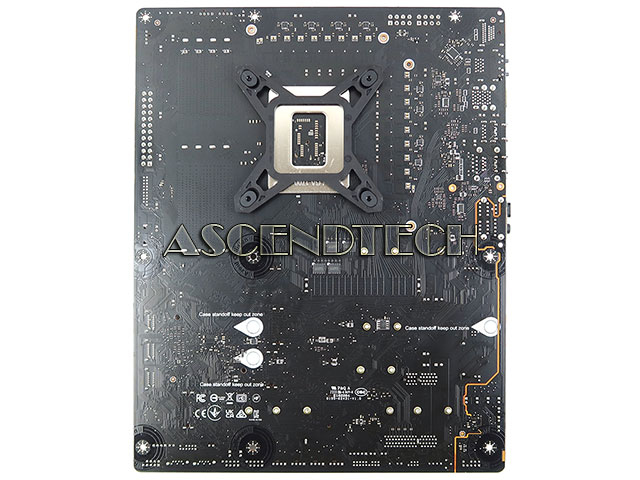

Condition Description Please note, this motherboard comes with a CPU cooling backplate with screws and enhanced M.2 thermal only and does not include Wi-Fi antenna connectors (RP-SMA), an I/O shield, extended heatsink, 7W/mK thermal pads, direct touch heat-pipe, M.2 shield frozr, enlarged PCH heatsink, cables, a fan’s bracket, or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description
MSI MPG Z790 EDGE TI MAX WIFI Intel Chipset Z790 Socket LGA1700 DDR5 HDMI DisplayPort M.2 SATA 6Gb/s ATX Desktop Motherboard.
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7800+(OC)MHz / 7600(OC)MHz / 7400(OC)MHz / 7200(OC)MHz / 7000(OC)MHz / 6800(OC)MHz / 6600(OC)MHz / 6400(OC)MHz / 6200(OC)MHz / 6000(OC)MHz / 5800(OC)MHz / 5600(JEDEC)MHz / 5400(JEDEC)MHz / 5200(JEDEC)MHz / 5000(JEDEC)MHz / 4800(JEDEC)MHz
Storage Interface: 5x M.2 NVMe; 8x SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Bluetooth Standard: Bluetooth 5.4
Wireless Lan Support: 802.11 a/b/g/n/ac/ax
Network/Communications: Intel 2.5 Gbps LAN; Wi-Fi 7 Solution
Audio: Realtek ALC4080 Codec; 7.1-Channel USB High Performance Audio; Supports up to 32-Bit/384 kHz playback on front panel
Connectors: 1x ATX Power Connector (ATX_PWR); 2x CPU Power Connector (CPU_PWR); 5x System Fan; 1x EZ Conn-header (JAF_1); 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller Connector (JDASH); 3x Addressable V2 RGB LED Connector (JARGB_V2); 1x RGB LED Connector (JRGB); 1x TPM Pin Header (Support TPM 2.0); 1x USB4 Card Connector (JTBT_U4_1, Supports RTD3); 4x USB 2.0 Ports; 2x USB 5Gbps Type A Ports; 1x USB 10Gbps Type C Ports
Input/Output Ports: 1x Display Port; 4x USB 5 Gbps (Type-A); 4x USB 10 Gbps (Type-A); 1x 2.5G LAN; 5x Audio Connectors; 1x HDMI; 1x USB 10 Gbps (Type-C); 1x USB 20 Gbps (Type-C); 2x Wi-Fi / Bluetooth Antenna Ports; 1x Optical S/PDIF Out
Expansion Slots: 2x PCI-Express x16 slot; 1x PCI-Express x1 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit; Windows 11 64-bit
Additional Specifications:
-Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
-Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
-Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
-2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
-AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
-High Quality PCB: 6-layer PCB made by server grade level material
-Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Supported processors:
Processor | Core Name | CPU No | FSB | CPU Speed | L2 | L3 | Stepping | Wattage | GPU |
| Core i9 | Raptorlake Refresh | i9-14900T | 100 | 1.1GHz | 32MB | 36MB | B0 | 35 | UHDGraphics770 |
| Core i9 | Raptorlake Refresh | i9-14900KS | 100 | 3.2GHz | 32MB | 36MB | B0 | 150 | UHDGraphics770 |
| Core i9 | Raptorlake Refresh | i9-14900KF | 100 | 3.2GHz | 32MB | 36MB | B0 | 125 | N/A |
| Core i9 | Raptorlake Refresh | i9-14900K | 100 | 3.2GHz | 32MB | 36MB | B0 | 125 | UHDGraphics770 |
| Core i9 | Raptorlake Refresh | i9-14900F | 100 | 2.0GHz | 32MB | 36MB | B0 | 65 | N/A |
| Core i9 | Raptorlake Refresh | i9-14900 | 100 | 2.0GHz | 32MB | 36MB | B0 | 65 | UHDGraphics770 |
| Core i7 | Raptorlake Refresh | i7-14790F | 100 | 2.1GHz | 24MB | 36MB | B0 | 65 | N/A |
| Core i7 | Raptorlake Refresh | i7-14700T | 100 | 1.3GHz | 28MB | 33MB | B0 | 35 | UHDGraphics770 |
| Core i7 | Raptorlake Refresh | i7-14700KF | 100 | 3.4GHz | 28MB | 33MB | B0 | 125 | N/A |
| Core i7 | Raptorlake Refresh | i7-14700K | 100 | 3.4GHz | 28MB | 33MB | B0 | 125 | UHDGraphics770 |
| Core i7 | Raptorlake Refresh | i7-14700F | 100 | 2.1GHz | 28MB | 33MB | B0 | 65 | N/A |
| Core i7 | Raptorlake Refresh | i7-14700 | 100 | 2.1GHz | 28MB | 33MB | B0 | 65 | UHDGraphics770 |
| Core i5 | Raptorlake Refresh | i5-14600T | 100 | 1.8GHz | 20MB | 24MB | B0 | 35 | UHDGraphics770 |
| Core i5 | Raptorlake Refresh | i5-14600KF | 100 | 3.5GHz | 20MB | 24MB | B0 | 125 | N/A |
| Core i5 | Raptorlake Refresh | i5-14600K | 100 | 3.5GHz | 20MB | 24MB | B0 | 125 | UHDGraphics770 |
| Core i5 | Raptorlake Refresh | i5-14600 | 100 | 2.7GHz | 20MB | 24MB | B0 | 65 | UHDGraphics770 |
| Core i5 | Raptorlake Refresh | i5-14500T | 100 | 1.7GHz | 11.5MB | 24MB | C0 | 35 | UHDGraphics770 |
| Core i5 | Raptorlake Refresh | i5-14500 | 100 | 2.6GHz | 11.5MB | 24MB | C0 | 65 | UHDGraphics770 |
| Core i5 | Raptorlake Refresh | i5-14490F | 100 | 2.8GHz | 9.5MB | 24MB | C0 | 65 | N/A |
| Core i5 | Raptorlake Refresh | i5-14400T | 100 | 1.5GHz | 9.5MB | 20MB | C0 | 35 | UHDGraphics730 |
| Core i5 | Raptorlake Refresh | i5-14400F | 100 | 2.5GHz | 9.5MB | 20MB | B0 | 65 | N/A |
| Core i5 | Raptorlake Refresh | i5-14400F | 100 | 2.5GHz | 9.5MB | 20MB | C0 | 65 | N/A |
| Core i5 | Raptorlake Refresh | i5-14400 | 100 | 2.5GHz | 9.5MB | 20MB | B0 | 65 | UHDGraphics730 |
| Core i5 | Raptorlake Refresh | i5-14400 | 100 | 2.5GHz | 9.5MB | 20MB | C0 | 65 | UHDGraphics730 |
| Core i3 | Raptorlake Refresh | i3-14100T | 100 | 2.7GHz | 5MB | 12MB | H0 | 35 | UHDGraphics730 |
| Core i3 | Raptorlake Refresh | i3-14100F | 100 | 3.5GHz | 5MB | 12MB | H0 | 58 | N/A |
| Core i3 | Raptorlake Refresh | i3-14100 | 100 | 3.5GHz | 5MB | 12MB | H0 | 60 | UHDGraphics730 |
| N/A | Raptorlake Refresh | 300T | 100 | 3.4GHz | 2.5MB | 6MB | H0 | 35 | UHDGraphics710 |
| N/A | Raptorlake Refresh | 300 | 100 | 3.9GHz | 2.5MB | 6MB | H0 | 46 | UHDGraphics710 |
| Core i9 | Raptorlake | i9-13900T | 100 | 1.1GHz | 32MB | 36MB | B0 | 35 | UHDGraphics770 |
| Core i9 | Raptorlake | i9-13900KS | 100 | 3.2GHz | 32MB | 36MB | B0 | 150 | UHDGraphics770 |
| Core i9 | Raptorlake | i9-13900KF | 100 | 3.00GHz | 32MB | 36MB | B0 | 125 | N/A |
| Core i9 | Raptorlake | i9-13900K | 100 | 3.00GHz | 32MB | 36MB | B0 | 125 | UHDGraphics770 |
| Core i9 | Raptorlake | i9-13900F | 100 | 2.00GHz | 32MB | 36MB | B0 | 65 | N/A |
| Core i9 | Raptorlake | i9-13900 | 100 | 2.00GHz | 32MB | 36MB | B0 | 65 | UHDGraphics770 |
| Core i7 | Raptorlake | i7-13790F | 100 | 2.1GHz | 24MB | 33MB | B0 | 65 | N/A |
| Core i7 | Raptorlake | i7-13700T | 100 | 1.4GHz | 24MB | 30MB | B0 | 35 | UHDGraphics770 |
| Core i7 | Raptorlake | i7-13700KF | 100 | 3.4GHz | 24MB | 30MB | B0 | 125 | N/A |
| Core i7 | Raptorlake | i7-13700K | 100 | 3.4GHz | 24MB | 30MB | B0 | 125 | UHDGraphics770 |
| Core i7 | Raptorlake | i7-13700F | 100 | 2.1GHz | 24MB | 30MB | B0 | 65 | N/A |
| Core i7 | Raptorlake | i7-13700 | 100 | 2.1GHz | 24MB | 30MB | B0 | 65 | UHDGraphics770 |
| Core i5 | Raptorlake | i5-13600T | 100 | 1.8GHz | 11.5MB | 24MB | C0 | 35 | UHDGraphics770 |
| Core i5 | Raptorlake | i5-13600KF | 100 | 3.5GHz | 20MB | 24MB | B0 | 125 | N/A |
| Core i5 | Raptorlake | i5-13600K | 100 | 3.5GHz | 20MB | 24MB | B0 | 125 | UHDGraphics770 |
| Core i5 | Raptorlake | i5-13600 | 100 | 2.7GHz | 11.5MB | 24MB | C0 | 65 | UHDGraphics770 |
| Core i5 | Raptorlake | i5-13500T | 100 | 1.6GHz | 11.5MB | 24MB | C0 | 35 | UHDGraphics770 |
| Core i5 | Raptorlake | i5-13500 | 100 | 2.5GHz | 11.5MB | 24MB | C0 | 65 | UHDGraphics770 |
| Core i5 | Raptorlake | i5-13490F | 100 | 2.5GHz | 9.5MB | 24MB | C0 | 65 | N/A |
| Core i5 | Raptorlake | i5-13400T | 100 | 1.3GHz | 9.5MB | 20MB | C0 | 35 | UHDGraphics730 |
| Core i5 | Raptorlake | i5-13400F | 100 | 2.5GHz | 9.5MB | 20MB | B0 | 65 | N/A |
| Core i5 | Raptorlake | i5-13400F | 100 | 2.5GHz | 9.5MB | 20MB | C0 | 65 | N/A |
| Core i5 | Raptorlake | i5-13400 | 100 | 2.5GHz | 9.5MB | 20MB | B0 | 65 | UHDGraphics730 |
| Core i5 | Raptorlake | i5-13400 | 100 | 2.5GHz | 9.5MB | 20MB | C0 | 65 | UHDGraphics730 |
| Core i3 | Raptorlake | i3-13100T | 100 | 2.5GHz | 5MB | 12MB | H0 | 35 | UHDGraphics730 |
| Core i3 | Raptorlake | i3-13100F | 100 | 3.4GHz | 5MB | 12MB | H0 | 58 | N/A |
| Core i3 | Raptorlake | i3-13100 | 100 | 3.4GHz | 5MB | 12MB | H0 | 60 | UHDGraphics730 |
| Core i9 | Alderlake | i9-12900T | 100 | 1.4GHz | 14MB | 30MB | C0 | 35 | UHDGraphics770 |
| Core i9 | Alderlake | i9-12900KS | 100 | 3.4GHz | 14MB | 30MB | C0 | 150 | UHDGraphics770 |
| Core i9 | Alderlake | i9-12900KF | 100 | 3.2GHz | 14MB | 30MB | C0 | 125 | N/A |
| Core i9 | Alderlake | i9-12900K | 100 | 3.2GHz | 14MB | 30MB | C0 | 125 | UHDGraphics770 |
| Core i9 | Alderlake | i9-12900F | 100 | 2.4GHz | 14MB | 30MB | C0 | 65 | N/A |
| Core i9 | Alderlake | i9-12900 | 100 | 2.4GHz | 14MB | 30MB | C0 | 65 | UHDGraphics770 |
| Core i7 | Alderlake | i7-12700T | 100 | 1.4GHz | 12MB | 25MB | C0 | 35 | UHDGraphics770 |
| Core i7 | Alderlake | i7-12700KF | 100 | 3.6GHz | 12MB | 25MB | C0 | 125 | N/A |
| Core i7 | Alderlake | i7-12700K | 100 | 3.6GHz | 12MB | 20MB | C0 | 125 | UHDGraphics770 |
| Core i7 | Alderlake | i7-12700F | 100 | 2.1GHz | 12MB | 25MB | C0 | 65 | N/A |
| Core i7 | Alderlake | i7-12700 | 100 | 2.1GHz | 12MB | 25MB | C0 | 65 | UHDGraphics770 |
| Core i5 | Alderlake | i5-12600T | 100 | 2.1GHz | 7.5MB | 18MB | H0 | 35 | UHDGraphics770 |
| Core i5 | Alderlake | i5-12600KF | 100 | 3.7GHz | 9.5MB | 20MB | C0 | 125 | N/A |
| Core i5 | Alderlake | i5-12600K | 100 | 3.7GHz | 9.5MB | 20MB | C0 | 125 | UHDGraphics770 |
| Core i5 | Alderlake | i5-12600 | 100 | 3.3GHz | 7.5MB | 18MB | H0 | 65 | UHDGraphics770 |
| Core i5 | Alderlake | i5-12500T | 100 | 2.00GHz | 7.5MB | 18MB | H0 | 35 | UHDGraphics770 |
| Core i5 | Alderlake | i5-12500 | 100 | 3.00GHz | 7.5MB | 18MB | H0 | 65 | UHDGraphics770 |
| Core i5 | Alderlake | i5-12490F | 100 | 3.00GHz | 7.5MB | 20MB | C0 | 65 | N/A |
| Core i5 | Alderlake | i5-12400T | 100 | 1.8GHz | 7.5MB | 18MB | H0 | 35 | UHDGraphics730 |
| Core i5 | Alderlake | i5-12400F | 100 | 2.5GHz | 7.5MB | 18MB | C0 | 65 | N/A |
| Core i5 | Alderlake | i5-12400F | 100 | 2.5GHz | 7.5MB | 18MB | H0 | 65 | N/A |
| Core i5 | Alderlake | i5-12400 | 100 | 2.5GHz | 7.5MB | 18MB | H0 | 65 | UHDGraphics730 |
| Core i5 | Alderlake | i5-12400 | 100 | 2.5GHz | 7.5MB | 18MB | C0 | 65 | UHDGraphics730 |
| Core i3 | Alderlake | i3-12300T | 100 | 2.3GHz | 5MB | 12MB | H0 | 35 | UHDGraphics730 |
| Core i3 | Alderlake | i3-12300 | 100 | 3.5GHz | 512KB | 12MB | H0 | 60 | UHDGraphics730 |
| Core i3 | Alderlake | i3-12100T | 100 | 2.2GHz | 5MB | 12MB | H0 | 35 | UHDGraphics730 |
| Core i3 | Alderlake | i3-12100F | 100 | 3.3GHz | 5MB | 12MB | H0 | 58 | N/A |
| Core i3 | Alderlake | i3-12100 | 100 | 3.3GHz | 5MB | 12MB | H0 | 60 | UHDGraphics730 |
| Pentium Gold | Alderlake | G7400T | 100 | 3.1GHz | 2.5MB | 6MB | H0 | 35 | UHDGraphics710 |
| Pentium Gold | Alderlake | G7400 | 100 | 3.7GHz | 2.5MB | 6MB | H0 | 46 | UHDGraphics710 |
| Celeron | Alderlake | G6900T | 100 | 2.8GHz | 2.5MB | 4MB | H0 | 35 | UHDGraphics710 |
| Celeron | Alderlake | G6900 | 100 | 3.4GHz | 2.5MB | 4MB | H0 | 46 | UHDGraphics710 |
