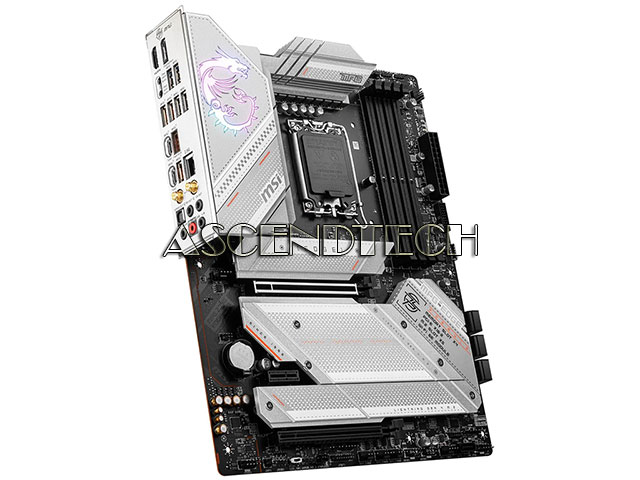

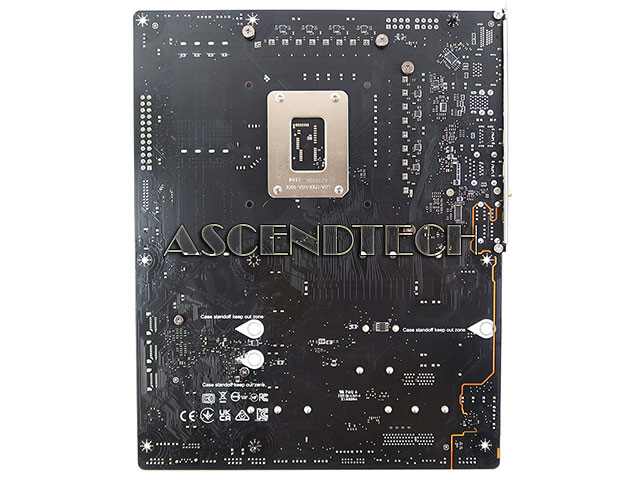

MSI MPG Z790 EDGE WIFI DDR5 MB No I/O
Qty:
Item Code MBDSKMPGZ790EDA
Brand Msi - Microstar
Model MPG Z790 EDGE WIFI
Category Intel Lga1700 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, WI-FI antenna, cables, fan’s bracket, fan’s mounting backplate, or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description
MSI MPG Z790 EDGE WIFI Intel Chipset Z790 Socket LGA1700 DDR5 USB M.2 SATA 6Gb/s Display Port HDMI ATX Desktop Motherboard.
Chipset: Intel Z790
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 4800 / 5000 / 5200 / 5400 / 5600 / 5800 OC / 6000 OC / 6200 OC / 6400 OC / 6600 OC / 6800 OC / 7000 OC / 7200+ OC MHz
Storage Interface: 5x M.2 NVMe; 7x SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe Storage Devices; RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Storage Devices
Network/Communications: Intel 2.5Gbps LAN; Intel Wi-Fi 6E
Audio: Realtek ALC4080 Codec; 7.1-Channel USB High Performance Audio; supports up to 32-Bit/384 kHz playback on front panel
Connectors: 1x ATX Power Connector (ATX_PWR); 2x CPU Power Connector (CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller connector (JDASH); 3x Addressable V2 RGB LED connector (JARGB_V2); 1x RGB LED connector (JRGB); 1x TPM pin header (Support TPM 2.0); 4x USB 2.0 ports; 2x USB 5Gbps Type A ports; 1x USB 10Gbps Type C ports
Input/Output Ports: 1x Display Port; 4x USB 5 Gbps (Type-A); 4x USB 10Gbps (Type-A); 1x 2.5G LAN; 2x Wi-Fi / Bluetooth Antenna Ports; 5x Audio Ports; 1x HDMI; 1x USB 10Gbps (Type-C); 1x USB 20Gbps (Type-C); 1x Optical S/PDIF Out
Expansion Slots: 2x PCI Express x16 Slot; 1x PCI Express x1 Slot (PCI_E1 Gen PCIe 5.0 supports up to x16 from CPU; PCI_E2 Gen PCIe 3.0 supports up to x1 from Chipset; PCI_E3 Gen PCIe 4.0 supports up to x4 from Chipset)
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Support for Windows 11 64-bit, Windows 10 64-bit
