MSI MS-6390 SOCKET 462 AMD MOTHERBOARD
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

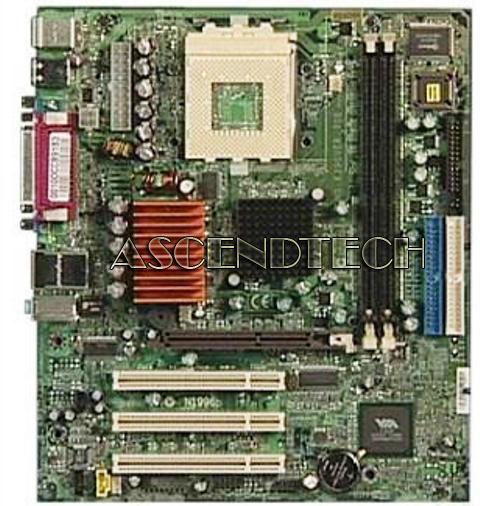

Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Actual product may vary.
Item Code MBA462MSIMS6390
Brand Msi - Microstar
Model MS-6390 CROSSFIRE
Category Amd Socket 462 Athlon / Sempron
Description
MSI MS-6390 Socket A 462 Crossfire GL AMD Motherboard For Athlon XP & Duron Processors (CPU) With Onboard Video Sound & LAN!
Specifications:
| Product: | MSI MS-6390 OEM - Motherboard Only - No I/O Shield (Backplate) |
| Motherboard description | Manufacturer's name - MS-6390 OEM |
| Motherboard supplier | MSI |
| System BIOS supplier | MSI/AWARD |
| Form factor | uATX |
| Processor brand | AMD |
| Processor socket type | Socket A (PGA462) |
| Processor family | Athlon, AthlonXP, Duron |
| Processor FSB frequency | Advanced 266/200MHz |
| Chipset name | KM266 |
| Chipset "North Bridge" | KM266 |
| Chipset "South Bridge" | 8235 |
| Super I/O and revision | Winbond, rev. W83697HF |
| Flash BIOS device | Xbus 2 Mb |
| Memory type | DDR |
| Memory speed | PC2100/PC1600 |
| Memory sockets | Two DDR DIMMs (184-pin) |
| Maximum memory | 1 GB |
| Graphics supplier | VIA-S3 |
| Graphics configuration | Up/Down |
| Onboard graphics memory | UMA 32 MB |
| Graphics connector | AGP 4X |
| TV-out device | No |
| TV-out configuration | No |
| Audio | AC'97 Down |
| AC'97 CODEC device | Realtek ALC650 |
| Audio jacks | Microphone, Line-in, Line-Out, MIDI/Game |
| External audio connectors | No |
| Ethernet 10/100 LAN supplier | VIA VT6103 |
| Ethernet configuration | Integrated, Down |
| IDE UDMA modes | ATA-133/100/66/33 |
| Expansion slots | AGP, Three PCI |
| USB ports | Six USB 2.0 |
| USB Front/Back options | Two front+Four back |
| External ports | One serial, One parallel, One floppy, One PS/2 keyboard, One PS/2 mouse |
| Packaging: | OEM / Motherboard Only - No I/O Shield |
