ATHLON 64 MOTHERBOARD | Msi Ms-7093 S.939 Ddr400 Pci-E X16 Sata

The MS-7093 Motherboard is based on ATi RS480/RX480 and ATi SB400 chipsets for optimal system efficiency. Designed to fit the advanced AMD K8 Athlon 64 FX processor, the MS-7093 delivers a high performance and professional motherboard solution.

Specifications:

Product Type:	OEM - System Builder Motherboard, Backplate (I/O Shield) For Motherboard Is Not Included!
CPU	Supports 64-bit AMD® Athlon™ 64 and Athlon 64 FX processor (Socket 939) Supports up to 3500+, 3800+ Athlon 64 FX 53, or higher CPU
Chipset	ATI® RS480/RX480 Chipset HyperTransport™ connection to AMD K8 Athlon 64 processor 8 or 16 bit control/address/data transfer both directions 1000/800/600/400/200 MHz "Double Data Rate" operation both direction Compliant with PCI Express 1.0a specifications (one ×16 graphics interface, which can be divided into two smaller links for use by other devices) Graphic integrated (RS480) ATI® SB400 Chipset Supports dual channel native SATA controller up to 150MB/s with RAID 0 or RAID 1 or 0+1 Integrated Hardware Sound Blaster/Direct Sound AC97 audio Ultra DMA 66/100/133 master mode PCI EIDE controller ACPI and PC2001 compliant enhanced power management Supports USB 2.0 up to 8 ports
Main Memory	Supports dual channel, eight memory banks DDR 333/400, using four 184-pin DDR DIMMs Expandable to 4 GB without ECC Supports 2.5 V DDR SDRAM DIMMs
Slots	One PCI Express ×16 slot (supports PCI Express Bus specification v1.0a compliant) Three 32-bit Master 3.3 V/5 V PCI Bus slots
Onboard IDE	An IDE controller on the ATI® SB400 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66 operation modes Can connect up to 4 IDE devices
Onboard Serial ATA	Supports 4 SATA ports with up to 150 MB/s transfer rate
USB Interface	8 USB 2.0 ports (4 ports in the rear I/O, 4 ports via the external bracket)
LAN	Realtek® 8100C 10/100 LAN chip Integrated Fast Ethernet MAC and PHY in one chip Supports 10 Mb/s and 100 Mb/s Compliance with PCI v2.2 Supports ACPI Power Management
IEEE 1394 (Optional)	VIA® 6307 IEEE 1394 controller Supports up to two 1394 ports (1 at rear panel, 1 pinheader). Transfer rate is up to 400 Mbps
Audio	RealTek ALC658C 6-channel software audio codec Compliance with AC97 v2.3 Spec. Meets PC2001 audio performance requirement.
On-Board Peripherals	1 floppy port supports 1 FDD with 360 K, 720 K, 1.2 M, 1.44 M and 2.88 Mbytes 1 serial port (optional) 1 VGA port (only for RS480) 1 parallel port supporting SPP/EPP/ECP mode 8 USB 2.0 ports (4 at rear, 4 at front) 1 Audio (Line-In/Line-Out/MIC) port 1 RJ-45 LAN Jack 2 IDE ports support 4 IDE devices 4 serial ATA ports 2 IEEE 1394 (1 at rear, 1 at front) (Optional)
BIOS	The motherboard BIOS provides "Plug and Play" BIOS, which detects the peripheral devices and expansion cards of the board automatically. The motherboard provides a Desktop Management Interface (DMI) function which records the motherboard specifications. Supports boot from LAN, USB Device 1.1 and 2.0, and SATA HDD.
Dimensions	Micro-ATX Form Factor: 9.61 × 9.61 (24.4 cm × 24.4 cm)

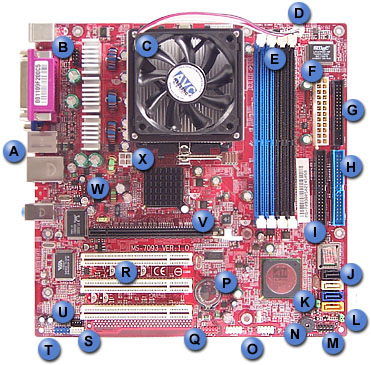

Fan Pictured - Is Not Included - For Detailed Specifications Only!

A	I/O ports	M	Front panel connector
B	Serial COM1 connector	N	Speaker
C	CPU socket	O	USB 2.0 connectors
D	CPU fan connector	P	Battery
E	Memory slots	Q	IEEE 1394 connector
F	ATX power connector	R	PCI slots
G	Floppy disk drive connector	S	AUX Line-In connector
H	Primary IDE connector	T	Front panel audio connector
I	Secondary IDE connector	U	CD-In connector
J	SATA connectors	V	PCI Express ×16 slot
K	Clear CMOS jumper	W	System fan connector
L	Clear BIOS password jumper	X	Auxiliary 12V ATX connector
