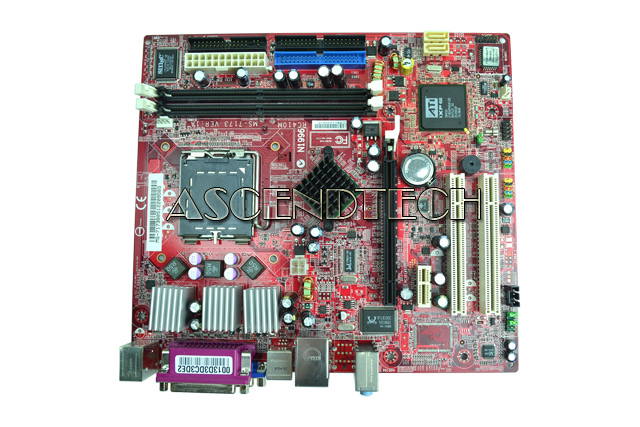

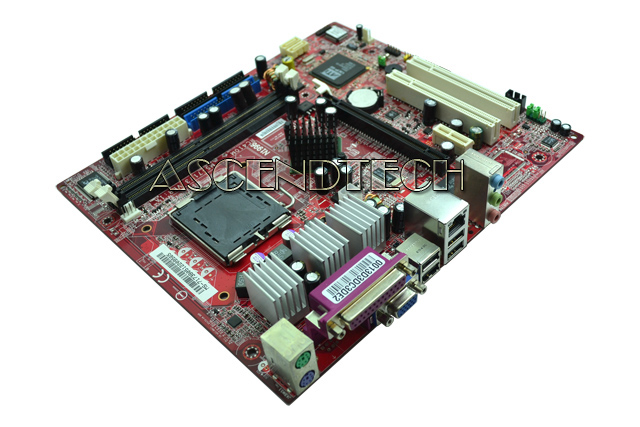

MSI MS-7173 LGA775 800FSB DDR2 SATA MB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Msi Ms-7173 Lga775 800Fsb Ddr2 Sata Mb
  Enlarge
Msi Ms-7173 Lga775 800Fsb Ddr2 Sata Mb
Msi Ms-7173 Lga775 800Fsb Ddr2 Sata Mb
Msi Ms-7173 Lga775 800Fsb Ddr2 Sata Mb
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4MSI775MS7173
Brand Msi - Microstar
Model MS-7173
Category Intel Lga775 Motherboards

Description

MSI MS-7173 LGA775 DDR2 PCI-Express 800Mhz FSB VGA Motherboard. This Motherboard Supports Intel Pentium 4 processors LGA 775 socket. Memory support for DDR2 677/533 MHz single channel DIMMs, expandable up to 2 GB.





*Please note that this is an OEM replacement motherboard, and it does not include Rear I/O Shield (Back-Plate).



Features:

  • ATI RC410 Rev. A12 chipset
  • Supports Intel® Pentium® 4 processors (LGA 775 socket)
  • 800/533 MHz system bus
  • Memory support for DDR2 677/533 MHz single channel DIMMs, expandable up to 2 GB
  • Integrated video
  • Integrated 5.1 audio subsystem
  • Integrated 10/100 LAN
  • Two PCI conventional, one ×16 PCI Express, and one ×1 PCI Express add-in card slots

Specifications:

Form Factor
  • uATX
  • Dimensions: 9.6 × 9.0 inches
    • CPU SupportIntel® Pentium® 4 processors
    Package: LGA 775
    System Bus Support800/533 Mhz
    Memory Support
  • Two DDR2 DIMM slots
  • DDR2 677/533 MHz single channel modules
  • Expandable up to 2 GB
    • MCH (Northbridge)ATI RC410 Rev. A12
    ICH (Southbridge)ATI SB450 Rev. A13
    Firmware Hub4 MB LPC Flash ROM
    Integrated LANRealtek RT8100C co-layout RTL8110S
    Integrated Audio
  • Interface: AC97 5.1 channels
  • Model: Realtek ALC655
    • Serial Input/Output (SIO)SMSC 47M997
    Add-In Card Slots
  • One PCI Express ×16 (graphics interface)
  • One PCI Express ×1
  • Two PCI conventional

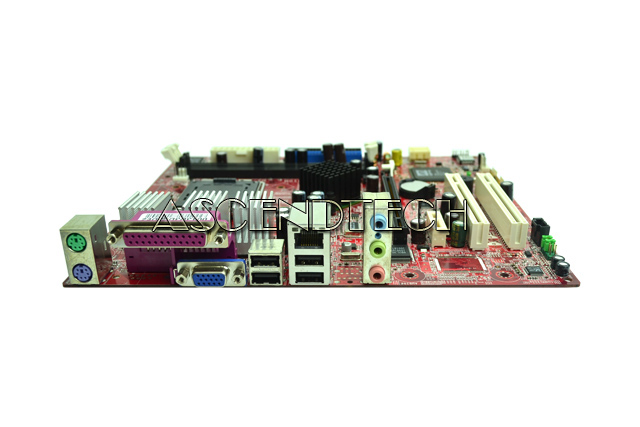

    • Rear Panel I/O Ports
  • Four USB 2.0
  • Two PS/2 (keyboard/mouse)
  • One parallel
  • One VGA monitor
  • Three analog audio jacks
  • One RJ-45 LAN connector
    • Internal Headers
  • Two 2-port USB 2.0 headers (2 × 5)
  • Front panel audio header (mic / headphone) (2 × 5)
  • Front panel header (2 × 5 supports power LED, power switch, hard drive LED, and reset switch)
  • Floppy disk drive connector
  • Primary IDE connector
  • Secondary IDE connector
  • Two Serial ATA connectors
  • Chassis Intrusion Header
  • Main Power Connector 24-pin
  • Auxiliary 12V CPU power connector 4-pin
  • CPU fan header
  • Rear fan header



    •
