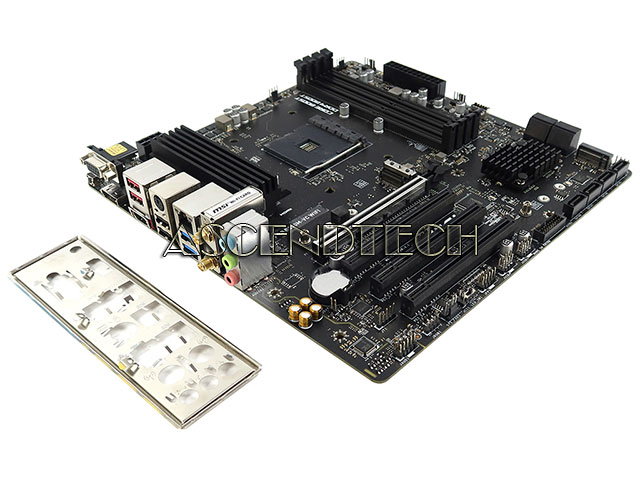

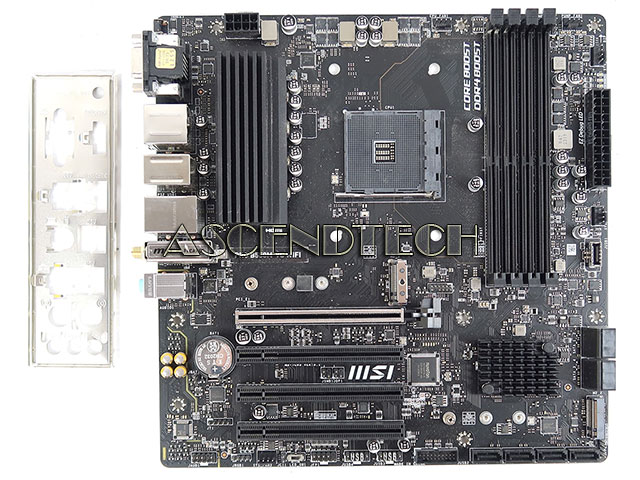

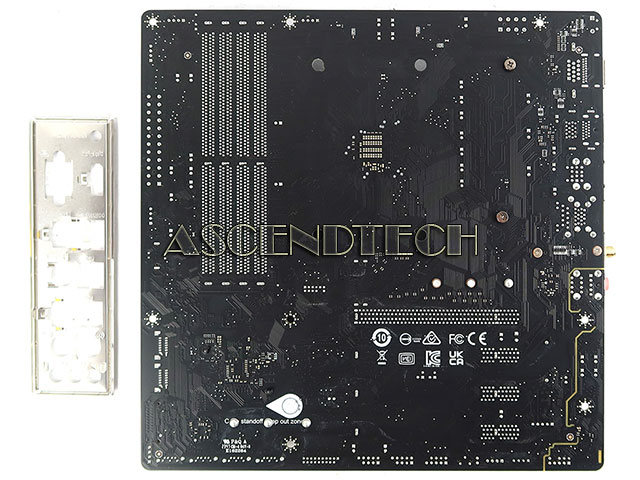

MSI PRO B550M-VC WIFI AM4 Motherboard
Qty:
Item Code MBDSKPROB550MA1
Brand Msi - Microstar
Model PRO B550M-VC WIFI
Category Amd Socket Am4 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with an I/O shield only and does not include an M.2 Shield Frozr, Wi-Fi antenna, cables, fan bracket, CPU cooler backplate, or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description
MSI PRO B550M-VC WIFI AMD Chipset B550 Socket AM4 DDR4 M.2 NVMe SATA 6Gb/s VGA DisplayPort HDMI Micro-ATX Desktop Motherboard.
Chipset: AMD B550
Socket: AMD AM4
Compatible/Supported CPU: AMD Ryzen 3rd Gen Processors, and future AMD Ryzen Processors with BIOS update
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 1866MHz / 2133MHz / 2400MHz / 2667MHz / 2800MHz / 2933MHz / 3000MHz / 3066MHz / 3200MHz by JEDEC; 2667MHz / 2800MHz / 2933MHz / 3000MHz / 3066MHz / 3200MHz / 3466MHz / 3600MHz / 3733MHz / 3866MHz / 4000MHz / 4133MHz / 4266MHz / 4400+MHz by A-XMP OC MODE
Storage Interface: 2x M.2 NVMe; 4x SATA 6Gb/s
RAID Support: RAID 0 and RAID 1 for M.2 NVMe Storage Devices; RAID 0, RAID 1 and RAID 10 for SATA Storage Devices
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 802.11 a/b/g/n/ac/ax
Network/Communications: Realtek 8RTL8111GN / RTL8111HN 1Gbps LAN; AMD Wi-Fi 6E
Audio: Realtek ALC892/ALC897 Codec; 7.1-Channel High Definition Audio
Connectors: 1x 24-pin ATX Main Power Connector; 1x 8-pin ATX 12V Power Connector; 8x SATA 6Gb/s Connectors; 2x M.2 slots (M-Key); 1x USB 3.2 Gen 1 5Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps Connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU Fan Connector; 1x 4-pin Water-Pump Fan Connector; 3x 4-pin System Fan Connectors; 1x Front Panel Audio Connector; 2x System Panel Connectors; 1x Chassis Intrusion Connector; 1x 4-pin RGB LED Connector; 1x 3-pin RAINBOW LED Connector; 1x TPM module Connector; 1x Clear CMOS Jumper
Input/Output Ports: 1x VGA; 2x USB 3.2 Gen 2 10 Gbps Type-A; 1x PS/2 Keyboard / Mouse; 1x LAN Port; 2x WiFi / Bluetooth Antenna Ports; 3x Audio Connector; 1x DisplayPort; 1x HDMI 2.1; 2x USB 2.0; 2x USB 3.2 Gen1 5 Gbps Type-A
Expansion Slots: 1x PCI Express 3.0 / 4.0 x16; 3x PCI Express 3.0 x16 slots Support x1 Speed
Form Factor: Micro-ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11 64-bit; Windows 10 64-bit
Additional Specifications:
-Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors;
-Supports DDR4 Memory, up to 4400(OC) MHz;
-Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr;
-Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works;
-Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost;
-Audio Boost: Reward your ears with studio grade sound quality;
-Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
Supported processors:
Processor | Core Name | CPU | FSB | CPU Speed | L2 | L3 | Stepping | Wattage | GPU |
| Ryzen 9 | Vermeer | 5950X | 100 | 3.4GHz | 8MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Vermeer | 5950X | 100 | 3.4GHz | 8MB | 64MB | B2 | 105 | N/A |
| Ryzen 9 | Vermeer | 5900XT | 100 | 3.3GHz | 8MB | 64MB | B2 | 105 | N/A |
| Ryzen 9 | Vermeer | 5900X | 100 | 3.7GHz | 6MB | 64MB | B2 | 105 | N/A |
| Ryzen 9 | Vermeer | 5900X | 100 | 3.7GHz | 6MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Vermeer | 5900 | 100 | 3.0GHz | 6MB | 64MB | B2 | 65 | N/A |
| Ryzen 7 | Vermeer | 5800X3D | 100 | 3.4GHz | 4MB | 96MB | B2 | 105 | N/A |
| Ryzen 7 | Vermeer | 5800XT | 100 | 3.8GHz | 4MB | 32MB | B2 | 105 | N/A |
| Ryzen 7 | Vermeer | 5800X | 100 | 3.8GHz | 4MB | 32MB | B0 | 105 | N/A |
| Ryzen 7 | Vermeer | 5800X | 100 | 3.8GHz | 4MB | 32MB | B2 | 105 | N/A |
| Ryzen 7 | Vermeer | 5800 | 100 | 3.4GHz | 4MB | 32MB | B2 | 65 | N/A |
| Ryzen 7 | Cezanne | PRO 5755GE | 100 | 3.2GHz | 4MB | 16MB | A0 | 35 | AMDRadeon(TM)Graphics |
| Ryzen 7 | Cezanne | PRO 5755G | 100 | 3.8GHz | 4MB | 16MB | A0 | 65 | AMDRadeon(TM)Graphics |
| Ryzen 7 | Cezanne | PRO 5750GE | 100 | 3.2GHz | 4MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 7 | Cezanne | PRO 5750G | 100 | 3.8GHz | 4MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Vermeer | 5700X3D | 100 | 3.0GHz | 4MB | 96MB | B2 | 105 | N/A |
| Ryzen 7 | Vermeer | 5700X | 100 | 3.4GHz | 4MB | 32MB | B2 | 65 | N/A |
| Ryzen 7 | Cezanne | 5700GE | 100 | 3.2GHz | 4MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 7 | Cezanne | 5700G | 100 | 3.8GHz | 4MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Cezanne | 5700 | 100 | 3.7GHz | 4MB | 16MB | A0 | 65 | N/A |
| Ryzen 5 | Cezanne | PRO 5655GE | 100 | 3.4GHz | 3MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | PRO 5655G | 100 | 3.9GHz | 3MB | 16MB | A0 | 65 | AMDRadeon(TM)Graphics |
| Ryzen 5 | Cezanne | PRO 5650GE | 100 | 3.4GHz | 3MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | PRO 5650G | 100 | 3.9GHz | 3MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Vermeer | 5600X3D | 100 | 3.3GHz | 3MB | 96MB | B2 | 105 | N/A |
| Ryzen 5 | Vermeer | 5600XT | 100 | 3.7GHz | 3MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Vermeer | 5600X | 100 | 3.7GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Vermeer | 5600X | 100 | 3.7GHz | 3MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Vermeer | 5600T | 100 | 3.5GHz | 3MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Cezanne | 5600GT | 100 | 3.6GHz | 3MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | 5600GE | 100 | 3.4GHz | 3MB | 16MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | 5600G | 100 | 3.9GHz | 3MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Vermeer | 5600F | 100 | 3.0GHz | 3MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Vermeer | 5600 | 100 | 3.5GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Vermeer | 5500X3D | 100 | 3.0GHz | 3MB | 96MB | B2 | 105 | N/A |
| Ryzen 5 | Cezanne | 5500GT | 100 | 3.6GHz | 3MB | 16MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Cezanne | 5500 | 100 | 3.6GHz | 3MB | 16MB | A0 | 65 | N/A |
| Ryzen 3 | Cezanne | PRO 5355GE | 100 | 3.6GHz | 2MB | 8MB | A0 | 35 | AMDRadeon(TM)Graphics |
| Ryzen 3 | Cezanne | PRO 5355G | 100 | 4.0GHz | 2MB | 8MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | PRO 5350GE | 100 | 3.6GHz | 2MB | 8MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | PRO 5350G | 100 | 4.0GHz | 2MB | 8MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | 5300GE | 100 | 3.6GHz | 2MB | 8MB | A0 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | 5300G | 100 | 4.0GHz | 2MB | 8MB | A0 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Cezanne | 5100 | 100 | 3.8GHz | 2MB | 8MB | A0 | 65 | N/A |
| Ryzen 7 | Renoir | PRO 4750GE | 100 | 3.1GHz | 4MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 7 | Renoir | PRO 4750G | 100 | 3.6GHz | 4MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Renoir | 4700GE | 100 | 3.1GHz | 4MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 7 | Renoir | 4700G | 100 | 3.6GHz | 4MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | PRO 4655GE | 100 | 3.3GHz | 3MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | PRO 4655G | 100 | 3.7GHz | 3MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | PRO 4650GE | 100 | 3.3GHz | 3MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | PRO 4650G | 100 | 3.7GHz | 3MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | 4600GE | 100 | 3.3GHz | 3MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | 4600G | 100 | 3.7GHz | 3MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Renoir | 4500 | 100 | 3.6GHz | 3MB | 8MB | A1 | 65 | N/A |
| Ryzen 3 | Renoir | PRO 4355GE | 100 | 3.5GHz | 4MB | 8MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | PRO 4355G | 100 | 3.8GHz | 2MB | 4MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | PRO 4350GE | 100 | 3.5GHz | 2MB | 4MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | PRO 4350G | 100 | 3.8GHz | 2MB | 4MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | 4300GE | 100 | 3.5GHz | 2MB | 4MB | A1 | 35 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | 4300G | 100 | 3.8GHz | 3MB | 8MB | A1 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Renoir | 4100 | 100 | 3.8GHz | 2MB | 4MB | A1 | 65 | N/A |
| Ryzen 9 | Matisse | 3950X | 100 | 3.5GHz | 8MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Matisse | PRO 3900 | 100 | 3.1GHz | 6MB | 64MB | B0 | 65 | N/A |
| Ryzen 9 | Matisse | 3900XT | 100 | 3.8GHz | 6MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Matisse | 3900X | 100 | 3.8GHz | 6MB | 64MB | B0 | 105 | N/A |
| Ryzen 9 | Matisse | 3900 | 100 | 3.1GHz | 6MB | 64MB | B0 | 65 | N/A |
| Ryzen 7 | Matisse | 3800XT | 100 | 3.9GHz | 4MB | 32MB | B0 | 105 | N/A |
| Ryzen 7 | Matisse | 3800X | 100 | 3.9GHz | 4MB | 32MB | B0 | 105 | N/A |
| Ryzen 7 | Matisse | PRO 3700 | 100 | 3.6GHz | 4MB | 32MB | B0 | 65 | N/A |
| Ryzen 7 | Matisse | 3700X | 100 | 3.6GHz | 4MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Matisse | PRO 3600 | 100 | 3.6GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Matisse | 3600XT | 100 | 3.8GHz | 3MB | 32MB | B0 | 95 | N/A |
| Ryzen 5 | Matisse | 3600X | 100 | 3.8GHz | 3MB | 32MB | B0 | 95 | N/A |
| Ryzen 5 | Matisse | 3600 | 100 | 3.6GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Matisse | 3500X | 100 | 3.6GHz | 3MB | 32MB | B0 | 65 | N/A |
| Ryzen 5 | Matisse | 3500 | 100 | 3.6GHz | 3MB | 16MB | B0 | 65 | N/A |
| Ryzen 3 | Matisse | 3300X | 100 | 3.8GHz | 2MB | 16MB | B0 | 65 | N/A |
| Ryzen 3 | Matisse | 3100 | 100 | 3.6GHz | 2MB | 16MB | B0 | 65 | N/A |
