MSI PRO B650-VC WIFI III AM5 DDR5 ATX MB
Qty:
Item Code MBDSKPROB650V3A
Brand Msi - Microstar
Model PRO B650-VC WIFI III
Part Number 601-7E18-020
Compatible Part Numbers 7E18-020 7E18/020 07E1810_O31E726351
Category Amd Socket Am5 Motherboard
Condition Like New Grade A

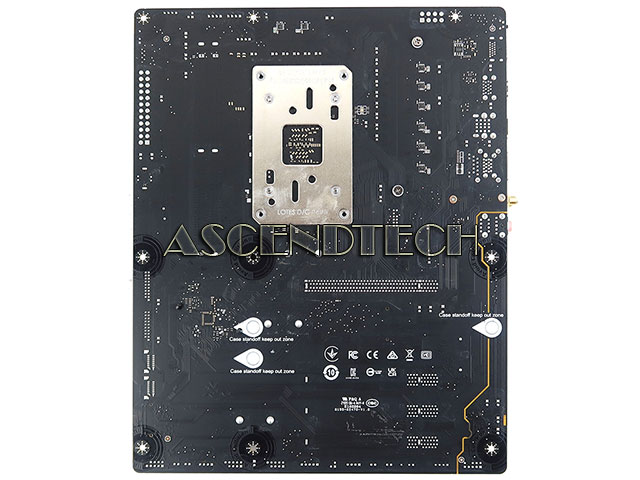

Condition Description Please note, this motherboard comes with a CPU cooler backplate only and does not include an I/O shield, a Wi-Fi antenna, a fan bracket, cables, or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description

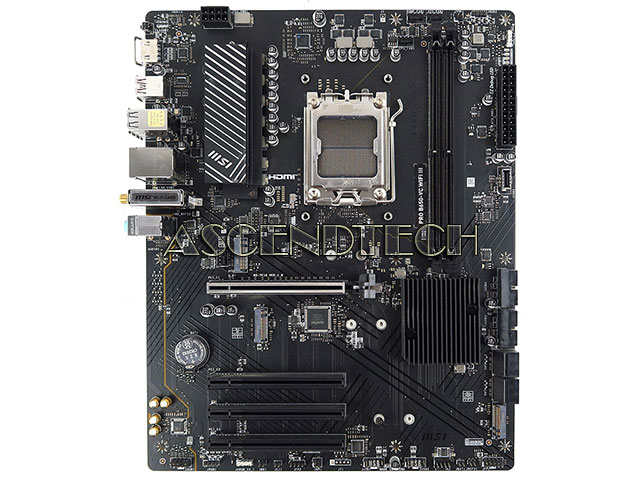

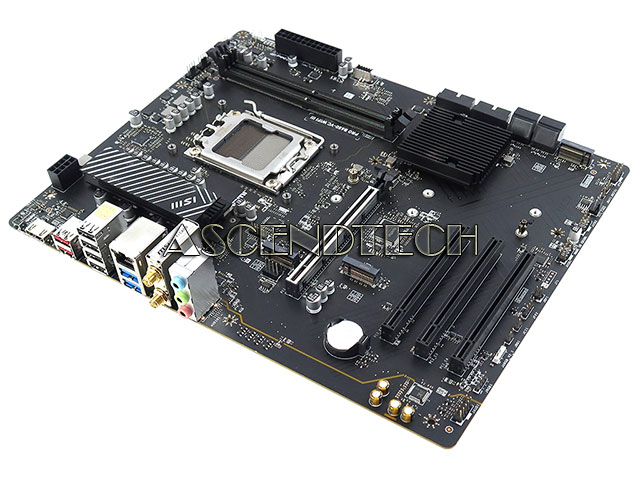

MSI PRO B650-VC WIFI III AMD Chipset B650 Socket AM5 DDR5 M.2 SATA 6Gb/s HDMI ATX Desktop Motherboard 601-7E18-020.
Chipset: AMD B650
Socket: AMD AM5
Compatible/Supported CPU: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Max Supported Memory: 128GB
Number of Memory Slots: 2
Memory Type: DDR5 SDRAM
Speed: 7800+MHz (OC) / 7600MHz (OC) / 7400MHz (OC) / 7200MHz (OC) / 7000MHz (OC) / 6800MHz (OC) / 6600MHz (OC) / 6400MHz (OC) / 6200MHz (OC) / 6000MHz (OC) / 5800MHz (OC) / 5600MHz (JEDEC) / 5400MHz (JEDEC) / 5200MHz (JEDEC) / 5000MHz (JEDEC) / 4800MHz (JEDEC)
Storage Interface: 3x M.2 NVMe; 4x SATA 6Gb/s
RAID Support: RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices; RAID 0, RAID 1 and RAID 10 for SATA storage devices
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: 802.11 a/b/g/n/ac/ax
Network/Communications: Realtek 8111H Gigabit LAN; AMD Wi-Fi 6E
Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Connectors: 1x ATX Power Connector (ATX_PWR); 1x CPU Power Connector (CPU_PWR); 1x CPU Fan; 1x Pump Fan; 3x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 2x Addressable V2 RGB LED Connector (JARGB_V2); 2x RGB LED Connector (JRGB); 1x TPM Pin Header (Support TPM 2.0); 8x USB 2.0 Ports; 6x USB 5 Gbps Type A Ports; 1x USB 5 Gbps Type C Ports; 2x USB 10 Gbps Type A Ports
Input/Output Ports: 1x HDMI; 2x USB 3.2 Gen 2 10Gbps (Type-A); 4x USB 2.0; 1x LAN Port; 2x Wi-Fi / Bluetooth Antenna Ports; 3x Audio Connectors; 2x USB 3.2 Gen 1 5Gbps (Type-A)
Expansion Slots: 4x PCI-Express x16 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit; Windows 11 64-bit
Additional Specifications:
Supported processors:
Processor | Core Name | CPU No | FSB | CPU Speed | L2 | L3 | Stepping | Wattage | GPU |
| Ryzen 9 | Granite Ridge | Ryzen 9 9950X3D2 | 100 | 4.3GHz | 16MB | 192MB | B0 | 200 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 9950X3D | 100 | 4.3GHz | 16MB | 128MB | B0 | 170 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 9950X | 100 | 4.3GHz | 16MB | 64MB | B0 | 170 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 PRO 9945 | 100 | 3.4GHz | 12MB | 64MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 9900X3D | 100 | 4.4GHz | 12MB | 128MB | B0 | 120 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 9900X | 100 | 4.4GHz | 12MB | 64MB | B0 | 120 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7950X3D | 100 | 4.2GHz | 16MB | 128MB | B2 | 120 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7950X | 100 | 4.5GHz | 16MB | 64MB | B2 | 170 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 PRO 7945 | 100 | 3.7GHz | 12MB | 64MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7900X3D | 100 | 4.4GHz | 12MB | 128MB | B2 | 120 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7900X | 100 | 4.7GHz | 12MB | 64MB | B2 | 170 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7900 | 100 | 3.7GHz | 12MB | 64MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 9850X3D | 100 | 4.7GHz | 8MB | 96MB | B0 | 120 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 9800X3D | 100 | 4.7GHz | 8MB | 96MB | B0 | 120 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 PRO 9745 | 100 | 3.8GHz | 8MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 9700X | 100 | 3.8GHz | 8MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 9700F | 100 | 3.8GHz | 8MB | 32MB | B1 | 65 | N/A |
| Ryzen 7 | Phoenix | Ryzen 7 PRO 8700GE | 100 | 3.65GHz | 8MB | 16MB | A2 | 35 | AMDRadeon780MGraphics |
| Ryzen 7 | Phoenix | Ryzen 7 PRO 8700G | 100 | 4.2GHz | 8MB | 16MB | A2 | 65 | AMDRadeon780MGraphics |
| Ryzen 7 | Phoenix | Ryzen 7 8700G | 100 | 4.2GHz | 8MB | 16MB | A2 | 65 | AMDRadeon780MGraphics |
| Ryzen 7 | Phoenix | Ryzen 7 8700F | 100 | 4.1GHz | 8MB | 16MB | A2 | 65 | N/A |
| Ryzen 7 | Raphael | Ryzen 7 7800X3D | 100 | 4.2GHz | 8MB | 96MB | B2 | 120 | AMDRadeonGraphics |
| Ryzen 7 | Raphael | Ryzen 7 PRO 7745 | 100 | 3.8GHz | 8MB | 32MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Raphael | Ryzen 7 7700X | 100 | 4.5GHz | 8MB | 32MB | B2 | 105 | AMDRadeonGraphics |
| Ryzen 7 | Raphael | Ryzen 7 7700 | 100 | 3.8GHz | 8MB | 32MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Granite Ridge | Ryzen 5 PRO 9645 | 100 | 3.9GHz | 6MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Granite Ridge | Ryzen 5 9600X | 100 | 3.9GHz | 6MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Granite Ridge | Ryzen 5 9600 | 100 | 3.8GHz | 6MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Granite Ridge | Ryzen 5 9500F | 100 | 3.8GHz | 6MB | 32MB | B1 | 65 | N/A |
| Ryzen 5 | Phoenix | Ryzen 5 PRO 8600GE | 100 | 3.9GHz | 6MB | 16MB | A2 | 35 | AMDRadeon760MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 PRO 8600G | 100 | 4.35GHz | 6MB | 16MB | A2 | 65 | AMDRadeon760MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 8600G | 100 | 4.35GHz | 6MB | 16MB | A2 | 65 | AMDRadeon760MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 PRO 8500GE | 100 | 3.4GHz | 6MB | 16MB | A0 | 35 | AMDRadeon740MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 PRO 8500G | 100 | 3.55GHz | 6MB | 16MB | A0 | 65 | AMDRadeon740MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 8500GE | 100 | 3.4GHz | 6MB | 16MB | A0 | 35 | AMDRadeon740MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 8500G | 100 | 3.55GHz | 6MB | 16MB | A0 | 65 | AMDRadeon740MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 8400F | 100 | 4.2GHz | 6MB | 16MB | A2 | 65 | N/A |
| Ryzen 5 | Raphael | Ryzen 5 PRO 7645 | 100 | 3.8GHz | 6MB | 32MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7600X3D | 100 | 4.1GHz | 6MB | 96MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7600X | 100 | 4.7GHz | 6MB | 32MB | B2 | 105 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7600 | 100 | 3.8GHz | 6MB | 32MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7500X3D | 100 | 4.0GHz | 6MB | 96MB | B3 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7500F | 100 | 3.7GHz | 6MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Raphael | Ryzen 5 PRO 7445 | 100 | 3.3GHz | 6MB | 16MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7400F | 100 | 3.7GHz | 6MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Raphael | Ryzen 5 7400 | 100 | 3.3GHz | 6MB | 16MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Phoenix | Ryzen 3 PRO 8300GE | 100 | 3.5GHz | 4MB | 8MB | A0 | 35 | AMDRadeon740MGraphics |
| Ryzen 3 | Phoenix | Ryzen 3 PRO 8300G | 100 | 3.45GHz | 4MB | 8MB | A0 | 65 | AMDRadeon740MGraphics |
| Ryzen 3 | Phoenix | Ryzen 3 8300GE | 100 | 3.5GHz | 4MB | 8MB | A0 | 35 | AMDRadeon740MGraphics |
| Ryzen 3 | Phoenix | Ryzen 3 8300G | 100 | 3.45GHz | 4MB | 8MB | A0 | 65 | AMDRadeon740MGraphics |
