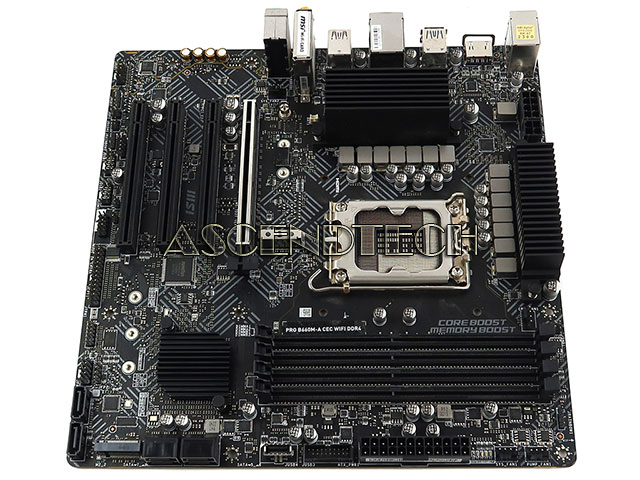

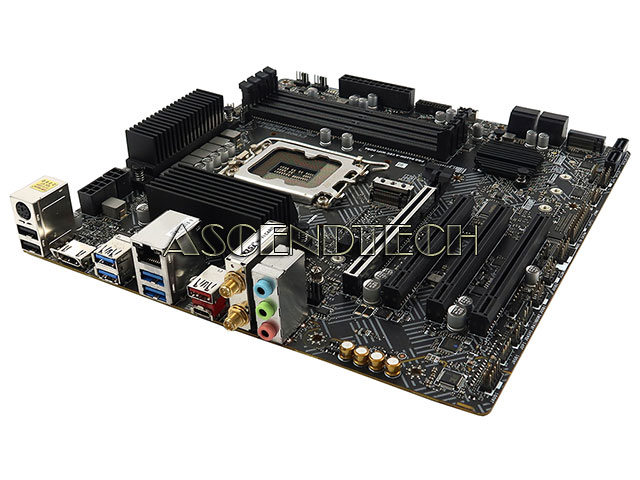

MSI PRO B660M-A CEC WIFI DDR4 Intel Chipset B660 Socket LGA1700 DDR4 HDMI SATA 6Gb/s Micro-ATX Desktop Motherboard.
Chipset: Intel B660 (SRKZX)
Socket: Intel LGA1700
Compatible/Supported CPU: Intel Core 14th & 13th Gen, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Speed: 5333MHz(O.C.)/4000+MHz(O.C.)/3600+MHz(O.C.)/3200MHz2666MHz/2400MHz/2133MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: 802.11ax WLAN
Network/Communications: Realtek 8125BG 2.5Gbps LAN
Audio: Realtek ALC897 Codec
Connectors: 1x Keyboard / Mouse, 1x LAN port, 1x USB 3.2 Gen 2 10Gbps Type-A, 2x Wi-Fi / Bluetooth, 3x Audio connectors, 2x USB 2.0, 1x HDMI, 4x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C
Input/Output Ports: 1x 24-pin ATX main power, 1x 8-pin ATX 12V power, 1x 4-pin ATX 12V power, 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps, 2x USB 2.0, 1x 4-pin CPU fan, 1x 4-pin water-pump fan, 2x 4-pin system fan, 1x Front panel audio, 2x System panel, 1x Parallel port, 1x Serial port, 1x Chassis Intrusion, 1x Clear CMOS jumper, 1x TPM module, 1x Tuning controller
Expansion Slots: 6x SATA 6Gb/s ports, 2x M.2 slots (Key M), 1x PCIe 4.0 x16, 3x PCIe 3.0 x16 (x1 mode)
Form Factor: Micro-ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 / 11 64-bit
Additional Specifications:
Special Features
-Core Boost : With premium layout and digital power design to support more cores and provide better performance
-Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
-Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
-Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
-2.5G LAN and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
-Audio Boost: Reward your ears with studio grade sound quality
