PRO B660M-A CEC WIFI DDR4 | Msi Pro B660m-A Cec Wifi V2 Mb No I/O

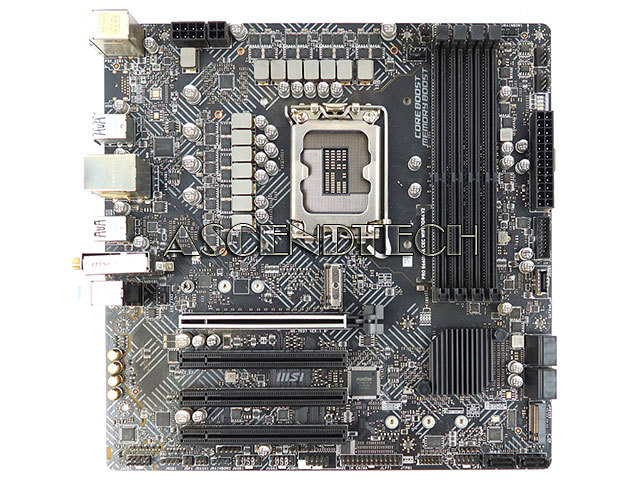

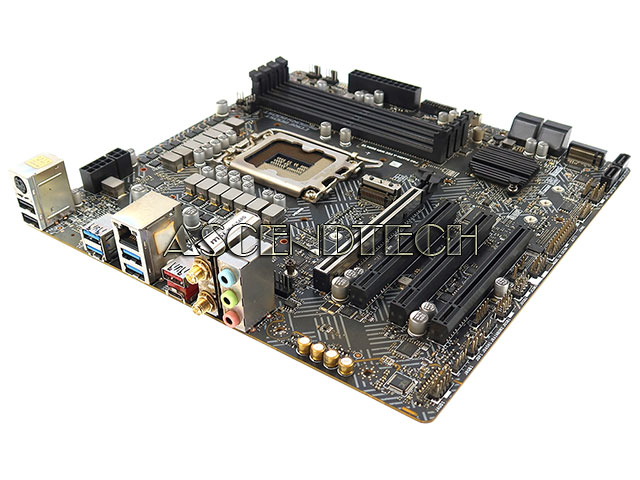

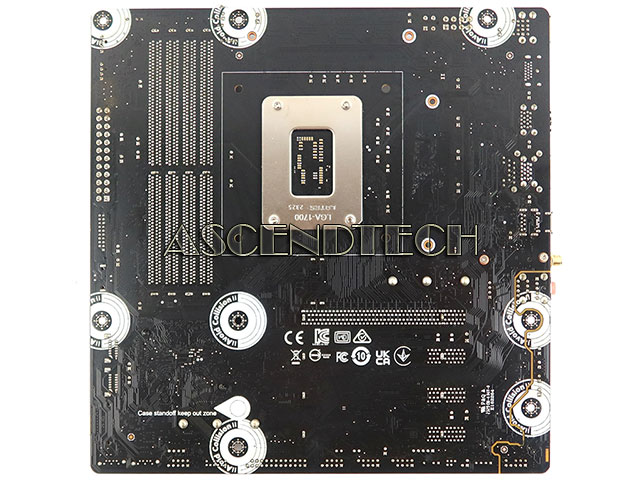

MSI PRO B660M-A CEC WIFI DDR4 V2 Intel Chipset B660 Socket LGA1700 DDR4 M.2 SATA 6Gb/s Micro-ATX Desktop Motherboard.

Chipset: Intel B660

Socket: Intel LGA1700

Compatible/Supported CPU: Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold and Celeron Processors

Max Supported Memory: 128GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Speed: 5200MHz / 5066MHz / 5000MHz / 4800MHz / 4600MHz / 4533MHz / 4400MHz / 4266MHz / 4000MHz / 3866MHz / 3733MHz / 3600MHz / 3466MHz / 3333MHz (O.C.) / 3200MHz/ 3000MHz / 2933MHz / 2800MHz / 2666MHz / 2400MHz / 2133MHz (By JEDCE & POR)

Storage Interface: 2x M.2 NVMe; 6x SATA 6Gb/s

RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Bluetooth Standard: Bluetooth 5.3

Wireless Lan Support: 802.11 a/b/g/n/ac/ax

Network/Communications: Realtek 8125BG 2.5 Gbps LAN; Intel Wi-Fi 6E

Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio

Connectors: 1x ATX Power Connector (ATX_PWR); 2x CPU Power Connector (CPU_PWR); 1x CPU Fan; 1x Pump Fan; 2x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Printer Port (JLPT); 1x Com Port (JCOM); 1x Tuning Controller Connector (JDASH); 2x Addressable RGB LED Connector (JRAINBOW); 1x RGB LED Connector (JRGB); 1x TPM Pin Header (Support TPM 2.0); 4x USB 2.0 Ports; 2x USB 5 Gbps Type A Ports; 1x USB 5 Gbps Type C Ports

Input/Output Ports: 1x PS/2 Keyboard / Mouse; 1x 2.5G LAN; 1x USB 3.2 Gen 2 10Gbps (Type-A); 2x Wi-Fi / Bluetooth Antenna Ports; 3x Audio Connectors; 2x USB 2.0; 4x USB 3.2 Gen 1 5Gbps (Type-A); 1x USB 3.2 Gen 2 10Gbps (Type-C)

Expansion Slots: 4x PCI-Express x16 slot

Form Factor: Micro-ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit; Windows 11 64-bit

Additional Specifications:

-High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material;
-Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2;
-Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds;
-2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection;
-AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Supported processors:

Processor	Core Name	CPU No	FSB	CPU Speed	L2	L3	Stepping	Wattage	GPU
Core i9	Raptorlake Refresh	i9-14900T	100	1.1GHz	32MB	36MB	B0	35	UHDGraphics770
Core i9	Raptorlake Refresh	i9-14900KS	100	3.2GHz	32MB	36MB	B0	150	UHDGraphics770
Core i9	Raptorlake Refresh	i9-14900KF	100	3.2GHz	32MB	36MB	B0	125	N/A
Core i9	Raptorlake Refresh	i9-14900K	100	3.2GHz	32MB	36MB	B0	125	UHDGraphics770
Core i9	Raptorlake Refresh	i9-14900F	100	2.0GHz	32MB	36MB	B0	65	N/A
Core i9	Raptorlake Refresh	i9-14900	100	2.0GHz	32MB	36MB	B0	65	UHDGraphics770
Core i7	Raptorlake Refresh	i7-14790F	100	2.1GHz	24MB	36MB	B0	65	N/A
Core i7	Raptorlake Refresh	i7-14700T	100	1.3GHz	28MB	33MB	B0	35	UHDGraphics770
Core i7	Raptorlake Refresh	i7-14700KF	100	3.4GHz	28MB	33MB	B0	125	N/A
Core i7	Raptorlake Refresh	i7-14700K	100	3.4GHz	28MB	33MB	B0	125	UHDGraphics770
Core i7	Raptorlake Refresh	i7-14700F	100	2.1GHz	28MB	33MB	B0	65	N/A
Core i7	Raptorlake Refresh	i7-14700	100	2.1GHz	28MB	33MB	B0	65	UHDGraphics770
Core i5	Raptorlake Refresh	i5-14600T	100	1.8GHz	20MB	24MB	B0	35	UHDGraphics770
Core i5	Raptorlake Refresh	i5-14600KF	100	3.5GHz	20MB	24MB	B0	125	N/A
Core i5	Raptorlake Refresh	i5-14600K	100	3.5GHz	20MB	24MB	B0	125	UHDGraphics770
Core i5	Raptorlake Refresh	i5-14600	100	2.7GHz	20MB	24MB	B0	65	UHDGraphics770
Core i5	Raptorlake Refresh	i5-14500T	100	1.7GHz	11.5MB	24MB	C0	35	UHDGraphics770
Core i5	Raptorlake Refresh	i5-14500	100	2.6GHz	11.5MB	24MB	C0	65	UHDGraphics770
Core i5	Raptorlake Refresh	i5-14490F	100	2.8GHz	9.5MB	24MB	C0	65	N/A
Core i5	Raptorlake Refresh	i5-14400T	100	1.5GHz	9.5MB	20MB	C0	35	UHDGraphics730
Core i5	Raptorlake Refresh	i5-14400F	100	2.5GHz	9.5MB	20MB	B0	65	N/A
Core i5	Raptorlake Refresh	i5-14400F	100	2.5GHz	9.5MB	20MB	C0	65	N/A
Core i5	Raptorlake Refresh	i5-14400	100	2.5GHz	9.5MB	20MB	B0	65	UHDGraphics730
Core i5	Raptorlake Refresh	i5-14400	100	2.5GHz	9.5MB	20MB	C0	65	UHDGraphics730
Core i3	Raptorlake Refresh	i3-14100T	100	2.7GHz	5MB	12MB	H0	35	UHDGraphics730
Core i3	Raptorlake Refresh	i3-14100F	100	3.5GHz	5MB	12MB	H0	58	N/A
Core i3	Raptorlake Refresh	i3-14100	100	3.5GHz	5MB	12MB	H0	60	UHDGraphics730
N/A	Raptorlake Refresh	300T	100	3.4GHz	2.5MB	6MB	H0	35	UHDGraphics710
N/A	Raptorlake Refresh	300	100	3.9GHz	2.5MB	6MB	H0	46	UHDGraphics710
Core i9	Raptorlake	i9-13900T	100	1.1GHz	32MB	36MB	B0	35	UHDGraphics770
Core i9	Raptorlake	i9-13900KS	100	3.2GHz	32MB	36MB	B0	150	UHDGraphics770
Core i9	Raptorlake	i9-13900KF	100	3.00GHz	32MB	36MB	B0	125	N/A
Core i9	Raptorlake	i9-13900K	100	3.00GHz	32MB	36MB	B0	125	UHDGraphics770
Core i9	Raptorlake	i9-13900F	100	2.00GHz	32MB	36MB	B0	65	N/A
Core i9	Raptorlake	i9-13900	100	2.00GHz	32MB	36MB	B0	65	UHDGraphics770
Core i7	Raptorlake	i7-13790F	100	2.1GHz	24MB	33MB	B0	65	N/A
Core i7	Raptorlake	i7-13700T	100	1.4GHz	24MB	30MB	B0	35	UHDGraphics770
Core i7	Raptorlake	i7-13700KF	100	3.4GHz	24MB	30MB	B0	125	N/A
Core i7	Raptorlake	i7-13700K	100	3.4GHz	24MB	30MB	B0	125	UHDGraphics770
Core i7	Raptorlake	i7-13700F	100	2.1GHz	24MB	30MB	B0	65	N/A
Core i7	Raptorlake	i7-13700	100	2.1GHz	24MB	30MB	B0	65	UHDGraphics770
Core i5	Raptorlake	i5-13600T	100	1.8GHz	11.5MB	24MB	C0	35	UHDGraphics770
Core i5	Raptorlake	i5-13600KF	100	3.5GHz	20MB	24MB	B0	125	N/A
Core i5	Raptorlake	i5-13600K	100	3.5GHz	20MB	24MB	B0	125	UHDGraphics770
Core i5	Raptorlake	i5-13600	100	2.7GHz	11.5MB	24MB	C0	65	UHDGraphics770
Core i5	Raptorlake	i5-13500T	100	1.6GHz	11.5MB	24MB	C0	35	UHDGraphics770
Core i5	Raptorlake	i5-13500	100	2.5GHz	11.5MB	24MB	C0	65	UHDGraphics770
Core i5	Raptorlake	i5-13490F	100	2.5GHz	9.5MB	24MB	C0	65	N/A
Core i5	Raptorlake	i5-13400T	100	1.3GHz	9.5MB	20MB	C0	35	UHDGraphics730
Core i5	Raptorlake	i5-13400F	100	2.5GHz	9.5MB	20MB	B0	65	N/A
Core i5	Raptorlake	i5-13400F	100	2.5GHz	9.5MB	20MB	C0	65	N/A
Core i5	Raptorlake	i5-13400	100	2.5GHz	9.5MB	20MB	B0	65	UHDGraphics730
Core i5	Raptorlake	i5-13400	100	2.5GHz	9.5MB	20MB	C0	65	UHDGraphics730
Core i3	Raptorlake	i3-13100T	100	2.5GHz	5MB	12MB	H0	35	UHDGraphics730
Core i3	Raptorlake	i3-13100F	100	3.4GHz	5MB	12MB	H0	58	N/A
Core i3	Raptorlake	i3-13100	100	3.4GHz	5MB	12MB	H0	60	UHDGraphics730
Core i9	Alderlake	i9-12900T	100	1.4GHz	14MB	30MB	C0	35	UHDGraphics770
Core i9	Alderlake	i9-12900KS	100	3.4GHz	14MB	30MB	C0	150	UHDGraphics770
Core i9	Alderlake	i9-12900KF	100	3.2GHz	14MB	30MB	C0	125	N/A
Core i9	Alderlake	i9-12900K	100	3.2GHz	14MB	30MB	C0	125	UHDGraphics770
Core i9	Alderlake	i9-12900F	100	2.4GHz	14MB	30MB	C0	65	N/A
Core i9	Alderlake	i9-12900	100	2.4GHz	14MB	30MB	C0	65	UHDGraphics770
Core i7	Alderlake	i7-12700T	100	1.4GHz	12MB	25MB	C0	35	UHDGraphics770
Core i7	Alderlake	i7-12700KF	100	3.6GHz	12MB	25MB	C0	125	N/A
Core i7	Alderlake	i7-12700K	100	3.6GHz	12MB	20MB	C0	125	UHDGraphics770
Core i7	Alderlake	i7-12700F	100	2.1GHz	12MB	25MB	C0	65	N/A
Core i7	Alderlake	i7-12700	100	2.1GHz	12MB	25MB	C0	65	UHDGraphics770
Core i5	Alderlake	i5-12600T	100	2.1GHz	7.5MB	18MB	H0	35	UHDGraphics770
Core i5	Alderlake	i5-12600KF	100	3.7GHz	9.5MB	20MB	C0	125	N/A
Core i5	Alderlake	i5-12600K	100	3.7GHz	9.5MB	20MB	C0	125	UHDGraphics770
Core i5	Alderlake	i5-12600	100	3.3GHz	7.5MB	18MB	H0	65	UHDGraphics770
Core i5	Alderlake	i5-12500T	100	2.00GHz	7.5MB	18MB	H0	35	UHDGraphics770
Core i5	Alderlake	i5-12500	100	3.00GHz	7.5MB	18MB	H0	65	UHDGraphics770
Core i5	Alderlake	i5-12490F	100	3.00GHz	7.5MB	20MB	C0	65	N/A
Core i5	Alderlake	i5-12400T	100	1.8GHz	7.5MB	18MB	H0	35	UHDGraphics730
Core i5	Alderlake	i5-12400F	100	2.5GHz	7.5MB	18MB	C0	65	N/A
Core i5	Alderlake	i5-12400F	100	2.5GHz	7.5MB	18MB	H0	65	N/A
Core i5	Alderlake	i5-12400	100	2.5GHz	7.5MB	18MB	H0	65	UHDGraphics730
Core i5	Alderlake	i5-12400	100	2.5GHz	7.5MB	18MB	C0	65	UHDGraphics730
Core i3	Alderlake	i3-12300T	100	2.3GHz	5MB	12MB	H0	35	UHDGraphics730
Core i3	Alderlake	i3-12300	100	3.5GHz	512KB	12MB	H0	60	UHDGraphics730
Core i3	Alderlake	i3-12100T	100	2.2GHz	5MB	12MB	H0	35	UHDGraphics730
Core i3	Alderlake	i3-12100F	100	3.3GHz	5MB	12MB	H0	58	N/A
Core i3	Alderlake	i3-12100	100	3.3GHz	5MB	12MB	H0	60	UHDGraphics730
Pentium Gold	Alderlake	G7400T	100	3.1GHz	2.5MB	6MB	H0	35	UHDGraphics710
Pentium Gold	Alderlake	G7400	100	3.7GHz	2.5MB	6MB	H0	46	UHDGraphics710
Celeron	Alderlake	G6900T	100	2.8GHz	2.5MB	4MB	H0	35	UHDGraphics710
Celeron	Alderlake	G6900	100	3.4GHz	2.5MB	4MB	H0	46	UHDGraphics710

MSI PRO B660M-A CEC WIFI V2 MB No I/O
