MSI PRO B760-VC WIFI Mboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

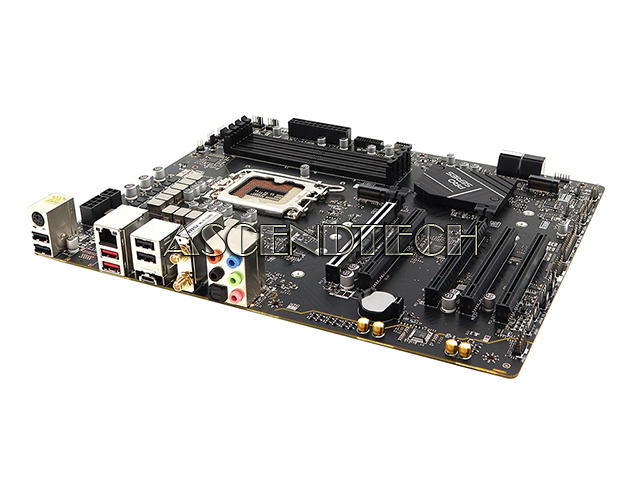

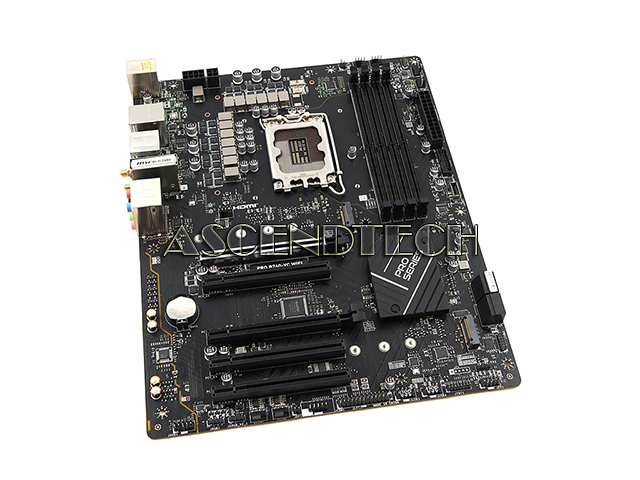

Msi Pro B760-Vc Wifi Mboard No I/O
Msi Pro B760-Vc Wifi Mboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDSKPROB760VCA
BrandMsi - Microstar
ModelPRO B760-VC WIFI
Part Number601-7D98-130B
CategoryIntel Lga1700 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard does not include an I/O Shield, cables, fan’s bracket, or any other accessories!

Description

MSI PRO B760-VC WIFI Intel Chipset B760 Socket LGA1700 DDR5 SATA 6Gb/s ATX Desktop Motherboard 601-7D98-130B.

Chipset: Intel B760
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 14th / 13th / 12th Gen Intel Core, Pentium Gold and Celeron Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7000+ (OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC)MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.1
Wireless Lan Support: Intel Wi-Fi 5, Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433Mbps
Network/Communications: Realtek 2.5Gb Ethernet
Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio
Connectors: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x Com Port (JCOM), 1x TBT connector (JTBT, supports RTD3), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports
Input/Output Ports: 1x Keyboard / Mouse, 1x 2.5G LAN, 4x USB 2.0, Wi-Fi / Bluetooth, 5x Audio Connectors, 2x USB 3.2 Gen 2 10Gbps (Type-A), 1x USB 3.2 Gen 2 10Gbps (Type-C), 1x S/PDIF-OUT
Expansion Slots: 2x M.2 slots (Key M), 4x SATA 6Gb/s ports, 5x PCIe 4.0 x16 slots
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11, Windows 10 64-bit

Additional Specifications:

Unique Features
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 5 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

CPU Support:

Socket LGA1700
VendorCPU ModelFrequencyWattageL3 CacheStepping
Inteli9-14900T1.1GHz3536MBB0
Inteli9-14900KS3.2GHz15036MBB0
Inteli9-14900KF3.2GHz12536MBB0
Inteli9-14900K3.2GHz12536MBB0
Inteli9-14900F2.0GHz6536MBB0
Inteli9-149002.0GHz6536MBB0
Inteli7-14790F2.1GHz6536MBB0
Inteli7-14700T1.3GHz3533MBB0
Inteli7-14700KF3.4GHz12533MBB0
Inteli7-14700K3.4GHz12533MBB0
Inteli7-14700F2.1GHz6533MBB0
Inteli7-147002.1GHz6533MBB0
Inteli5-14600T1.8GHz3524MBB0
Inteli5-14600KF3.5GHz12524MBB0
Inteli5-14600K3.5GHz12524MBB0
Inteli5-146002.7GHz6524MBB0
Inteli5-14500T1.7GHz3524MBC0
Inteli5-145002.6GHz6524MBC0
Inteli5-14490F2.8GHz6524MBC0
Inteli5-14400T1.5GHz3520MBC0
Inteli5-14400F2.5GHz6520MBB0
Inteli5-14400F2.5GHz6520MBC0
Inteli5-144002.5GHz6520MBB0
Inteli5-144002.5GHz6520MBC0
Inteli3-14100T2.7GHz3512MBH0
Inteli3-14100F3.5GHz5812MBH0
Inteli3-141003.5GHz6012MBH0
Intel300T3.4GHz356MBH0
Intel3003.9GHz466MBH0
Inteli9-13900T1.1GHz3536MBB0
Inteli9-13900KS3.2GHz15036MBB0
Inteli9-13900KF3.0GHz12536MBB0
Inteli9-13900K3.0GHz12536MBB0
Inteli9-13900F2.0GHz6536MBB0
Inteli9-139002.0GHz6536MBB0
Inteli7-13790F2.1GHz6533MBB0
Inteli7-13700T1.4GHz3530MBB0
Inteli7-13700KF3.4GHz12530MBB0
Inteli7-13700K3.4GHz12530MBB0
Inteli7-13700F2.1GHz6530MBB0
Inteli7-137002.1GHz6530MBB0
Inteli5-13600T1.8GHz3524MBC0
Inteli5-13600KF3.5GHz12524MBB0
Inteli5-13600K3.5GHz12524MBB0
Inteli5-136002.7GHz6524MBC0
Inteli5-13500T1.6GHz3524MBC0
Inteli5-135002.5GHz6524MBC0
Inteli5-13490F2.5GHz6524MBC0
Inteli5-13400T1.3GHz3520MBC0
Inteli5-13400F2.5GHz6520MBB0
Inteli5-13400F2.5GHz6520MBB0
Inteli5-134002.5GHz6520MBC0
Inteli5-134002.5GHz6520MBB0
Inteli3-13100T2.5GHz3512MBH0
Inteli3-13100F3.4GHz5812MBH0
Inteli3-131003.4GHz6012MBH0
Inteli9-12900T1.4GHz3530MBC0
Inteli9-12900KS3.4GHz15030MBC0
Inteli9-12900KF3.2GHz12530MBC0
Inteli9-12900K3.2GHz12530MBC0
Inteli9-12900F2.4GHz6530MBC0
Inteli9-129002.4GHz6530MBC0
Inteli7-12700T1.4GHz3525MBC0
Inteli7-12700KF3.6GHz12525MBC0
Inteli7-12700K3.6GHz12520MBC0
Inteli7-12700F2.1GHz6525MBC0
Inteli7-127002.1GHz6525MBC0
Inteli5-12600T2.1GHz3518MBH0
Inteli5-12600KF3.7GHz12520MBC0
Inteli5-12600K3.7GHz12520MBC0
Inteli5-126003.3GHz6518MBH0
Inteli5-12500T2.0GHz3518MBH0
Inteli5-125003.0GHz6518MBH0
Inteli5-12400T1.8GHz3518MBH0
Inteli5-12400F2.5GHz6518MBH0
Inteli5-12400F2.5GHz6518MBC0
Inteli5-124002.5GHz6518MBH0
Inteli5-124002.5GHz6518MBC0
Inteli3-12300T2.3GHz3512MBH0
Inteli3-123003.5GHz6012MBH0
Inteli3-12100T2.2GHz3512MBH0
Inteli3-12100F3.3GHz5812MBH0
Inteli3-121003.3GHz6012MBH0
IntelG7400T3.1GHz356MBH0
IntelG74003.7GHz466MBH0
IntelG6900T2.8GHz354MBH0
IntelG69003.4GHz464MBH0
