MSI PRO Z690-A DDR4 Motherboard NO I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

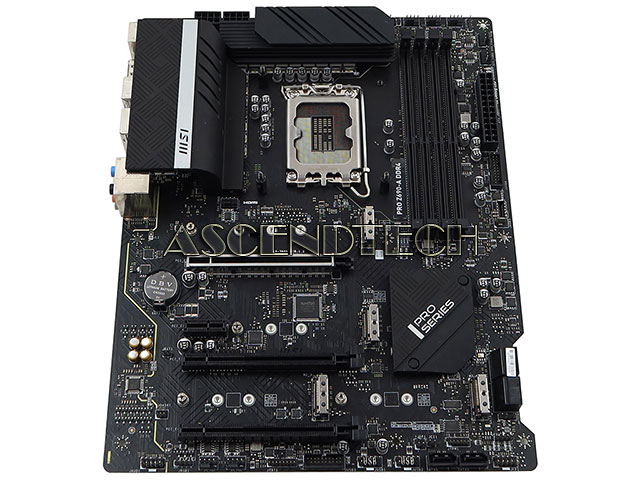

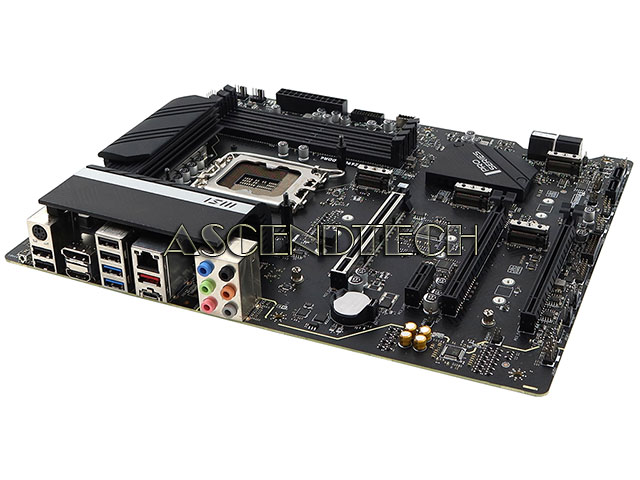

Msi Pro Z690-A Ddr4 Motherboard No I/O
Msi Pro Z690-A Ddr4 Motherboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDPROZ690ADDR4
BrandMsi - Microstar
ModelPRO Z690-A DDR4
Part Number601-7D25-100B
Compatible Part Numbers7D25-100B 7D25/100B
CategoryIntel Lga1700 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard comes with Fan Backplate! No I/O Shield, cables or any other accessories!

Description

MSI PRO Z690-A DDR4 Intel Chipset Z690 Socket LGA1700 DDR4 HDMI DisplayPort SATA 6Gb/s M.2 ATX Desktop Motherboard 601-7D25-100B.

Chipset: Intel Z690
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5333MHz(O.C.)
Storage Interface: SATA 6Gb/s, NVMe
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Network/Communications: Intel I225-V 2.5Gbps LAN controller
Audio: Realtek ALC897 Codec
Connectors: 1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 4x M.2 slots (M-Key), 1x USB 3.2 Gen 2 10Gbps Type-C port, 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 6x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x TPM module connector, 1x Tuning controller connector, 1x TBT connector (Supports RTD3)
Input/Output Ports: 1x Keyboard / Mouse, 1x DisplayPort, 4x USB 2.0, 1x LAN port, 6x Audio connector, 1x HDMI, 2x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 2x2 20Gbps, 1x USB 3.2 Gen 2
Expansion Slots: 3x PCIe x16, 1x PCIe 3.0 x1, 6x SATA 6Gb/s, 4x M.2 slots (Key M)
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Special Features

-M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
-Optimum Thermal Solution Wavy Fin Design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, double-sided M.2 Shield Frozr, and Frozr AI software ensure the extreme performance with low temp.
-Memory Boost Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
-Core Boost With premium layout and fully digital power design to support more cores and provide better performance.
-EZ Debug LED Easiest way to troubleshoot.
- Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
-2.5G Network Solution Featuring premium 2.5G LAN to deliver better network experience.
-Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
-Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
-Lightning USB 20G Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
