MSI PRO Z690-A DDR4 Motherboard NO I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

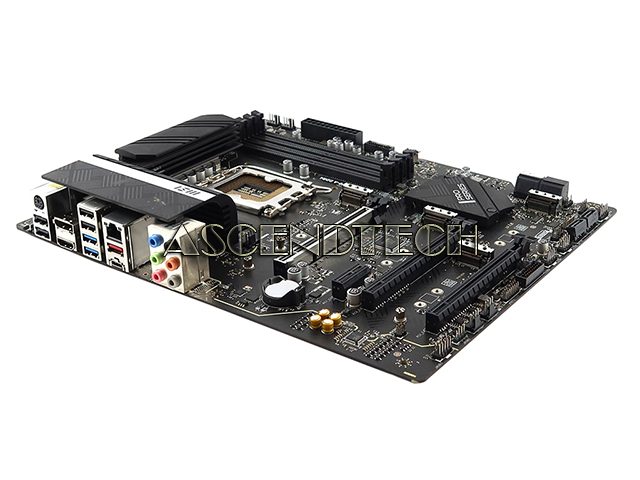

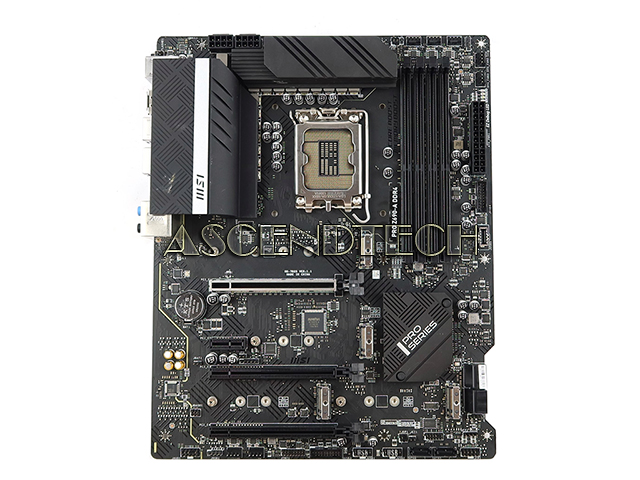

Msi Pro Z690-A Ddr4 Motherboard No I/O. Part Number: 601-7D25-100B
  Enlarge
Msi Pro Z690-A Ddr4 Motherboard No I/O. Part Number: 601-7D25-100B
Msi Pro Z690-A Ddr4 Motherboard No I/O. Part Number: 601-7D25-100B
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBDPROZ690ADDRA
Brand Msi - Microstar
Model PRO Z690-A DDR4
Part Number 601-7D25-100B
Compatible Part Numbers 7D25-100B 7D25/100B
Category Intel Lga1700 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard does not include an I/O Shield, cables, fan’s bracket, fan’s mounting backplate or any other accessories!

Description

MSI PRO Z690-A DDR4 Intel Chipset Z690 Socket LGA1700 DDR4 HDMI DisplayPort SATA 6Gb/s M.2 ATX Desktop Motherboard 601-7D25-100B.

Chipset: Intel Z690
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR4 SDRAM
Speed: 5333MHz(O.C.)
Storage Interface: SATA 6Gb/s, NVMe
RAID Support: SATA: 0, 1, 5, 10; NVMe: 0, 1, 5
Network/Communications: Intel I225-V 2.5Gbps LAN controller
Audio: Realtek ALC897 Codec
Connectors: 1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 4x M.2 slots (M-Key), 1x USB 3.2 Gen 2 10Gbps Type-C port, 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 6x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x TPM module connector, 1x Tuning controller connector, 1x TBT connector (Supports RTD3)
Input/Output Ports: 1x Keyboard / Mouse, 1x DisplayPort, 4x USB 2.0, 1x LAN port, 6x Audio connector, 1x HDMI, 2x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 2x2 20Gbps, 1x USB 3.2 Gen 2
Expansion Slots: 3x PCIe x16, 1x PCIe 3.0 x1, 6x SATA 6Gb/s, 4x M.2 slots (Key M)
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit / 11 64-bit

Additional Specifications:

Special Features

- M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Memory Boost Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Core Boost With premium layout and fully digital power design to support more cores and provide better performance.
- EZ Debug LED Easiest way to troubleshoot.
- Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- 2.5G Network Solution Featuring premium 2.5G LAN to deliver better network experience.
- Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Lightning USB 20G Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

CPU Support:

Socket LGA1700
VendorCPU ModelFrequencyWattageL3 CacheStepping
Inteli9-14900T1.1GHz3536MBB0
Inteli9-14900KS3.2GHz15036MBB0
Inteli9-14900KF3.2GHz12536MBB0
Inteli9-14900K3.2GHz12536MBB0
Inteli9-14900F2.0GHz6536MBB0
Inteli9-149002.0GHz6536MBB0
Inteli7-14790F2.1GHz6536MBB0
Inteli7-14700T1.3GHz3533MBB0
Inteli7-14700KF3.4GHz12533MBB0
Inteli7-14700K3.4GHz12533MBB0
Inteli7-14700F2.1GHz6533MBB0
Inteli7-147002.1GHz6533MBB0
Inteli5-14600T1.8GHz3524MBB0
Inteli5-14600KF3.5GHz12524MBB0
Inteli5-14600K3.5GHz12524MBB0
Inteli5-146002.7GHz6524MBB0
Inteli5-14500T1.7GHz3524MBC0
Inteli5-145002.6GHz6524MBC0
Inteli5-14490F2.8GHz6524MBC0
Inteli5-14400T1.5GHz3520MBC0
Inteli5-14400F2.5GHz6520MBC0
Inteli5-14400F2.5GHz6520MBB0
Inteli5-144002.5GHz6520MBB0
Inteli5-144002.5GHz6520MBC0
Inteli3-14100T2.7GHz3512MBH0
Inteli3-14100F3.5GHz5812MBH0
Inteli3-141003.5GHz6012MBH0
Intel300T3.4GHz356MBH0
Intel3003.9GHz466MBH0
Inteli9-13900T1.1GHz3536MBB0
Inteli9-13900KS3.2GHz15036MBB0
Inteli9-13900KF3.00GHz12536MBB0
Inteli9-13900K3.00GHz12536MBB0
Inteli9-13900F2.00GHz6536MBB0
Inteli9-139002.00GHz6536MBB0
Inteli7-13790F2.1GHz6533MBB0
Inteli7-13700T1.4GHz3530MBB0
Inteli7-13700KF3.4GHz12530MBB0
Inteli7-13700K3.4GHz12530MBB0
Inteli7-13700F2.1GHz6530MBB0
Inteli7-137002.1GHz6530MBB0
Inteli5-13600T1.8GHz3524MBC0
Inteli5-13600KF3.5GHz12524MBB0
Inteli5-13600K3.5GHz12524MBB0
Inteli5-136002.7GHz6524MBC0
Inteli5-13500T1.6GHz3524MBC0
Inteli5-135002.5GHz6524MBC0
Inteli5-13490F2.5GHz6524MBC0
Inteli5-13400T1.3GHz3520MBC0
Inteli5-13400F2.5GHz6520MBB0
Inteli5-13400F2.5GHz6520MBB0
Inteli5-134002.5GHz6520MBB0
Inteli5-134002.5GHz6520MBC0
Inteli3-13100T2.5GHz3512MBH0
Inteli3-13100F3.4GHz5812MBH0
Inteli3-131003.4GHz6012MBH0
Inteli9-12900T1.4GHz3530MBC0
Inteli9-12900KS3.4GHz15030MBC0
Inteli9-12900KF3.2GHz12530MBC0
Inteli9-12900K3.2GHz12530MBC0
Inteli9-12900F2.4GHz6530MBC0
Inteli9-129002.4GHz6530MBC0
Inteli7-12700T1.4GHz3525MBC0
Inteli7-12700KF3.6GHz12525MBC0
Inteli7-12700K3.6GHz12525MBC0
Inteli7-12700F2.1GHz6525MBC0
Inteli7-127002.1GHz6525MBC0
Inteli5-12600T2.1GHz3518MBH0
Inteli5-12600KF3.7GHz12520MBC0
Inteli5-12600K3.7GHz12520MBC0
Inteli5-126003.3GHz6518MBH0
Inteli5-12500T2.00GHz3518MBH0
Inteli5-125003.00GHz6518MBH0
Inteli5-12490F3.00GHz6520MBC0
Inteli5-12400T1.8GHz3518MBH0
Inteli5-12400F2.5GHz6518MBC0
Inteli5-12400F2.5GHz6518MBH0
Inteli5-124002.5GHz6518MBH0
Inteli5-124002.5GHz6518MBC0
Inteli3-12300T2.3GHz3512MBH0
Inteli3-123003.5GHz6012MBH0
Inteli3-12100T2.2GHz3512MBH0
Inteli3-12100F3.3GHz5812MBH0
Inteli3-121003.3GHz6012MBH0
IntelG7400T3.1GHz356MBH0
IntelG74003.7GHz466MBH0
IntelG6900T2.8GHz354MBH0
IntelG69003.4GHz464MBH0
