MSI PRO Z690-A WIFI Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge

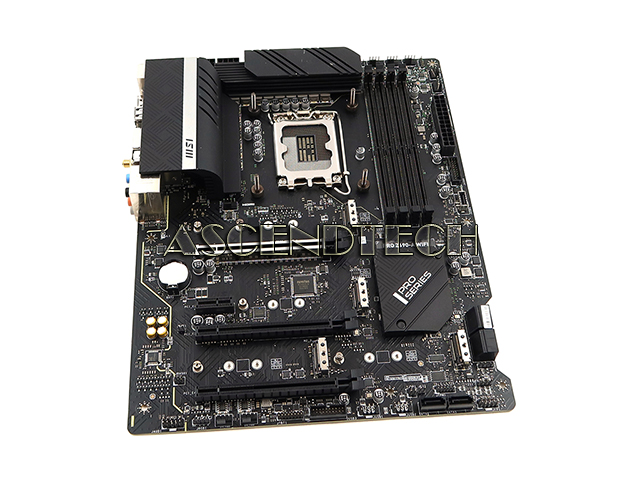

Msi Pro Z690-A Wifi Motherboard No I/O
Msi Pro Z690-A Wifi Motherboard No I/O
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMBDSK6017D2503A
BrandMsi - Microstar
ModelMS-7D25
Part Number601-7D25-030B
Model NamePRO Z690-A WIFI
Compatible Part Numbers7D25-030B 7D25/030B 601-7D25-070B
CategoryIntel Lga1700 Motherboard
ConditionLike New Grade A
Condition DescriptionPlease note, this motherboard does not include an I/O Shield, cables, fan’s bracket or any other accessories!

Description

MSI PRO Z690-A WIFI Intel Chipset Z690 Socket LGA1700 DDR5 USB-C HDMI DisplayPort SATA 6Gb/s ATX Desktop Motherboard 601-7D25-030B.

Chipset: Intel Z690
Socket: Intel LGA1700
Compatible/Supported CPU: Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors
Max Supported Memory: 128GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 6400MHz
Storage Interface: SATA 6Gb/s
RAID Support: 0, 1, 5, 10
Bluetooth Standard: Bluetooth 5.2
Wireless Lan Support: Intel Wi-Fi 6E, 802.11 a/b/g/n/ac/ax
Network/Communications: Intel I225-V 2.5Gbps LAN controller
Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio
Connectors: 1x 24-pin ATX main power connector, 2x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 4x M.2 slots (M-Key, 1x USB 3.2 Gen 2 10Gbps Type-C port, 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin water-pump fan connector, 6x 4-pin system fan connectors, 1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x TPM module connector, 1x Tuning controller connector, 1x TBT connector (Supports RTD3)
Input/Output Ports: 1x Keyboard / Mouse, 1x DisplayPort, 4x USB 2.0, 1x LAN port, WIFI / Bluetooth, 6x Audio connectors, 1x Flash BIOS Button, 1x HDMI, 2x USB 3.2 Gen 1 5Gbps Type-A, 1x USB 3.2 Gen 2x2 20Gbps Type-C, 1x USB 3.2 Gen 2 10Gbps Type-A
Expansion Slots: 3x PCIe x16 slots, x PCIe 3.0 x1 slot, 4x M.2 slots (Key M), 6x SATA 6Gb/s ports
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 11 64-bit, Windows 10 64-bit

Additional Specifications:

Onboard Graphics
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Multi-GPU
Supports AMD CrossFire Technology

USB
Intel Z690 Chipset
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)
6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors)
4x USB 2.0 Type-A ports on the back panel
USB Hub GL850G
4x USB 2.0 ports are available through the internal USB connectors

LED Feature
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED

CPU Support:

Socket LGA1700
VendorCPU ModelFrequencyCacheCore NameGPU.InfoSteppingWattage
Inteli5-13600K3.5GHz24MBRaptorlakeUHDGraphics770B0125
Inteli7-13700K3.4GHz30MBRaptorlakeUHDGraphics770B0125
Inteli9-13900K3.0GHz36MBRaptorlakeUHDGraphics770B0125
Inteli7-13700KF3.4GHz30MBRaptorlakeN/AB0125
Inteli9-13900KF3.0GHz36MBRaptorlakeN/AB0125
Inteli5-13600KF3.5GHz24MBRaptorlakeN/AB0125
Inteli9-12900KS3.4GHz30MBAlderlakeUHDGraphics770C0150
Inteli7-12700K3.6GHz25MBAlderlakeUHDGraphics770C0125
Inteli5-12400F2.5GHz18MBAlderlakeN/AC065
Inteli5-124002.5GHz18MBAlderlakeUHDGraphics730C065
Inteli7-12700F2.1GHz25MBAlderlakeN/AC065
Inteli7-127002.1GHz25MBAlderlakeUHDGraphics770C065
Inteli5-12500T2.0GHz18MBAlderlakeUHDGraphics770H035
Inteli5-12600T2.1GHz18MBAlderlakeUHDGraphics770H035
Inteli5-12600K3.7GHz20MBAlderlakeUHDGraphics770C0125
Inteli5-12600KF3.7GHz20MBAlderlakeN/AC0125
Inteli9-12900KF3.2GHz30MBAlderlakeN/AC0125
Inteli7-12700T1.4GHz25MBAlderlakeUHDGraphics770C035
Inteli9-12900T1.4GHz30MBAlderlakeUHDGraphics770C035
Inteli9-12900K3.2GHz30MBAlderlakeUHDGraphics770C0125
Inteli9-12900F2.4GHz30MBAlderlakeN/AC065
Inteli9-129002.4GHz30MBAlderlakeUHDGraphics770C065
Inteli7-12700KF3.6GHz25MBAlderlakeN/AC0125
IntelG7400T3.1GHz6MBAlderlakeUHDGraphics710H035
IntelG74003.7GHz6MBAlderlakeUHDGraphics710H046
IntelG69003.4GHz4MBAlderlakeUHDGraphics710H046
IntelG6900T2.8GHz4MBAlderlakeUHDGraphics710H035
Inteli5-12400T1.8GHz18MBAlderlakeUHDGraphics730H035
Inteli5-126003.3GHz18MBAlderlakeUHDGraphics770H065
Inteli3-121003.3GHz12MBAlderlakeUHDGraphics730H060
Inteli3-12100T2.2GHz12MBAlderlakeUHDGraphics730H035
Inteli3-123003.5GHz12MBAlderlakeUHDGraphics730H060
Inteli3-12300T2.3GHz12MBAlderlakeUHDGraphics730H035
Inteli5-124002.5GHz18MBAlderlakeUHDGraphics730H065
Inteli5-125003.0GHz18MBAlderlakeUHDGraphics770H065
Inteli5-12400F2.5GHz18MBAlderlakeN/AH065
Inteli3-12100F3.3GHz12MBAlderlakeN/AH058
