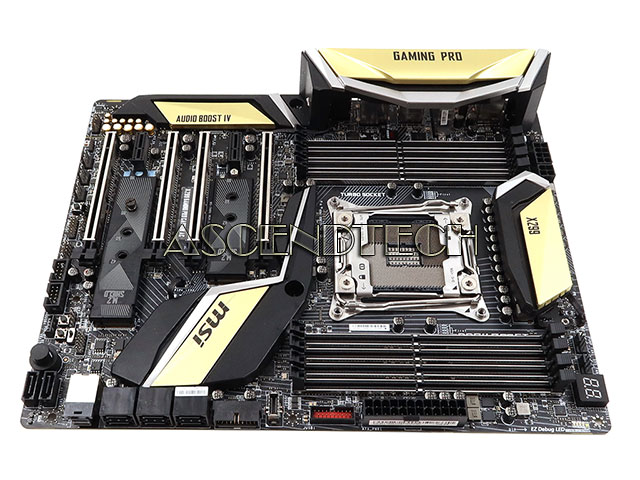

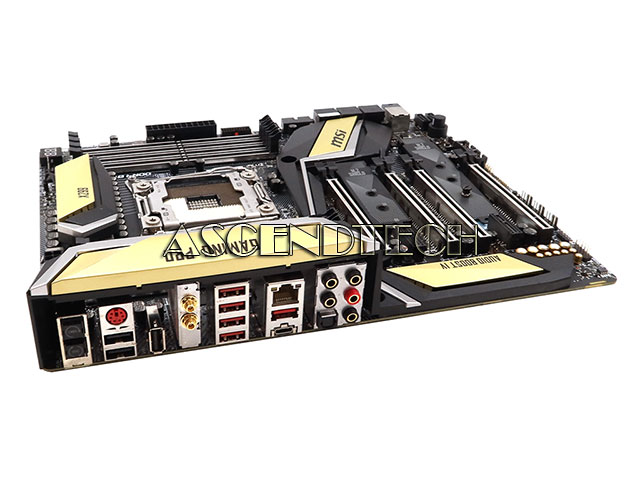

MSI X299 GAMING PRO CARBON AC MB No I/O

Chipset: Intel X299

Socket: Intel LGA2066

Compatible/Supported CPU: Intel Core X-series Processors

Max Supported Memory: 256GB

Number of Memory Slots: 8

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

RAID Support: 0, 1, 5, 10

Bluetooth Standard: Bluetooth 4.2

Wireless Lan Support: Intel Dual Band Wireless-AC 8265 module, Wi-Fi 802.11 a/b/g/n/ac

Network/Communications: Intel I219-V Gigabit LAN controller

Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 1x 4-pin ATX 12V power connector, 8x SATA 6Gb/s connectors, 3x M.2 slots (Key M x2, Key E x1), 1x U.2 port, 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports), 1x USB 3.1 Gen2 Type-C port 1x 4-pin CPU fan connector, 1x 4-pin Water Pump connector, 4x 4-pin system fan connectors, 1x Front panel audio connector, 2x Front panel connectors, 1x TPM module connector, 1x Chassis Intrusion connector, 1x Clear CMOS jumper, 1x Slow mode booting jumper, 1x GAME BOOST knob, 1x Power button, 1x Reset button, 1x Multi-BIOS switch, 1x RGB LED connector 1x Virtual RAID on CPU connector (VRAID1)

Input/Output Ports: 1x PS/2 keyboard/mouse port, 1x RJ45, 4x USB 3.1 Gen1 Type-A ports, 1x USB 3.1 Gen2 Type-A port, 1x USB 3.1 Gen2 Type-C port, 3x USB 2.0 Type-A ports, 2x Wi-Fi Antenna connectors (optional), 1x Optical S/PDIF Out, 5x Audio Ports

Expansion Slots: 4x PCIe 3.0 x16 slots, 2x PCIe 3.0 x1 slots, 8x SATA 6Gb/s ports, 2x M.2 slots

Form Factor: ATX

Type: Desktop Motherboard
