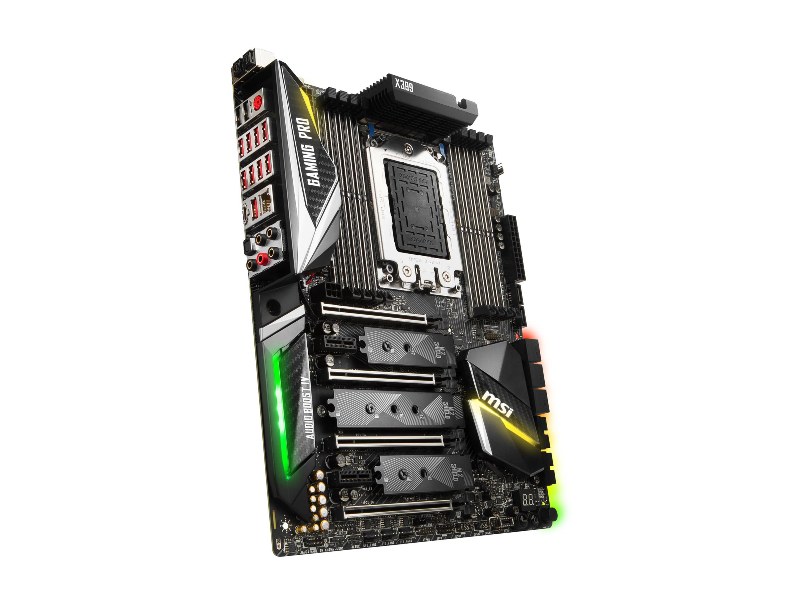

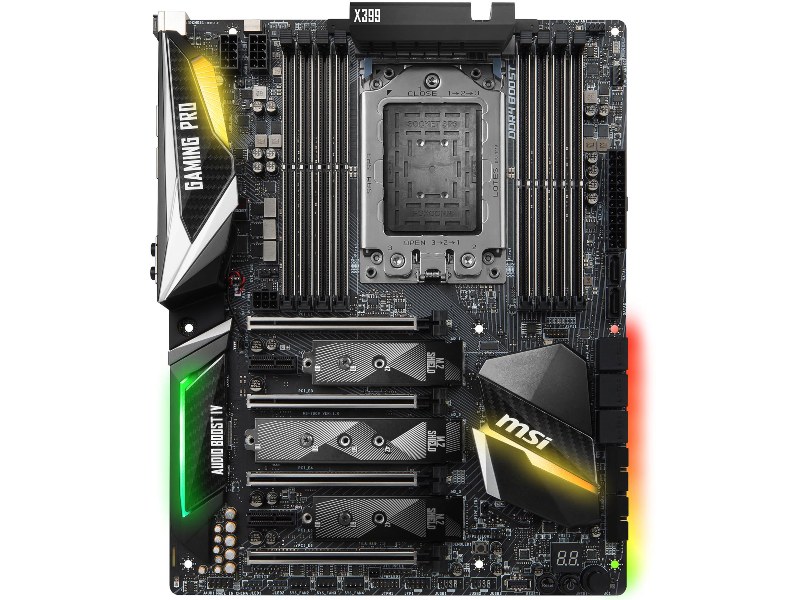

MSI X399 Gaming Pro Carbon Motherboard

MSI X399 Gaming Pro Carbon AC sTR4 AMD X399 SATA 6Gb/s USB 3.1 ATX AMD Motherboard.

Overview:

1 Clear CMOS & Flash Back Button
2 Lightning USB 3.1 Gen2
3 BIOS FLASHBACK+
4 Intel GAMING LAN
5 Golden audio jacks with S/PDIF
6 Mystic Light RGB Covers with Carbon Change up to 16.8 million colors & 17 LED effects
7 Gaming heatsinks for maximum cooling and performance
8 DDR4 Boost with Steel Armor Optimized traces and isolated memory circuitry
9 PCI-E Steel Armor Protecting VGA cards against bending and EMI
10 3x Turbo M.2 with M.2 Shield NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4
11 Intel Wi-Fi card Dual band wireless up to 867 Mbps and Bluetooth 4.2
12 Audio Boost 4 with amplifier Optimized gaming audio using best components, with Nahimic 2+

Model

Brand MSI
Model X399 GAMING PRO CARBON AC
Supported CPU

CPU Socket Type sTR4
CPU Type Ryzen Threadripper Series
Chipsets

Chipset AMD X399
Memory

Number of Memory Slots 8×288pin
Memory Standard DDR4 3600+(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 3066(OC)/ 2933(OC)/ 2667/ 2400/ 2133
Maximum Memory Supported 128GB
Channel Supported Quad Channel
Expansion Slots

PCI Express 3.0 x16 4 x PCI Express 3.0 x16
PCI Express x1 2 x PCI Express 2.0 x1
Storage Devices

SATA 6Gb/s 8 x SATA 6Gb/s
M.2 3 x M.2 slots (Key M)
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- M2_1, M2_3 slots support 2242/2260/2280 storage devices
- M2_2 slot supports 2242/2260/2280/22110 storage devices
- Supports PCIe 3.0 x4 NVMe storage
SATA RAID 0/1/10
Onboard Video

Onboard Video Chipset None
Onboard Audio

Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN

LAN Chipset Intel I211 Gigabit LAN controller
Max LAN Speed 10/100/1000Mbps
Wireless LAN Intel Dual Band Wireless-AC 8265 card
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4 GHz, 5 GHz) up to 867 Mbps speed.
Bluetooth Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2

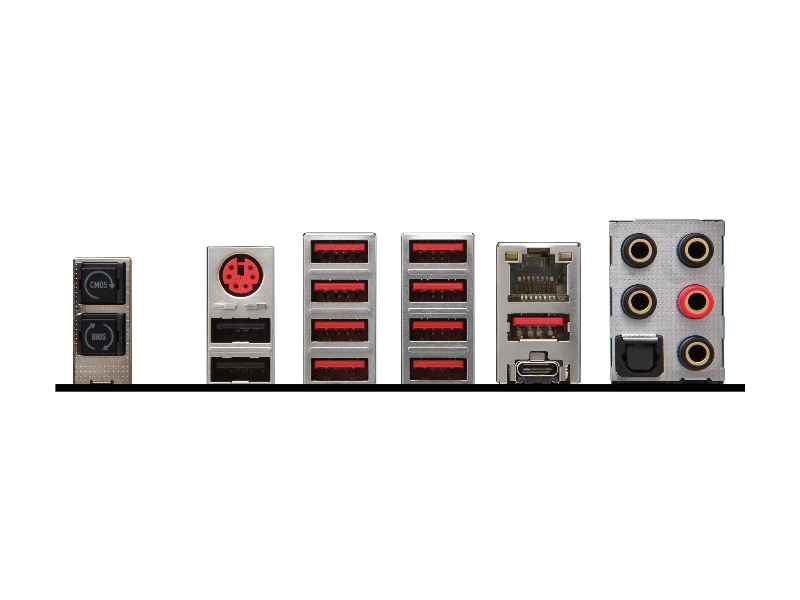

Rear Panel Ports

PS/2 1 x PS/2 keyboard/mouse port
RJ45 1 x RJ45
USB 3.1 8 x USB 3.1 Gen1 Type-A ports
1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port
USB 1.1/2.0 2 x USB 2.0 Type-A ports
S/PDIF Out 1 x Optical
Audio Ports 5 x OFC audio jacks
Internal I/O Connectors

Onboard USB 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
1 x USB 3.1 Gen2 Type-C port
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
4 x 4-pin system fan connectors
2 x Front panel connectors
1 x Front panel audio connector
2 x RGB LED connector
1 x TPM module connector
1 x LED demo connector
1 x Rest Button
1 x Power Button
1 x OC Button
1 x Chassis Intrusion connector
1 x clear CMOS header
Physical Spec

Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector*
* Provides additional power to PCIe x16 slots
Features

Features Supports AMD RYZEN THREADRIPPER Series Processors

Support 8 DIMMs, Quad-Channel DDR4 3600+ (OC)

Designed for Extreme Performance: 10+3 power phase, DIGITALL POWER Design

MYSTIC LIGHT: 16.8 milliom colors / 17 effects controlled in one click. MYSTIC LIGHT SYNC support both RGB and RAINBOW LED strip

3D Printing Support: exchangeable cover and 3D X-MOUNTING screws

Lightning Fast Game experience: 3 x TURBO M.2 with M.2 Shield, LIGHTNING USB 3.1 GEN2

VR READY and VR BOOST: Best virtual reality game experience without latency, reduces motion sickness. Supports Nahimic VR

AUDIO BOOST 4 with NAHIMIC 2+: Reward your ears with studio grade sound quality for the most immersive gaming experience

DDR4 Boost with Steel Armor: Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost

GAMING LAN and Wireless support, powered by Intel: The best online gaming experience with lowest latency and bandwidth management

MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 4-Way NVIDIA SLI & 4-Way AMD Crossfire

WHQL certified for Windows 10
