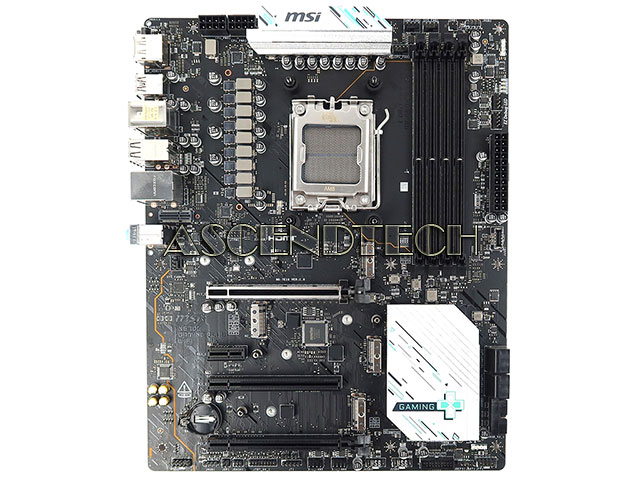

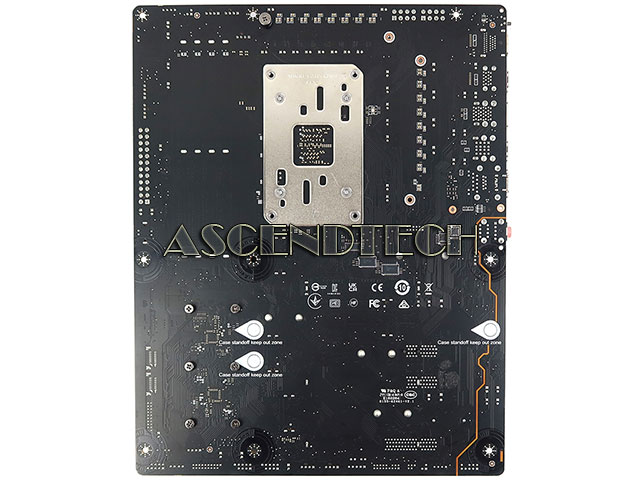

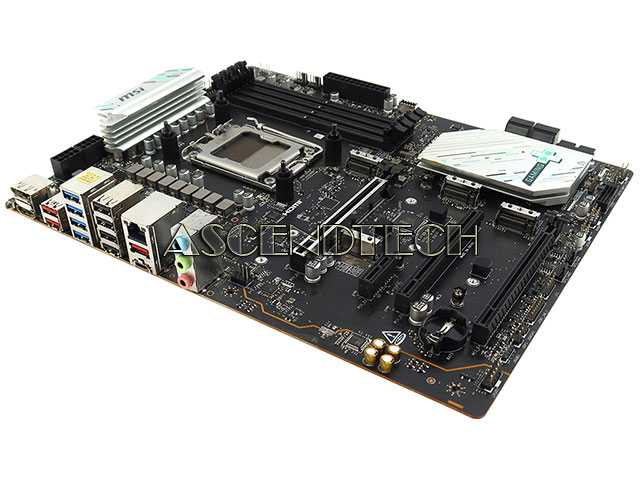

MSI X670E GAMING PLUS WIFI MBoard No I/O
Qty:
Item Code MBDSKX670EGAMIA
Brand Msi - Microstar
Model X670E GAMING PLUS WIFI
Compatible Part Numbers MS-7E16
Category Amd Socket Am5 Motherboard
Condition Like New Grade A
Condition Description Please note, this motherboard comes with a CPU cooler backplate with screws only and does not include Wi-Fi antenna connectors (RP-SMA), an I/O shield, an extended heatsink, a 7W/mK thermal pad and additional choke pad, an M.2 shield frozr, a Wi-Fi antenna, cables, a fan bracket, or any other accessories!
Add-ons / Accessories
If you wish to order addon / accessories please checkoff the box next to the addon items and press the add to cart button.
Description
MSI X670E GAMING PLUS WIFI AMD Chipset X670 Socket AM5 DDR5 M.2 SATA 6Gb/s DisplayPort HDMI ATX Desktop Motherboard.
Chipset: AMD X670
Socket: AMD AM5
Compatible/Supported CPU: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Max Supported Memory: 256GB
Number of Memory Slots: 4
Memory Type: DDR5 SDRAM
Speed: 7800+MHz (OC) / 7600MHz (OC) / 7400MHz (OC) / 7200MHz (OC) / 7000MHz (OC) / 6800MHz (OC) / 6600MHz (OC) / 6400MHz (OC) / 6200MHz (OC) / 6000MHz (OC) / 5800MHz (OC) / 5600MHz (OC) / 5400MHz (OC) / 5200MHz (OC) / 5000MHz (OC) / 4800MHz (JEDEC)
Storage Interface: 4x M.2 NVMe; 4x SATA 6Gb/s
RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices; RAID 0, RAID 1 and RAID 10 for SATA storage devices
Bluetooth Standard: Bluetooth 5.3
Wireless Lan Support: 802.11 a/b/g/n/ac/ax
Network/Communications: Realtek RTL8125BG 2.5 Gbps LAN; AMD Wi-Fi 6E
Audio: Realtek ALC897 Codec; 7.1-Channel High Definition Audio
Connectors: 1x ATX Power Connector (ATX_PWR); 2x CPU Power Connector (CPU_PWR); 1x CPU Fan; 1x Pump Fan; 6x System Fan; 2x Front Panel (JFP); 1x Chassis Intrusion (JCI); 1x Front Audio (JAUD); 1x Tuning Controller Connector (JDASH); 2x Addressable V2 RGB LED Connector (JARGB_V2); 2x RGB LED Connector (JRGB); 1x TPM Pin Header (Support TPM 2.0); 4x USB 2.0 Ports; 4x USB 5 Gbps Type A Ports; 1x USB 10 Gbps Type C Ports
Input/Output Ports: 1x DisplayPort; 1x HDMI; 3x USB 3.2 Gen 2 10 Gbps (Type-A); 4x USB 3.2 Gen 1 5 Gbps (Type-A); 4x USB 2.0 (Type-A); 1x 2.5G LAN; 1x USB 3.2 Gen 2x2 20Gbps (Type-C); 3x Audio Connectors
Expansion Slots: 3x PCI-Express x16 slot; 1x PCI-Express x1 slot
Form Factor: ATX
Type: Desktop Motherboard
Supported Operating System: Windows 10 64-bit; Windows 11 64-bit
Additional Specifications:
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost;
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2;
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works;
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material;
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Supported processors:
Processor | Core Name | CPU No | FSB | CPU Speed | L2 | L3 | Stepping | Wattage | GPU |
| Ryzen 9 | Granite Ridge | Ryzen 9 9950X3D2 | 100 | 4.3GHz | 16MB | 192MB | B0 | 200 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 9950X3D | 100 | 4.3GHz | 16MB | 128MB | B0 | 170 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 9950X | 100 | 4.3GHz | 16MB | 64MB | B0 | 170 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 PRO 9945 | 100 | 3.4GHz | 12MB | 64MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 9900X3D | 100 | 4.4GHz | 12MB | 128MB | B0 | 120 | AMDRadeonGraphics |
| Ryzen 9 | Granite Ridge | Ryzen 9 9900X | 100 | 4.4GHz | 12MB | 64MB | B0 | 120 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7950X3D | 100 | 4.2GHz | 16MB | 128MB | B2 | 120 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7950X | 100 | 4.5GHz | 16MB | 64MB | B2 | 170 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 PRO 7945 | 100 | 3.7GHz | 12MB | 64MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7900X3D | 100 | 4.4GHz | 12MB | 128MB | B2 | 120 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7900X | 100 | 4.7GHz | 12MB | 64MB | B2 | 170 | AMDRadeonGraphics |
| Ryzen 9 | Raphael | Ryzen 9 7900 | 100 | 3.7GHz | 12MB | 64MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 9850X3D | 100 | 4.7GHz | 8MB | 96MB | B0 | 120 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 9800X3D | 100 | 4.7GHz | 8MB | 96MB | B0 | 120 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 PRO 9745 | 100 | 3.8GHz | 8MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 9700X | 100 | 3.8GHz | 8MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Granite Ridge | Ryzen 7 9700F | 100 | 3.8GHz | 8MB | 32MB | B1 | 65 | N/A |
| Ryzen 7 | Phoenix | Ryzen 7 PRO 8700GE | 100 | 3.65GHz | 8MB | 16MB | A2 | 35 | AMDRadeon780MGraphics |
| Ryzen 7 | Phoenix | Ryzen 7 PRO 8700G | 100 | 4.2GHz | 8MB | 16MB | A2 | 65 | AMDRadeon780MGraphics |
| Ryzen 7 | Phoenix | Ryzen 7 8700G | 100 | 4.2GHz | 8MB | 16MB | A2 | 65 | AMDRadeon780MGraphics |
| Ryzen 7 | Phoenix | Ryzen 7 8700F | 100 | 4.1GHz | 8MB | 16MB | A2 | 65 | N/A |
| Ryzen 7 | Raphael | Ryzen 7 7800X3D | 100 | 4.2GHz | 8MB | 96MB | B2 | 120 | AMDRadeonGraphics |
| Ryzen 7 | Raphael | Ryzen 7 PRO 7745 | 100 | 3.8GHz | 8MB | 32MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 7 | Raphael | Ryzen 7 7700X | 100 | 4.5GHz | 8MB | 32MB | B2 | 105 | AMDRadeonGraphics |
| Ryzen 7 | Raphael | Ryzen 7 7700 | 100 | 3.8GHz | 8MB | 32MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Granite Ridge | Ryzen 5 PRO 9645 | 100 | 3.9GHz | 6MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Granite Ridge | Ryzen 5 9600X | 100 | 3.9GHz | 6MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Granite Ridge | Ryzen 5 9600 | 100 | 3.8GHz | 6MB | 32MB | B0 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Granite Ridge | Ryzen 5 9500F | 100 | 3.8GHz | 6MB | 32MB | B1 | 65 | N/A |
| Ryzen 5 | Phoenix | Ryzen 5 PRO 8600GE | 100 | 3.9GHz | 6MB | 16MB | A2 | 35 | AMDRadeon760MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 PRO 8600G | 100 | 4.35GHz | 6MB | 16MB | A2 | 65 | AMDRadeon760MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 8600G | 100 | 4.35GHz | 6MB | 16MB | A2 | 65 | AMDRadeon760MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 PRO 8500GE | 100 | 3.4GHz | 6MB | 16MB | A0 | 35 | AMDRadeon740MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 PRO 8500G | 100 | 3.55GHz | 6MB | 16MB | A0 | 65 | AMDRadeon740MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 8500GE | 100 | 3.4GHz | 6MB | 16MB | A0 | 35 | AMDRadeon740MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 8500G | 100 | 3.55GHz | 6MB | 16MB | A0 | 65 | AMDRadeon740MGraphics |
| Ryzen 5 | Phoenix | Ryzen 5 8400F | 100 | 4.2GHz | 6MB | 16MB | A2 | 65 | N/A |
| Ryzen 5 | Raphael | Ryzen 5 PRO 7645 | 100 | 3.8GHz | 6MB | 32MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7600X3D | 100 | 4.1GHz | 6MB | 96MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7600X | 100 | 4.7GHz | 6MB | 32MB | B2 | 105 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7600 | 100 | 3.8GHz | 6MB | 32MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7500X3D | 100 | 4.0GHz | 6MB | 96MB | B3 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7500F | 100 | 3.7GHz | 6MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Raphael | Ryzen 5 PRO 7445 | 100 | 3.3GHz | 6MB | 16MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 5 | Raphael | Ryzen 5 7400F | 100 | 3.7GHz | 6MB | 32MB | B2 | 65 | N/A |
| Ryzen 5 | Raphael | Ryzen 5 7400 | 100 | 3.3GHz | 6MB | 16MB | B2 | 65 | AMDRadeonGraphics |
| Ryzen 3 | Phoenix | Ryzen 3 PRO 8300GE | 100 | 3.5GHz | 4MB | 8MB | A0 | 35 | AMDRadeon740MGraphics |
| Ryzen 3 | Phoenix | Ryzen 3 PRO 8300G | 100 | 3.45GHz | 4MB | 8MB | A0 | 65 | AMDRadeon740MGraphics |
| Ryzen 3 | Phoenix | Ryzen 3 8300GE | 100 | 3.5GHz | 4MB | 8MB | A0 | 35 | AMDRadeon740MGraphics |
| Ryzen 3 | Phoenix | Ryzen 3 8300G | 100 | 3.45GHz | 4MB | 8MB | A0 | 65 | AMDRadeon740MGraphics |
