MS-7971 | Msi Z170a Pc Mate Motherboard No I/O

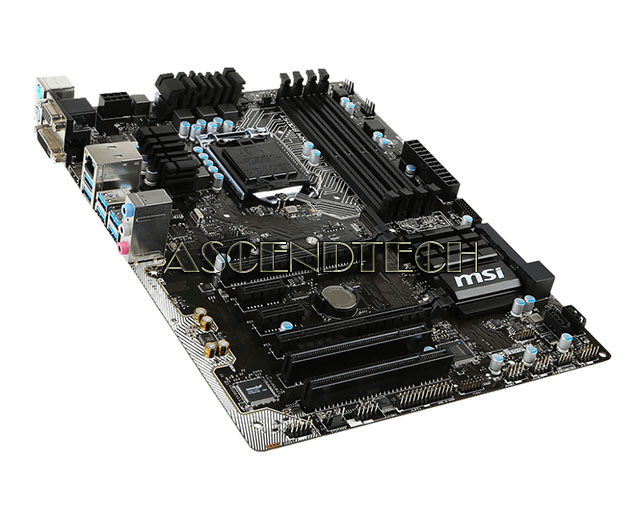

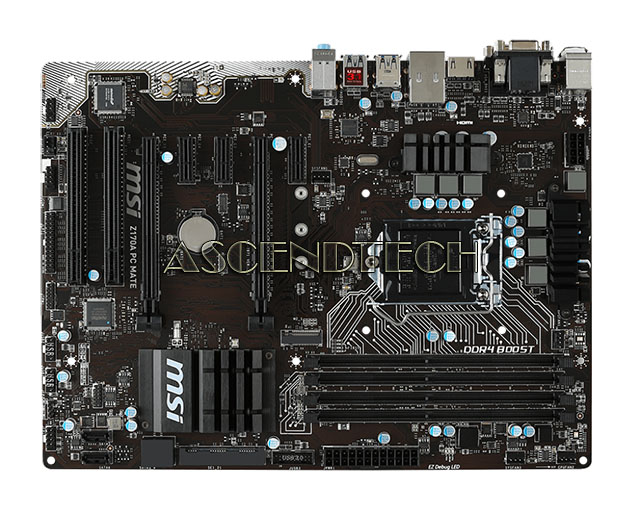

MSI Z170A PC MATE Motherboard No I/O

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item CodeMBMSIZ170APCMAT

BrandMsi - Microstar

ModelMS-7971

Model NameZ170A PC MATE

CategoryIntel Lga1151 Motherboard

ConditionLike New Grade A

Condition DescriptionPlease note, this motherboard does not include an I/O Shield, cables, or any other accessories!

Description

MSI Z170A PC MATE MS-7971 Intel Chipset Z170 Socket LGA1151 DDR4 USB SATA 6Gb/s ATX Desktop Motherboard.

Chipset: Intel Z170

Socket: Intel LGA1151

Compatible/Supported CPU: 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10

Wireless Lan Support: Realtek RTL8111H Gigabit LAN controller

Audio: Realtek ALC887 codec

Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 1x SATAe connector (is compatible with SATA1~2); 2x USB 2.0 connectors (support additional 4 USB 2.0 ports); 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports); 2x 4-pin CPU fan connectors; 3x 4-pin system fan connectors; 1x Front panel audio connector; 2x Front panel connectors; 1x TPM module connector; 1x Chassis Intrusion connector; 1x Serial port connector; 1x Parallel port connector; 1x Clear CMOS jumper

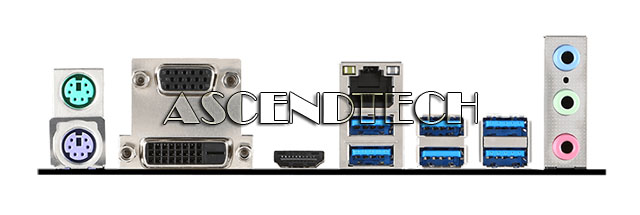

Input/Output Ports: 1x PS/2 mouse port; 1x PS/2 keyboard port; 1x VGA port; 1x DVI-D port; 1x HDMI port; 1x LAN (RJ45) port; 4x USB 3.1 Gen1 ports; 2x USB 3.1 Gen2 ports; 3x audio jacks

Expansion Slots: 2x PCIe 3.0 x 16 slots (support x 16, x 16/ x 4 modes), 3x PCIe 3.0 x1 slots, 2x PCI slots

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10

Features: Supports 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket; Supports DDR4-3200 Memory (OC); DDR4 Boost: Give your DDR4 memory a performance boost; USB 3.1 Gen2 2X FASTER: USB 3.1 Gen2 offers performance twice as fast as a regular USB 3.0 connection; Turbo M.2 32Gb/s + Turbo U.2 ready + USB 3.1 Gen2 Type-A + SATA 6Gb/s; MULTI-GPU with VGA Armor: VGA Armor PCI-E slots. Supports AMD Crossfire; OC Genie 4: Overclock in 1 Second; Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font; Audio Boost: Reward your ears with studio grade sound quality; Military Class 4: Top Quality & Stability; Guard-Pro: Improved Protection and Power Efficiency; EZ Debug LED: Easiest way to troubleshoot; Overvoltage Protection:Prevent Unforeseen Damage; 4K UHD Support: Ultra-high Definition Visual Experience; Windows 10 Ready: 100% Compatibility, Performance, Trusted and Certified

Additional Specifications:

Onboard Graphics
• 1x HDMI ports, support a max imum resolution of 4096x 2160@24Hz
- Support for HDMI 1.4 version.
• 1x DVI- D port, support a max imum resolution of 1920x 1200@60Hz
• 1x VGA port, support a max imum resolution of 1920x 1200@60Hz

Multi- GPU
• Supports 2- Way AMD CrossFire Technology

USB
• ASMedia ASM1142 Chipset
- 2x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports onthe back panel
• Intel Z170 Chipset
- 6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB 3.1 Gen1 connector)
- 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors)

CPU Support:

Processor	Core Name	CPU No	FSB	CPU Speed	L2	L3	Wattage
Core i7	Kabylake	i7-7700T	100	2.9GHz	1MB	8MB	35
Core i7	Kabylake	i7-7700K	100	4.2GHz	1MB	8MB	91
Core i7	Kabylake	i7-7700	100	3.6GHz	1MB	8MB	65
Core i5	Kabylake	i5-7600T	100	2.8GHz	1MB	6MB	35
Core i5	Kabylake	i5-7600K	100	3.8GHz	1MB	6MB	91
Core i5	Kabylake	i5-7600	100	3.5GHz	1MB	6MB	65
Core i5	Kabylake	i5-7500T	100	2.7GHz	1MB	6MB	35
Core i5	Kabylake	i5-7500	100	3.4GHz	1MB	6MB	65
Core i5	Kabylake	i5-7400T	100	2.4GHz	1MB	6MB	35
Core i5	Kabylake	i5-7400	100	3.0GHz	1MB	6MB	65
Core i3	Kabylake	i3-7350K	100	4.2GHz	512KB	4MB	60
Core i3	Kabylake	i3-7350K	100	4.2GHz	512KB	4MB	60
Core i3	Kabylake	i3-7320	100	4.1GHz	512KB	4MB	51
Core i3	Kabylake	i3-7320	100	4.1GHz	512KB	4MB	51
Core i3	Kabylake	i3-7300T	100	3.5GHz	512KB	4MB	35
Core i3	Kabylake	i3-7300T	100	3.5GHz	512KB	4MB	35
Core i3	Kabylake	i3-7300	100	4.0GHz	512KB	4MB	51
Core i3	Kabylake	i3-7300	100	4.0GHz	512KB	4MB	51
Core i3	Kabylake	i3-7100T	100	3.4GHz	512KB	3MB	35
Core i3	Kabylake	i3-7100T	100	3.4GHz	512KB	3MB	35
Core i3	Kabylake	i3-7100	100	3.9GHz	512KB	3MB	51
Core i3	Kabylake	i3-7100	100	3.9GHz	512KB	3MB	51
Pentium	Kabylake	G4620	100	3.7GHz	512KB	3MB	51
Pentium	Kabylake	G4620	100	3.7GHz	512KB	3MB	51
Pentium	Kabylake	G4600T	100	3.0GHz	512KB	3MB	35
Pentium	Kabylake	G4600T	100	3.0GHz	512KB	3MB	35
Pentium	Kabylake	G4600	100	3.6GHz	512KB	3MB	51
Pentium	Kabylake	G4600	100	3.6GHz	512KB	3MB	51
Pentium	Kabylake	G4560T	100	2.9GHz	512KB	3MB	35
Pentium	Kabylake	G4560T	100	2.9GHz	512KB	3MB	35
Pentium	Kabylake	G4560	100	3.5GHz	512KB	3MB	54
Pentium	Kabylake	G4560	100	3.5GHz	512KB	3MB	54
Celeron	Kabylake	G3950	100	3.0GHz	512KB	2MB	51
Celeron	Kabylake	G3950	100	3.0GHz	512KB	2MB	51
Celeron	Kabylake	G3930T	100	2.7GHz	512KB	2MB	35
Celeron	Kabylake	G3930T	100	2.7GHz	512KB	2MB	35
Celeron	Kabylake	G3930	100	2.9GHz	512KB	2MB	51
Celeron	Kabylake	G3930	100	2.9GHz	512KB	2MB	51
Core i7	Skylake	i7-6700T	100	2.8GHz	1MB	8MB	35
Core i7	Skylake	i7-6700K	100	4.0GHz	1MB	8MB	91
Core i7	Skylake	i7-6700	100	3.4GHz	1MB	8MB	65
Core i5	Skylake	i5-6600T	100	2.7GHz	1MB	6MB	35
Core i5	Skylake	i5-6600K	100	3.5GHz	1MB	6MB	91
Core i5	Skylake	i5-6600	100	3.3GHz	1MB	6MB	65
Core i5	Skylake	i5-6500T	100	2.5GHz	1MB	6MB	35
Core i5	Skylake	i5-6500	100	3.2GHz	1MB	6MB	65
Core i5	Skylake	i5-6402P	100	2.8GHz	1MB	6MB	65
Core i5	Skylake	i5-6400T	100	2.2GHz	1MB	6MB	35
Core i5	Skylake	i5-6400	100	2.7GHz	1MB	6MB	65
Core i3	Skylake	i3-6320	100	3.9GHz	512KB	4MB	51
Core i3	Skylake	i3-6320	100	3.9GHz	512KB	4MB	47
Core i3	Skylake	i3-6300T	100	3.3GHz	512KB	4MB	35
Core i3	Skylake	i3-6300T	100	3.3GHz	512KB	4MB	35
Core i3	Skylake	i3-6300	100	3.8GHz	512KB	4MB	47
Core i3	Skylake	i3-6300	100	3.8GHz	512KB	4MB	51
Core i3	Skylake	i3-6100T	100	3.2GHz	512KB	3MB	35
Core i3	Skylake	i3-6100T	100	3.2GHz	512KB	3MB	35
Core i3	Skylake	i3-6100	100	3.7GHz	512KB	3MB	51
Core i3	Skylake	i3-6100	100	3.7GHz	512KB	3MB	47
Core i3	Skylake	i3-6098P	100	3.6GHz	512KB	3MB	54
Pentium	Skylake	G4520	100	3.6GHz	512KB	3MB	51
Pentium	Skylake	G4520	100	3.6GHz	512KB	3MB	47
Pentium	Skylake	G4500T	100	3.0GHz	512KB	3MB	35
Pentium	Skylake	G4500T	100	3.0GHz	512KB	3MB	35
Pentium	Skylake	G4500	100	3.5GHz	512KB	3MB	51
Pentium	Skylake	G4500	100	3.5GHz	512KB	3MB	47
Pentium	Skylake	G4400T	100	2.9GHz	512KB	3MB	35
Pentium	Skylake	G4400T	100	2.9GHz	512KB	3MB	35
Pentium	Skylake	G4400	100	3.3GHz	512KB	3MB	47
Pentium	Skylake	G4400	100	3.3GHz	512KB	3MB	54
Celeron	Skylake	G3920	100	2.9GHz	512KB	2MB	47
Celeron	Skylake	G3900T	100	2.6GHz	512KB	2MB	35
Celeron	Skylake	G3900	100	2.8GHz	512KB	2MB	47
