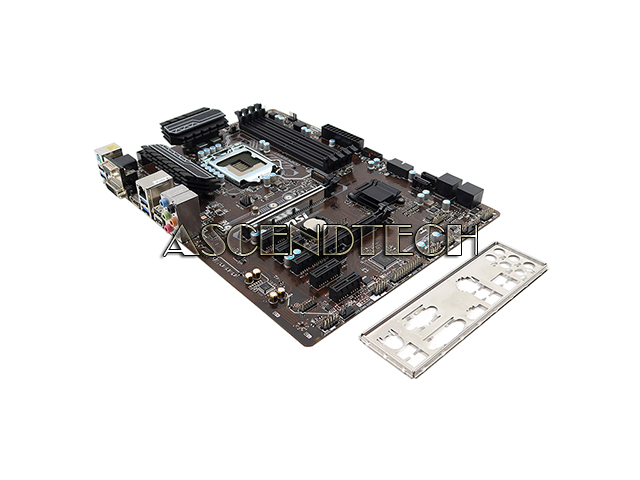

MS-7A71 | Msi Z270-A Pro Ms-7A71 Atx Motherboard

MSI Z270-A PRO MS-7A71 Intel Chipset Z270 Socket LGA1151 DDR4 VGA DVI USB SATA 6Gb/s ATX Desktop Motherboard.

Chipset: Intel Z270

Socket: Intel LGA1151

Compatible/Supported CPU: 7th/6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors

Max Supported Memory: 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10

Wireless Lan Support: Realtek RTL8111H Gigabit LAN controller

Audio: Realtek ALC892 codec

Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water pump fan connector; 4x 4-pin system fan connectors; 1x Front panel audio connector; 2x Front panel connectors; 1x TPM module connector; 1x Chassis Intrusion connector; 1x Serial port connector; 1x Parallel port connector; 1x Clear CMOS jumper

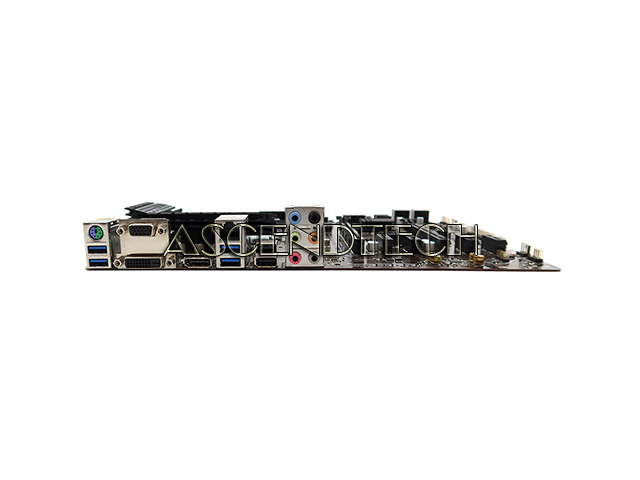

Input/Output Ports: 1x PS/2 mouse & keyboard combo port; 4x USB 3.1 Gen1 Type-A ports; 1x VGA port; 1x DVI-D port; 1x DisplayPort; 1x LAN (RJ45) port; 2x USB 2.0 ports; 6x audio jacks

Expansion Slots: 2x PCIe 3.0 x16 slots (support x16/x4 mode); 4x PCIe 3.0 x1 slots

Form Factor: ATX

Type: Desktop Motherboard

Features: Supports 7th / 6th Gen Intel Core / Pentium / Celeron processors for LGA 1151 socket; Supports DDR4-3800+(OC) Memory; DDR4 Boost: Give your DDR4 memory a performance boost; Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience; EZ Debug LED: Easiest way to troubleshoot; Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready; X-Boost: Great tool to boost your USB & Storage performance; Doublo ESD Protection: Double layer grounding motherboard mounting holes; Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency; Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

Additional Specifications:

Multi-GPU
• Supports 2-Way AMD CrossFire Technology

Onboard Graphics
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
• 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz

USB
• Intel Z270 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

CPU Support:

Processor	Core Name	CPU No	FSB	CPU Speed	L2	L3	Wattage
Core i7	Kabylake	i7-7700T	100	2.9GHz	1MB	8MB	35
Core i7	Kabylake	i7-7700K	100	4.2GHz	1MB	8MB	91
Core i7	Kabylake	i7-7700	100	3.6GHz	1MB	8MB	65
Core i5	Kabylake	i5-7600T	100	2.8GHz	1MB	6MB	35
Core i5	Kabylake	i5-7600K	100	3.8GHz	1MB	6MB	91
Core i5	Kabylake	i5-7600	100	3.5GHz	1MB	6MB	65
Core i5	Kabylake	i5-7500T	100	2.7GHz	1MB	6MB	35
Core i5	Kabylake	i5-7500	100	3.4GHz	1MB	6MB	65
Core i5	Kabylake	i5-7400T	100	2.4GHz	1MB	6MB	35
Core i5	Kabylake	i5-7400	100	3.0GHz	1MB	6MB	65
Core i3	Kabylake	i3-7350K	100	4.2GHz	512KB	4MB	60
Core i3	Kabylake	i3-7320	100	4.1GHz	512KB	4MB	51
Core i3	Kabylake	i3-7300T	100	3.5GHz	512KB	4MB	35
Core i3	Kabylake	i3-7300	100	4.0GHz	512KB	4MB	51
Core i3	Kabylake	i3-7100T	100	3.4GHz	512KB	3MB	35
Core i3	Kabylake	i3-7100	100	3.9GHz	512KB	3MB	51
Pentium	Kabylake	G4620	100	3.7GHz	512KB	3MB	51
Pentium	Kabylake	G4600T	100	3.0GHz	512KB	3MB	35
Pentium	Kabylake	G4600	100	3.6GHz	512KB	3MB	51
Pentium	Kabylake	G4560T	100	2.9GHz	512KB	3MB	35
Pentium	Kabylake	G4560	100	3.5GHz	512KB	3MB	54
Celeron	Kabylake	G3950	100	3.0GHz	512KB	2MB	51
Celeron	Kabylake	G3930T	100	2.7GHz	512KB	2MB	35
Celeron	Kabylake	G3930	100	2.9GHz	512KB	2MB	51
Core i7	Skylake	i7-6700T	100	2.8GHz	1MB	8MB	35
Core i7	Skylake	i7-6700K	100	4.0GHz	1MB	8MB	91
Core i7	Skylake	i7-6700	100	3.4GHz	1MB	8MB	65
Core i5	Skylake	i5-6600T	100	2.7GHz	1MB	6MB	35
Core i5	Skylake	i5-6600K	100	3.5GHz	1MB	6MB	91
Core i5	Skylake	i5-6600	100	3.3GHz	1MB	6MB	65
Core i5	Skylake	i5-6500T	100	2.5GHz	1MB	6MB	35
Core i5	Skylake	i5-6500	100	3.2GHz	1MB	6MB	65
Core i5	Skylake	i5-6402P	100	2.8GHz	1MB	6MB	65
Core i5	Skylake	i5-6400T	100	2.2GHz	1MB	6MB	35
Core i5	Skylake	i5-6400	100	2.7GHz	1MB	6MB	65
Core i3	Skylake	i3-6320	100	3.9GHz	512KB	4MB	51
Core i3	Skylake	i3-6300T	100	3.3GHz	512KB	4MB	35
Core i3	Skylake	i3-6300	100	3.8GHz	512KB	4MB	51
Core i3	Skylake	i3-6100T	100	3.2GHz	512KB	3MB	35
Core i3	Skylake	i3-6100	100	3.7GHz	512KB	3MB	51
Core i3	Skylake	i3-6098P	100	3.6GHz	512KB	3MB	54
Pentium	Skylake	G4520	100	3.6GHz	512KB	3MB	51
Pentium	Skylake	G4500T	100	3.0GHz	512KB	3MB	35
Pentium	Skylake	G4500	100	3.5GHz	512KB	3MB	51
Pentium	Skylake	G4400T	100	2.9GHz	512KB	3MB	35
Pentium	Skylake	G4400	100	3.3GHz	512KB	3MB	54
Celeron	Skylake	G3920	100	2.9GHz	512KB	2MB	51
Celeron	Skylake	G3900T	100	2.6GHz	512KB	2MB	35
Celeron	Skylake	G3900	100	2.8GHz	512KB	2MB	51
