MSI Z370-A PRO MS-7B48 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

Enlarge

*Note this image is for descriptional purposes.
Actual product may vary.

Item CodeMBDSK6017B480UD

BrandMsi - Microstar

ModelMS-7B48

Part Number601-7B48-010B

Model NameZ370-A PRO

CategoryIntel Lga1151 Motherboard

ConditionPre-Owned Grade D

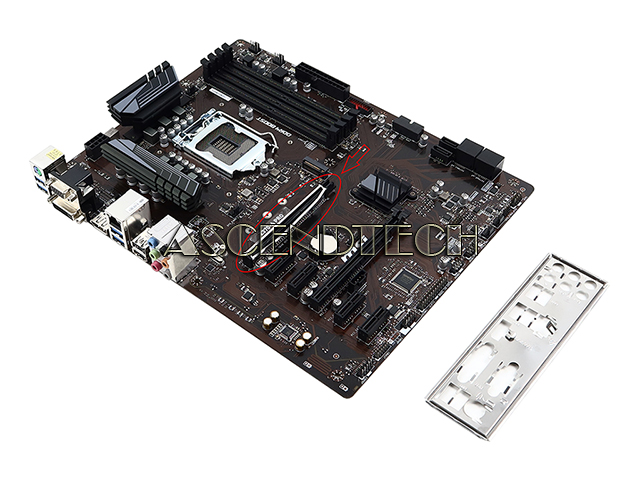

Condition DescriptionPlease note, one of the PCI-Express slots is damaged! Otherwise the motherboard is fully operational and functions as intended. Comes with I/O Shield only, no cables or any other accessories. Please see images!

Description

MSI Z370-A PRO MS-7B48 Intel Chipset Z370 Socket LGA1151 DDR4 VGA DVI USB SATA 6Gb/s ATX Desktop Motherboard 601-7B48-010B.

Chipset: Intel Z370

Socket: Intel LGA1151

Compatible/Supported CPU: 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors

Max Supported Memory: Up to 64GB

Number of Memory Slots: 4

Memory Type: DDR4 SDRAM

Storage Interface: SATA 6Gb/s

RAID Support: RAID 0, RAID 1, RAID 5 and RAID 10

Wireless Lan Support: Realtek RTL8111H Gigabit LAN controller

Audio: Realtek ALC892 Codec

Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 6x SATA 6Gb/s connectors; 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water pump fan connector; 4x 4-pin system fan connectors; 1x Front panel audio connector; 2x Front panel connectors; 1x TPM module connector; 1x Chassis Intrusion connector; 1x Serial port connector; 1x Parallel port connector; 1x Thunderbolt Add-on Card Connector; 1x Clear CMOS jumper

Input/Output Ports: 1x PS/2 Combo Port, 1x VGA Port, 1x LAN Port, 2x USB 2.0, 6x HD Audio Connectors, 4x USB 3.1 Gen 1, 1x DVI-D Port, DisplayPort

Expansion Slots: 1x PCIe 3.0 x16 slot (PCI_E1, supports x16 mode), 1x PCIe 3.0 x16 slot (PCI_E4, supports x4 mode), 4x PCIe 3.0 x1 slots

Form Factor: ATX

Type: Desktop Motherboard

Supported Operating System: Windows 10 64-bit

Features: Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA1151 socket; Supports DDR4 Memory, up to 4000+(OC)MHz; DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance; AUDIO BOOST :Reward your ears with studio grade sound quality for the most immersive audio experience; MULTI-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire; Heavy plated heatsinks:Leading heatsink design, for maximum cooling; EZ Debug LED: Easiest way to troubleshoot; Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready; PCI-E Steel Armor:Protecting VGA cards against bending and EMI; X-Boost: Great tool to boost your USB & Storage performance; Double ESD Protection: Double layer grounding motherboard mounting holes; Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency; Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function; VR Ready: Best virtual reality game experience without latency, reduces motion sickness.

Additional Specifications:

MULTI-GPU
Supports 2-Way AMD CrossFire Technology

USB
Intel Z370 Chipset
8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

CPU Support:

Processor	Core Name	CPU No	FSB	CPU Speed	L2	L3	Wattage
Core i9	Coffeelake	i9-9900T	100	2.1GHz	2MB	16MB	35
Core i9	Coffeelake	i9-9900KS	100	4.0GHz	2MB	16MB	127
Core i9	Coffeelake	i9-9900KF	100	3.6GHz	2MB	16MB	95
Core i9	Coffeelake	i9-9900KF	100	3.6GHz	2MB	16MB	95
Core i9	Coffeelake	i9-9900K	100	3.6GHz	2MB	16MB	95
Core i9	Coffeelake	i9-9900K	100	3.6GHz	2MB	16MB	95
Core i9	Coffeelake	i9-9900	100	3.1GHz	2MB	16MB	65
Core i7	Coffeelake	i7-9700T	100	2.0GHz	2MB	12MB	35
Core i7	Coffeelake	i7-9700KF	100	3.6GHz	2MB	12MB	95
Core i7	Coffeelake	i7-9700KF	100	3.6GHz	2MB	12MB	95
Core i7	Coffeelake	i7-9700K	100	3.6GHz	2MB	12MB	95
Core i7	Coffeelake	i7-9700F	100	3.0GHz	2MB	12MB	65
Core i7	Coffeelake	i7-9700	100	3.0GHz	2MB	12MB	65
Core i7	Coffeelake	i7-8700T	100	2.4GHz	1.5MB	12MB	35
Core i7	Coffeelake	i7-8700K	100	3.7GHz	1.5MB	12MB	95
Core i7	Coffeelake	i7-8700	100	3.2GHz	1.5MB	12MB	65
Core i7	Coffeelake	i7-8086K	100	4.0GHz	1.5MB	12MB	95
Core i5	Coffeelake	i5-9600T	100	2.3GHz	1.5MB	9MB	35
Core i5	Coffeelake	i5-9600KF	100	3.7GHz	1.5MB	9MB	95
Core i5	Coffeelake	i5-9600KF	100	3.7GHz	1.5MB	9MB	95
Core i5	Coffeelake	i5-9600K	100	3.7GHz	1.5MB	9MB	95
Core i5	Coffeelake	i5-9600K	100	3.7GHz	1.5MB	9MB	95
Core i5	Coffeelake	i5-9600	100	3.1GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-9500T	100	2.2GHz	1.5MB	9MB	35
Core i5	Coffeelake	i5-9500F	100	3.0GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-9500F	100	3.0GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-9500	100	3.0GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-9400T	100	1.8GHz	1.5MB	9MB	35
Core i5	Coffeelake	i5-9400T	100	1.8GHz	1.5MB	9MB	35
Core i5	Coffeelake	i5-9400F	100	2.9GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-9400F	100	2.9GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-9400F	100	2.9GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-9400	100	2.9GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-9400	100	2.9GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-9400	100	2.9GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-8600T	100	2.3GHz	1.5MB	9MB	35
Core i5	Coffeelake	i5-8600K	100	3.6GHz	1.5MB	9MB	95
Core i5	Coffeelake	i5-8600	100	3.1GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-8500T	100	2.1GHz	1.5MB	9MB	35
Core i5	Coffeelake	i5-8500	100	3.0GHz	1.5MB	9MB	65
Core i5	Coffeelake	i5-8400	100	2.8GHz	1.5MB	9MB	65
Core i3	Coffeelake	i3-9350KF	100	4.0GHz	1MB	8MB	91
Core i3	Coffeelake	i3-9350K	100	4.0GHz	1MB	8MB	91
Core i3	Coffeelake	i3-9320	100	3.7GHz	1MB	8MB	62
Core i3	Coffeelake	i3-9300T	100	3.2GHz	1MB	8MB	35
Core i3	Coffeelake	i3-9300	100	3.7GHz	1MB	8MB	62
Core i3	Coffeelake	i3-9100T	100	3.1GHz	1MB	6MB	35
Core i3	Coffeelake	i3-9100F	100	3.6GHz	1MB	6MB	65
Core i3	Coffeelake	i3-9100F	100	3.6GHz	1MB	6MB	65
Core i3	Coffeelake	i3-9100	100	3.6GHz	1MB	6MB	65
Core i3	Coffeelake	i3-8350K	100	4.0GHz	1MB	8MB	91
Core i3	Coffeelake	i3-8300T	100	3.2GHz	1MB	8MB	35
Core i3	Coffeelake	i3-8300	100	3.7GHz	1MB	8MB	62
Core i3	Coffeelake	i3-8100T	100	3.1GHz	1MB	6MB	35
Core i3	Coffeelake	i3-8100F	100	3.6GHz	1MB	6MB	65
Core i3	Coffeelake	i3-8100	100	3.6GHz	1MB	6MB	65
Core i3	Coffeelake	i3-8100	100	3.6GHz	1MB	6MB	65
Pentium Gold	Coffeelake	G5620	100	4.0GHz	512KB	4MB	54
Pentium Gold	Coffeelake	G5600T	100	3.3GHz	512KB	4MB	35
Pentium Gold	Coffeelake	G5600F	100	3.9GHz	512KB	4MB	54
Pentium Gold	Coffeelake	G5600	100	3.9GHz	512KB	4MB	54
Pentium Gold	Coffeelake	G5500T	100	3.2GHz	512KB	4MB	35
Pentium Gold	Coffeelake	G5500	100	3.8GHz	512KB	4MB	54
Pentium Gold	Coffeelake	G5420T	100	3.2GHz	512KB	4MB	35
Pentium Gold	Coffeelake	G5420T	100	3.2GHz	512KB	4MB	35
Pentium Gold	Coffeelake	G5420	100	3.8GHz	512KB	4MB	58
Pentium Gold	Coffeelake	G5420	100	3.8GHz	512KB	4MB	54
Pentium Gold	Coffeelake	G5400T	100	3.1GHz	512KB	4MB	35
Pentium Gold	Coffeelake	G5400T	100	3.1GHz	512KB	4MB	35
Pentium Gold	Coffeelake	G5400	100	3.7GHz	512KB	4MB	54
Pentium Gold	Coffeelake	G5400	100	3.7GHz	512KB	4MB	58
Celeron	Coffeelake	G4950	100	3.3GHz	512KB	2MB	54
Celeron	Coffeelake	G4930T	100	3.0GHz	512KB	2MB	35
Celeron	Coffeelake	G4930	100	3.2GHz	512KB	2MB	54
Celeron	Coffeelake	G4920	100	3.2GHz	512KB	2MB	54
Celeron	Coffeelake	G4900T	100	2.9GHz	512KB	2MB	35
Celeron	Coffeelake	G4900	100	3.1GHz	512KB	2MB	54
