Nexcom 14162 NVR Platform 10C00141605X1

  Enlarge
Nexcom 14162 Nvr Platform 10C00141605x1
Nexcom 14162 Nvr Platform 10C00141605x1
*Note this image is for descriptional purposes.
Actual product may vary.
Qty:
Item CodeDSKNVR1614162FS
BrandNexcom
ModelNViS14162_POE16-J6426
Part Number10C00141605X1
Model NameNViS 14162
CategoryNetwork Switches & Management
ConditionBrand New FS

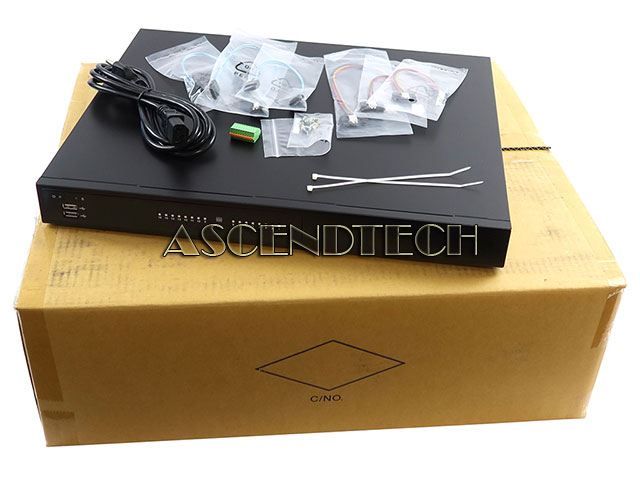

Condition DescriptionPlease note, this item comes with 2x Zip Tights, 3x HDD SATA cables, 3x SATA power cables, 1x Screw bag, GPIO Connector, 1x Power Cord and Instruction Manuals. No Hard Drive and Memory!

Description

Nexcom NViS 14162 Intel Pentium J6426 2.0GHz SRKUB Processor 16Port 10/100 PoE Desktop NVR Platform 10C00141605X1. The NVR NViS 14162 is equipped with Intel Pentium J Series , up to 4 Core and 3.0 GHz burst frequency processor, which supports up to 32GB DDR4 3200MHz memory, along with integrated graphics controller. Moreover, NViS 14162 provides high quality digital recording, real-time display and supports a wide range of megapixel IP cameras. In addition, NViS 14162 supports a wide variety of display I/O configurations, including HDMI, DVI-I, one Intel 1GbE port, one Intel 2.5GbE port, four USB 2.0, two USB 3.1 Gen1, audio interfaces, 16 channels 10/100 PoE at 16 ports support 802.3af and at 8 ports support 802.3at.

Processor/CPU: Intel Pentium J6426 (SRKUB)
Processor/CPU Speed: 2.00GHz (3.00GHz Max Turbo)
Max Supported Memory: 32GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Speed: 3200MHz

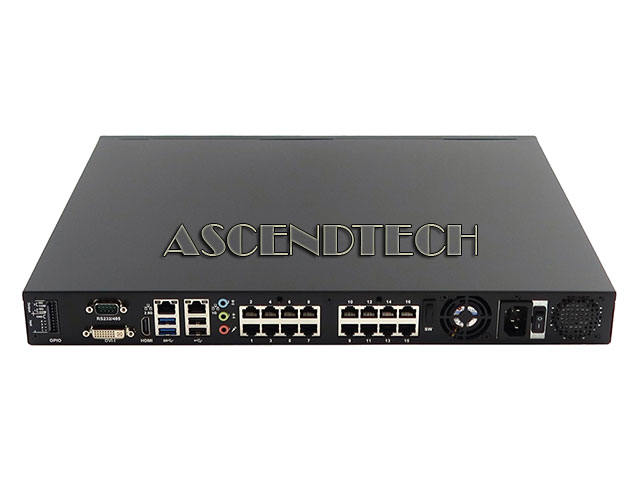

Input/Output Ports: 2x USB 2.0 ports; 2x RJ45 (1x 1GbE+1x 2.5GbE); 2x USB 3.1 Gen1 ports; 2x USB 2.0 ports; 1x HDMI 2.0b; 1x DVI-I; 1x UART ports (RS-232/485 setting from BIOS); 1x Line-in, 1x Line-out, 1x Mic-in; 16x Ethernet PoE port (802.3af/at compliance with total 240W max (PSE), 802.3af support 16 ports - 15W. 802.3at support 8 ports - 30W)
Power Input: 100V~240V 410W
Color: Black
Height: 1.75in (44.5mm)
Width: 17in (430mm)
Depth: 13.7in (348mm)
Type: Desktop NVR Platform

Additional Specifications:

Environment
Operating temperature:
Ambient with air flow: 0°C - 40°C
Storage temperature: -20°C - 70°C
Relative humidity: 10% - 90% (non-condensing)

Certifications
CE approval
FCC Class A
UL 62368 compliance

Supported Storage
2x 3.5” SATA HDD support RAID 0,1
1x 2.5” SATA HDD or SSD
1x M.2 2242 Key B SATAIII
1x eMMC 32GB (option)
