Nortel 48-Port PoE Switch AL4500A14-E6

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

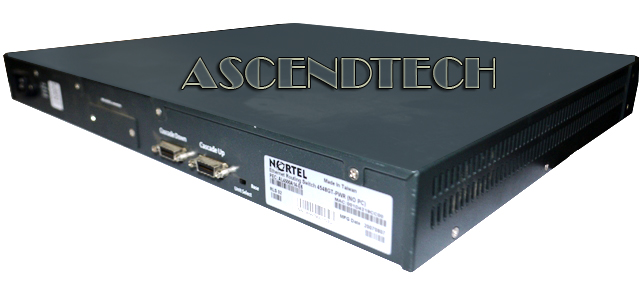

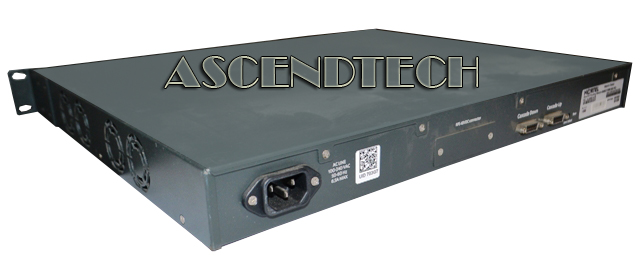

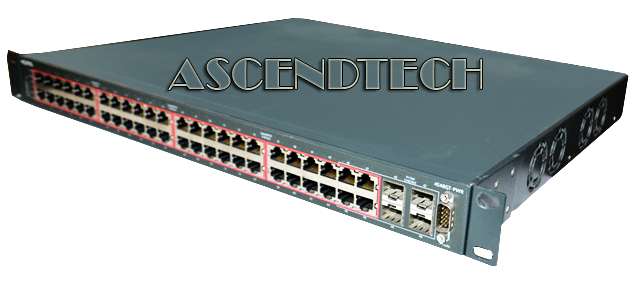

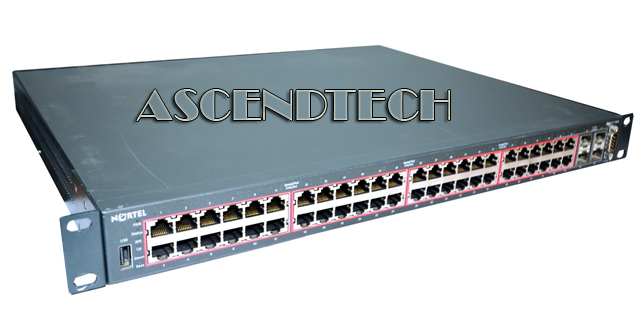

Nortel 48-Port Poe Switch Al4500a14-E6. Model: 4548Gt-Pwr
  Enlarge
Nortel 48-Port Poe Switch Al4500a14-E6. Model: 4548Gt-Pwr
Nortel 48-Port Poe Switch Al4500a14-E6. Model: 4548Gt-Pwr
Nortel 48-Port Poe Switch Al4500a14-E6. Model: 4548Gt-Pwr
Nortel 48-Port Poe Switch Al4500a14-E6. Model: 4548Gt-Pwr
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code NETSAL4500A14E6
Brand Nortel
Model 4548GT-PWR
Category Telecom Communication Cards & Boards
Condition Pre-Owned Grade B
Condition Description Please note, this unit comes with rack ears only (as pictured). No cables or any other accessories! Unit has minor scuffs and scratches, but is fully tested & completely operational.

Description

Genuine Original Nortel 48-Port Gigabit Managed PoE Ethernet Routing Switch 4548GT-PWR AL4500A14-E6. The Nortel Ethernet Routing Switch 4500 Series is a Stackable system providing high-performance, convergence-ready, secure and resilient  Ethernet switching connectivity. Available as a range of 11 model variants supporting 10/100 and 10/100/1000 switching, Power-over-Ethernet and 10 Gigabit Ethernet uplink options, the Ethernet Routing Switch 4500 Series is ideally suited for Enterprise wiring closet and other network edge deployments.

Model Number: 4548GT-PWR
Part Number: AL4500A14-E6


Specifications:

SubtypeGigabit Ethernet
Ports48 x 10/100/1000 (PoE) + 4 x shared SFP
Power Over Ethernet (PoE)PoE
Authentication MethodExtensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2), TACACS+
MAC Address Table Size8K entries
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Routing ProtocolIGMPv2, IGMP, static IP routing
Nominal VoltageAC 120/230 V
Frequency Required50/60 Hz
Cabling TypeEthernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
MAC Address Table Size8K entries
Subcategorynetwork hubs and switches
FeaturesARP support, BOOTP support, port mirroring, trunking, DHCP snooping, IPv6 support, Jumbo Frames support, MAC address filtering, Quality of Service (QoS), VLAN support, auto-negotiation, flow control
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3af
Remote Management ProtocolHTTP, HTTPS, RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
InterfaceEthernet 10Base-T/100Base-TX/1000Base-T, USB, console
Connector Type4 pin USB Type A, 9 pin D-Sub (DB-9), RJ-45, SFP (mini-GBIC)
Min Operating Temperature32 °F
Max Operating Temperature122 °F
Humidity Range Operating5 - 85%
Width17.2 in
Depth14.5 in
Height1.7 in
Type10/100/1000 (PoE)





Features:

  • Resilient — Fail-safe Stacking, distributed trunking and power redundancy Efficient — Reduced power consumption, simplified converged deployments through PoE, advanced QoS and IP Phone port auto-configuration;
  • Powerful — Wire-speed performance, high-capacity Stacking; 40Gbps per Switch and up to 320Gbps per Stack, and up to 384 ports;
  • Secure — Comprehensive standards-based 802.1X, advanced filtering and Nortel’s Secure Network Access solution;
  • Flexible — Mix-and-match Stacking capabilities;
  • Fast Ethernet and Gigabit Ethernet in the same Stack, and 1GbE and 10GbE uplinks.
