Nortel Class 2 Power Supply A0736186

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

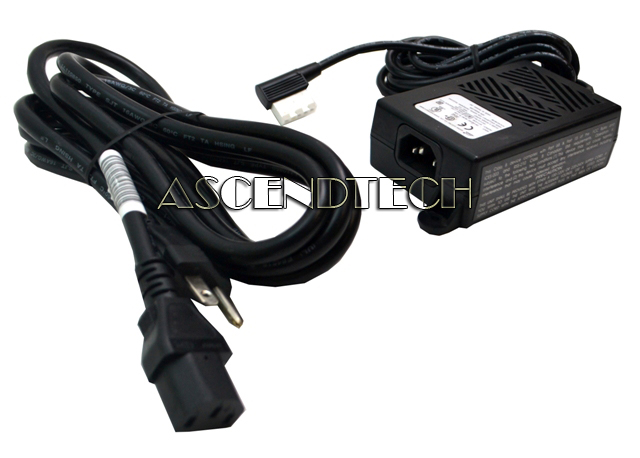

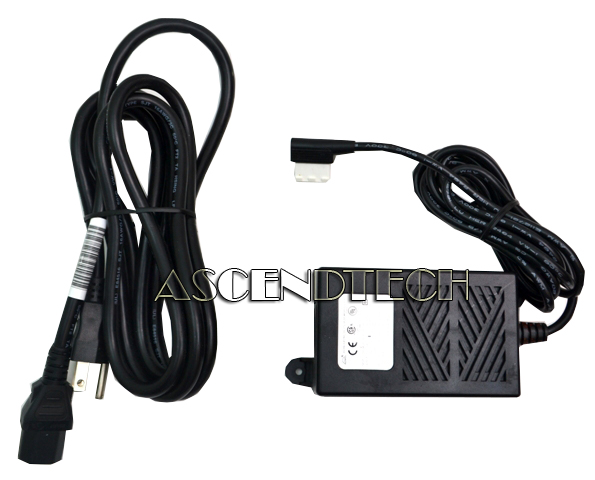

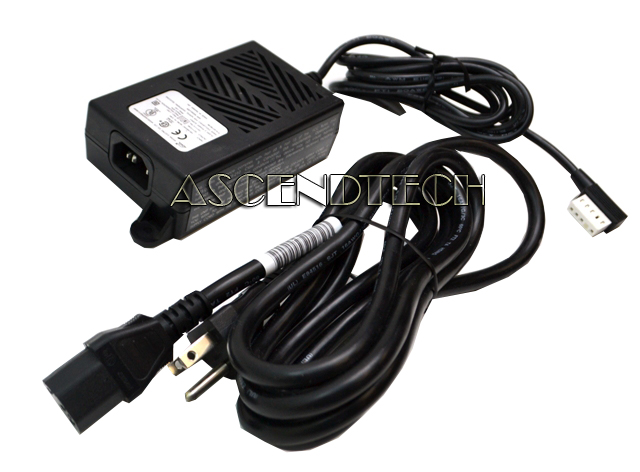

Nortel Class 2 Power Supply A0736186. Model: A0736186 8120-2371
  Enlarge
Nortel Class 2 Power Supply A0736186. Model: A0736186 8120-2371
Nortel Class 2 Power Supply A0736186. Model: A0736186 8120-2371
Nortel Class 2 Power Supply A0736186. Model: A0736186 8120-2371
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code CBLNRPSA0736186
Brand Nortel
Model A0736186 8120-2371
Category Power Cables & Power Supply Cables
Condition Like New Grade A

Description

Nortel Class 2 Power Supply with 5 Pin Molex Flat Rectangular & Black 16AWG/3C AC Power Cord 8120-2371 ASPR0515-0808R A0736186.

Part Number: A0736186
Compatible Numbers: ASPR0515-0808R  NNTM845516V6
Cable Part Number: 8120-2371




Specifications:

Input Voltage:AC 100-240VAC ~ 0.8A 50/60Hz
Output: DC 5V === 0.8A
15V === 0.75A
Pin Assignment:3, 5 = GND (RTN)
1 = 15Vdc
2 = NC Polarization Plug (closed)
4 = 5V
Connector Type:Flat rectangular 5pin 6.7x21x11.5mm
