Nvidia Quadro K610M 1GB VC 735686-001

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Nvidia Quadro K610m 1Gb Vc 735686-001. Model: N15m-Q2-A1 745325-001
  Enlarge
Nvidia Quadro K610m 1Gb Vc 735686-001. Model: N15m-Q2-A1 745325-001
Nvidia Quadro K610m 1Gb Vc 735686-001. Model: N15m-Q2-A1 745325-001
Nvidia Quadro K610m 1Gb Vc 735686-001. Model: N15m-Q2-A1 745325-001
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code VCNVDA735686001
Brand Nvidia
Model N15M-Q2-A1 745325-001
Category Laptop Video Cards
Condition Like New Grade A

Description

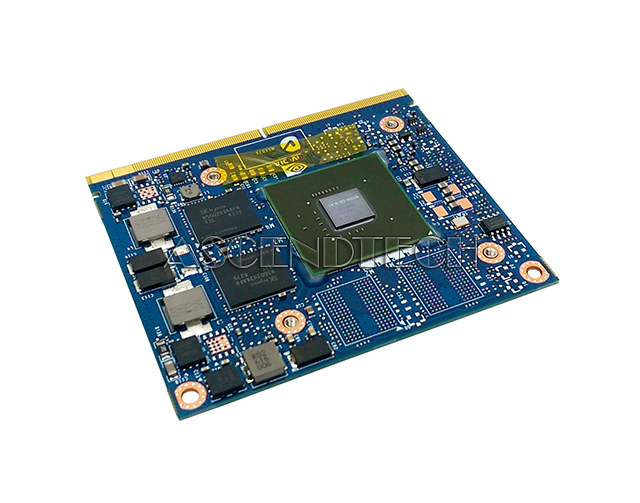

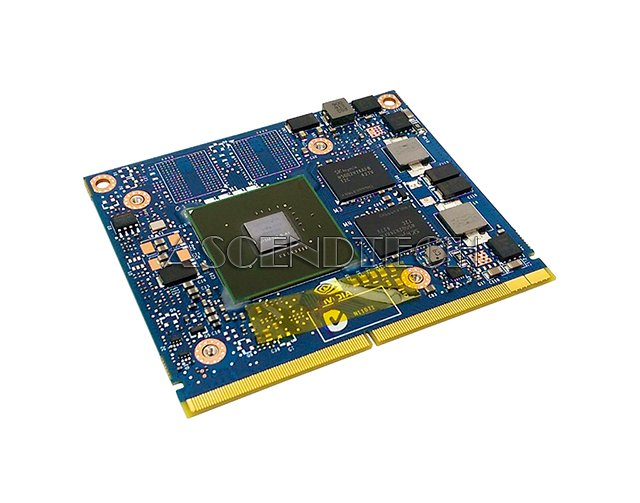

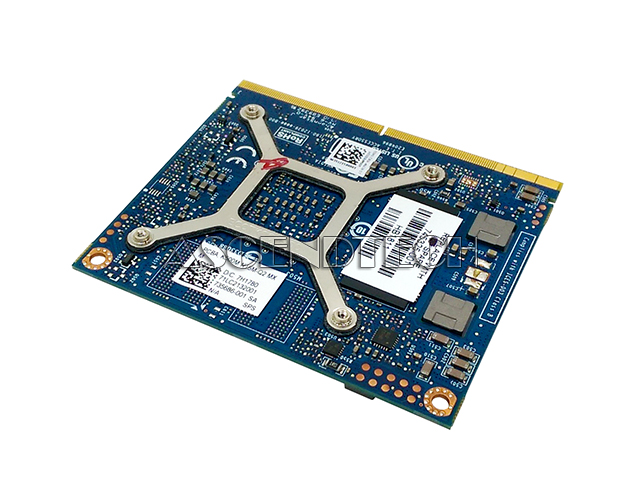

HP Zbook 15 Z1 G2 Mobile Workstation Nvidia Quadro K610M 1GB GDDR5 Laptop Graphics Video Card N15M-Q2-A1 735686-001 745325-001.

Nvidia Model Number: Quadro K610M
Nvidia Chipset Part Number: N15M-Q2-A1
HP Part Number: 735686-001
HP Spare Part Number: 745325-001
Compatible Models: HP Zbook 15 Z1 G2 Mobile Workstation







Specifications:

Form Factor:
- MXM v3.1 Type A (82mm x 70mm)
Graphics Controller:
- N15M-Q3, 954MHz core clock
- 192 CUDA cores
Bus Type:
- PCI Express Gen 3 x16 (part of MXM v3.1 connector)
Memory:
- 1GB GDDR5
- 64 bit wide interface
- 2600MHz
- 20.8 GB/s
Connectors:
- 1x MXM v3.1 connector (285-pin)
Maximum Resolution:
- 2x 3840x2160 at 60Hz digital displays
Maximum Resolution in Z1 G2 application:
- Internal Display: 2560x1440
- External Display via DP connector: 2560x1600
- External Display via optional Thunderbolt module: Two 3840x2160
Shading Architecture:
- Shader Model 5.0 support
Supported Graphics APIs:
- Full IEEE 764-2008 32-bit
- DirectX 11.1 Shader Model 5.0
- OpenGL 4.3
- Compute API support for NVIDIA CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python and Fortran
