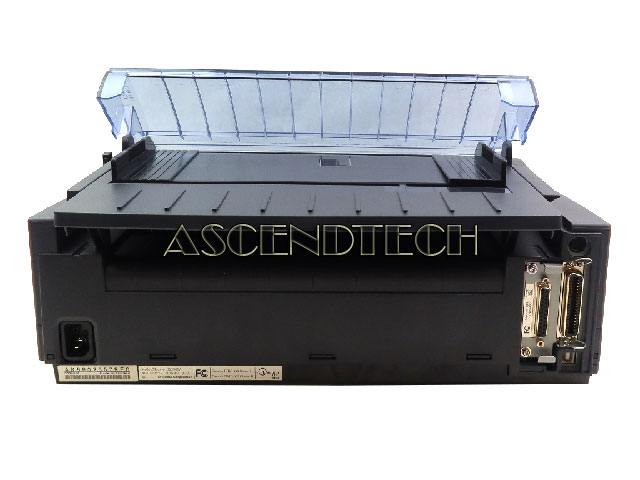

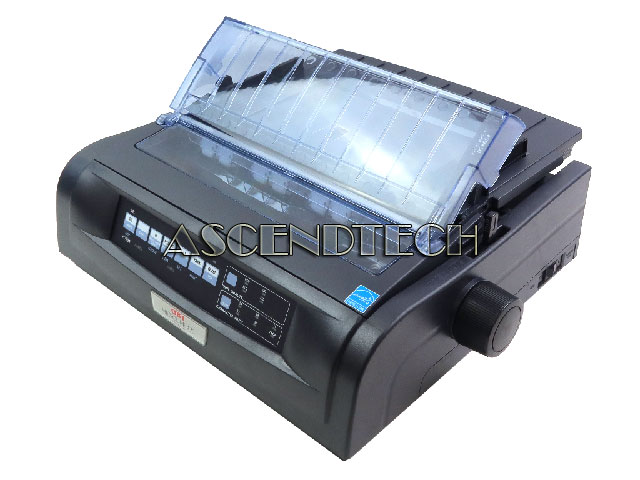

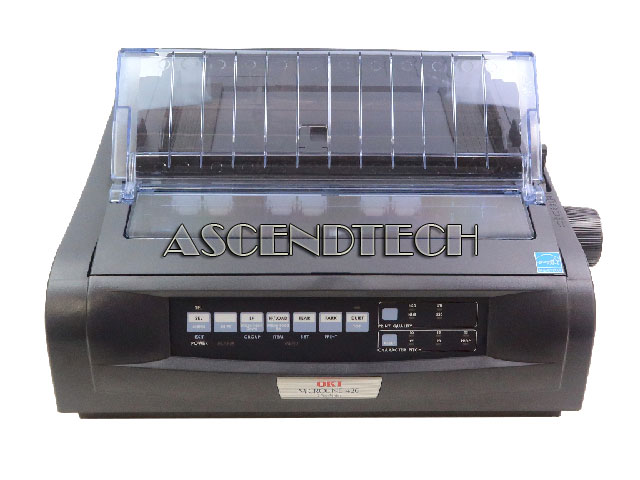

Okidata ML 420 Matrix 9-pin Printer

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Okidata Ml 420 Matrix 9-Pin Printer. Part Number: 91909701. Model: D22900a Ml420
  Enlarge
Okidata Ml 420 Matrix 9-Pin Printer. Part Number: 91909701. Model: D22900a Ml420
Okidata Ml 420 Matrix 9-Pin Printer. Part Number: 91909701. Model: D22900a Ml420
Okidata Ml 420 Matrix 9-Pin Printer. Part Number: 91909701. Model: D22900a Ml420
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code PRNOKID22900AUA
Brand Okidata
Model D22900A ML420
Part Number 91909701
Model Name ML420
Series/Family Microline 420
Category Matrix Printers
Condition Like New Grade A
Condition Description Please note, this item was our store display model and may have minor signs from shelf to shelf movement, but is fully operational and functions as intended! Comes with 1x Paper Tray, Manual & Setup Guide, but does not include a Ribbon cartridge, Cables or any other Accessories!

Description

Okidata Microline 420 Serial 9-pin Impact Dot Matrix USB Black Printer D22900A.

Maximum Resolution: 288(H) x 144(V) dpi
Input/Output Ports: 1x IEEE1284-1994 Bi-directional Parallel, USB 2.0 (Full Speed), (Optional) 100BASE-TX/10BASE-T, 1x RS-232C (25pin)
Power Input: AC 110/230 V (50/60Hz)
Color: Black
Height: 6.0” (153mm)
Width: 15.7” (398mm)
Depth: 13.6” (345mm)
Weight: 13.1 lb (5.9 kg)
Type: Matrix Printer
Supported Operating System: Windows 10 (32bit/64bit), Windows 8.1 (32bit/64bit), Windows 8 (32bit/64bit), Windows 7/7x64, Windows Vista / Vista x64, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008/2008 x64, Windows Server 2003/2003 x64, macOS 10.15/10.14/10.13/10.12, OS X 10.11/10.10/10.9/10.8/10.7, Mac OS X 10.6/10.5/10.4/10.3/10.2, MAC OS 9, iOS, Chrome OS, Linux, Solaris, Android
Features: 1x Paper Tray (p/n: PP4128-1307), Manual, & Setup Guide

Additional Specifications:

Printing Technology: Serial Impact Dot Matrix Method
Print Head: 9 Pin
Dot Wire Diameter: 0.3 mm
Print Direction: Bidirectional/Unidirectional printing, Short line-seeking printing
Line Feed Pitch: 4.23mm (1/6 "), 3.18mm (1/8 "), n x 0.35mm(n/72 ") (n=1-85), n x 0.18mm(n/144 ") (n=0-255), n x 0.12mm(n/216 ") (n=0-255)
Feed Speed: 4.5 inches per second
Feed Rate: 4.23mm(1/6”) line feed: Approx. 48 milliseconds
Paper Route: Manual (Top), Tractor feeder (Rear), Tractor feeder (Bottom), Cut sheet feeder (Rear), Roll paper stand
Character Pitch:
Super Speed Draft : 12.0 cpi
High Speed Draft : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi
Utility : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional
Near Letter Quality : 10.0 cpi, 12.0 cpi, 15.0 cpi, 17.1 cpi, 20.0 cpi, Propotional
Printing Width: 80 characters/line at ANK 10 cpi
Receive Buffer: Max. 128KB
Resident Font: High Speed Draft, Utility, NLQ Courier, NLQ Gothic, Scalable Courier, Scalable Gothic
Font Style: Bold, Double Width, Double Height, Emphasized, Italics, Over score, Underline
1-D Barcode: UPC-A, UPC-E, EAN8, EAN13, Code39, Interleaved 2 of 5 (ITF), Code128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
Paper Type: Continuous paper, Continuous copying paper, Cut sheet, Card, Envelope, Label
Paper Weight Adjustment: Manual
Paper Size :
Continuous paper: Width 3.0-10.0“ (76.2-254.0mm) x Length 3.0-14.0“ (76.2-355.6mm)
Single part paper: Width 3.9-8.5“ (99.1-216.0mm) x Length 3.9-14.02“ (99.1-356.0mm)
Multi part paper: Width 3.0-10.0“ (76.2-254.0mm) x Length 3.0-14.0“ (76.2-355.6mm)
Paper Weight:
Continuous paper : 12.0 - 23.9 lb. bond (45 - 90 gsm)
Single part paper : 12.0 - 23.9 lb. bond (45 - 90 gsm)
Multi part paper : 9.3 - 10.6 lb. bond (35 - 40 gsm)
Copy Capability: Normal print mode: original + 5sheets(Total Thickness < 0.36mm)
Operating Environment: Operating: 41 - 95 °F (5 - 35 °C), 20 - 80 %RH
Power Consumption:
Operating: Max. -W (ISO10561 (Utility, Range1) Printing Approx. 51W)
Power Save: < 1.7W
Noise Level:
Operating :Approx. 56 dBA
Quiet Mode: < 52 dBA
MTBF(Mean Time Before Failure): 20,000 hours
Ribbon Life Black: 4 million characters
Print Head Life: Approx. 600 million strokes/ pin
