PC Chips M920 Socket 423 Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

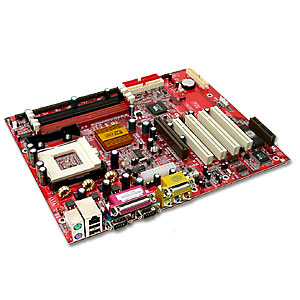

Pc Chips M920 Socket 423 Motherboard
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MB4PCCHIPSM920L
Brand Pc Chips
Model m920
Category Intel 423-Pin Motherboards

Description

PC Chips M920 Socket 423 ATX Motherboard. Here is a great way to upgrade an older system. This PC Chips mother board supports Intel Pentium 4 socket 423 processors from 1.4 GHz to 2.0 GHz, includes built-in audio and ethernet and supports either DDR or SDRAM memory modules!


Features and Specification:

  • ATX form factor
  • Socket 423
  • Supports Intel Pentium 4 1.4 ~ 2.0 GHz
  • VIA VT8753 northbridge
  • VIA VT8233 southbridge
  • 400 MHz Front Side Bus (FSB)
  • UDMA/100 support (backwards compatible)
  • Integrated AC '97 audio codec
  • Supports up to 1 GB DDR or SDR RAM
  • Integrated 10BaseT/100BaseTX Ethernet controller
  • Two (2) IDE channels supporting four (4) IDE devices
  • One (1) floppy disk controller


Expansion Slots:

  • One (1) 4x AGP slot
  • Four (4) PCI slots
  • One (1) CNR slot
  • Two (2) 168-pin SDRAM DIMM slots
  • Two (2) 184-pin DDR DIMM slots
    • (NOTE: DDR/SDRAM modules cannot be mixed)


I/O Ports:

  • Two (2) PS/2 ports
  • Two (2) 9-pin standard serial ports
  • One (1) 25-pin standard printer port
  • One (1) 15-pin standard game/midi port
  • Two (2) USB ports (has internal header for 4 additional USB ports)
  • One (1) RJ-45 standard Ethernet jack
  • Line-in, microphone and line-out jacks
