PC Chips P47G G31 LGA775 1333FSB DDR2 MB
Description

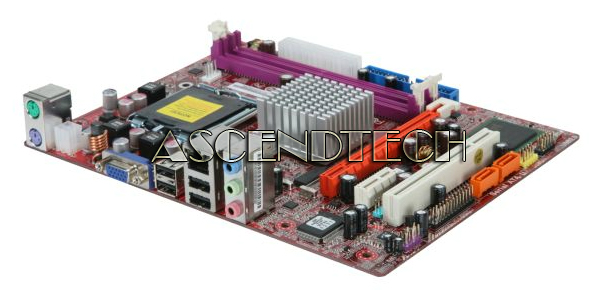

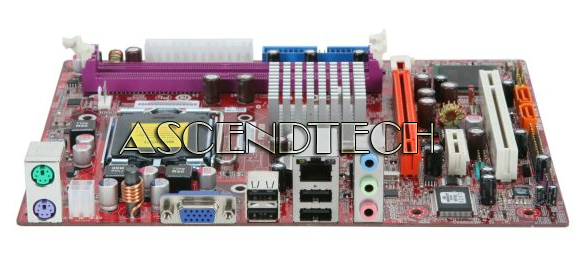

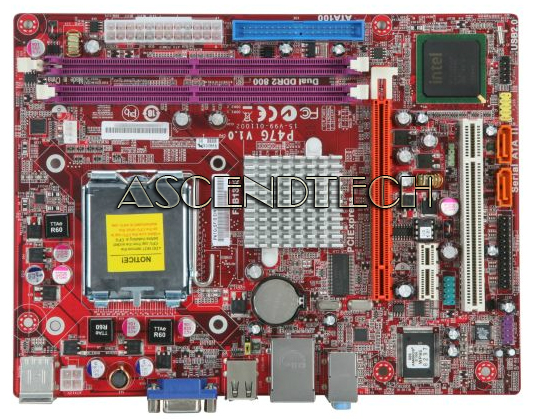

PC Chips P47G V1.0 Intel G31 Socket LGA775 DDR2 Micro-ATX Motherboard. PCCHIPS P47G V1.0 Socket LGA775 and FSB1333/DDR2 667 Motherboard supports Intel Core 2 Duo/Celeron D processors up to 1333 MHZ FSB and GMA950 embedded. Applying for mini PC, P47G/1333 V1.0 characterizes its small size but full function onboard, gives consideration to practicability and space application.
Specifications:
Model: P47G V1.0
Supported CPU: CPU Socket Type LGA 775
CPU Type: Core 2 Duo / Pentium Dual-core / Celeron Dual-core / Celeron 400 series
FSB: 1333/1066/800 MHz
Chipsets:
North Bridge Intel G31
South Bridge Intel ICH7
Memory:
Number of Memory Slots 2×240pin
Memory Standard DDR2 800/667
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots:
1 x PCI Express x16
1 x PCI Express
1 x PCI Slots
Storage Devices:
1 x ATA100 2 Dev. Max
2 x SATA 3Gb/s
Onboard Video Chipset: Intel GMA 3100
Audio Chipset: VIA VT1708B
Audio Channels: 6 Channels
Onboard LAN: LAN Chipset Atheros AR8112 10/100 LAN
Max LAN Speed 10/100Mbps
Rear Panel Ports:
2 x PS/2
Video Ports: D-Sub
4 x USB 2.0
Audio Ports: 3 Ports
Internal I/O Connectors
Onboard USB
1 x USB header support additional 2 USB2.0 ports
Form Factor: Micro-ATX Form Factor, 244*200mm
CPU Support List:
| Core 2 Duo E8500(C0) | 3.16G (6MB,1333,Socket 775) |
| Core 2 Duo E8400(C0) | 3.0G (6MB,1333,Socket 775) |
| Core 2 Duo E8300(C0) | 2.83G (6MB,1333,Socket 775) |
| Core 2 Duo E8200(C0) | 2.66G (6MB,1333,Socket 775) |
| Core 2 Duo E7300(M0) | 2.66G (3MB,1066,Socket 775) |
| Core 2 Duo E7200(M0) | 2.53G (3MB,1066,Socket 775) |
| Core 2 Duo E6850 (G0) | 3.0G (4M,1333,Socket 775) |
| Core 2 Duo E6750 (G0) | 2.66G (4M,1333,Socket 775) |
| Core 2 Duo E6700 | 2.66G (4M,1066,Socket 775) |
| Core 2 Duo E6600 (B2) | 2.4G (4M,1066,Socket 775) |
| Core 2 Duo E6550 (G0) | 2.33G (4M,1333,Socket 775) |
| Core 2 Duo E6420 (B2) | 2.13G (4M,1066,Socket 775) |
| Core 2 Duo E6320 (B2) | 1.86G (4M,1066,Socket 775) |
| Core 2 Duo E6300 (B2) | 1.86G (2M,1066,Socket 775) |
| Core 2 Duo E4500 (M0) | 2.2G (2M,800,Socket 775) |
| Core 2 Duo E4400 (L2) | 2.0G (2M,800,Socket 775) |
| Core 2 Duo E4300 (L2) | 1.8G (2M,800,Socket 775) |
| Core 2 Duo E2160 (L2) | 1.8G (1M,800,Socket 775) |
| Dual-Core E5200(M0) | 2.50G (2MB,800,Socket 775) |
| Dual-Core E2220(M0) | 2.4G (1MB,800,Socket 775) |
| Dual-Core E2200(M0) | 2.2G (1MB,800,Socket 775) |
| Dual-Core E2180(M0) | 2.0G (1MB,800,Socket 775) |
| Dual-Core E2140(L2) | 1.60G (1MB,800,Socket 775) |
| Celeron Dual-core E1600 | 2.4G (512K,800,Socket 775) |
| Celeron Dual-core E1400(M0) | 2.0G (512K,800,Socket 775) |
| Celeron Dual-core E1200(M0) | 1.6G (512K,800,Socket 775) |
| Pentium D D 951 (B1) | 3.4G (2x2MB,800,Socket 775) |
| Pentium D 945(D0) | 3.4G (4MB,800,Socket 775) |
| Pentium D 945 (C1) | 3.4G (4M,800,Socket 775) |
| Pentium D 935(D0) | 3.2G (4MB,800,Socket 775) |
| Pentium D 925 (D0) | 3.0G (2x2MB,800,Socket 775) |
| Pentium D 915 (C1) | 2.8G (4MB,800,Socket 775) |
| Pentium D 820(A0) | 2.8G (2MB,800,Socket 775) |
| Pentium D 820 (B0) | 2.8G (2MB,800,Socket 775) |
| P4 651 (B1) | 3.4G (2M,800,Socket 775) |
| P4 641 (C1) | 3.2G (2M,800,Socket 775) |
| P4 551 | 3.4G (1M,800,Socket 775) |
| P4 541 | 3.2G (1M,800,Socket 775) |
| P4 531 | 3.0G (1M,800,Socket 775) |
| P4 524 (G1) | 3.06G (1M,533,Socket 775) |
| Celeron 460(A1) | 2.4G (512KB,800,Socket 775) |
| Celeron 430(A1) | 1.8G (512KB,800,Socket 775) |
| Celeron 420(A1) | 1.6G (512KB,800,Socket 775) |
| Celeron D 365 | 3.6G (512K,533,Socket 775) |
| Celeron D 360(D0) | 3.46G (533,512K,Socket 775) |
| Celeron D 346 | 3.06G (256K,533,Socket 775) |
| Celeron D 336 | 2.8G (256K,533,Socket 775) |
| Celeron D 331 | 2.66G (256K,533,Socket 775) |
| Celeron D 326 | 2.53G (256K,533,Socket 775) |
