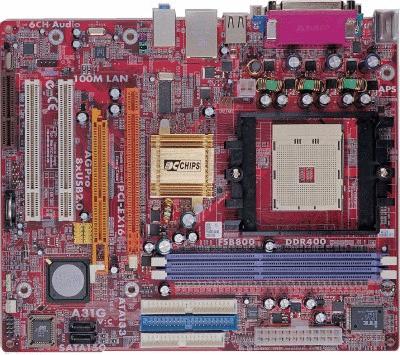

PCCHIPS A31G WITH AMD 3000+ CPU COMBO

A31G PCChips Motherboard Combo With CPU & FAN. It can also support latest AMD Athlon64 / Sempron, K8 CPUs, up to 800MHz FSB, DDR400, two Serial ATA and 8 USB 2.0 ports. With embedded Ultra256 3D Graphic engine, 64M share memory ,one PCI ExpressX16 slot and one AGPro slot, all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.

Specifications:

CPU:
Included: AMD 3000+ Processor CPU w/Fan
Socket 754 for AMD Athlon64(K8)/Sempron processor

FSB:
800 MHz

Chipset:
SiS 761GX/965L

VGA:
Embedded Mirage Graphics with 128MB share memory

Memory:
2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)
Maximum: 2GB

Expansion Slots:
1 x PCI Express x 16 slots
1 x AGPro Slot
2 x PCI slots
1 x CNR slot

LAN:
Realtek RTL8201CL 10/100Mbps Fast Ethernet PHY

Audio:
AD 1888 6-channel audio Codec
Compliant with AC'97 2.3 specification

IDE:
2 x UltraDMA 133/100/66

Back Panel I/O Ports:
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel Port
1 x Serial Port
1 x VGA port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)

Internal I/O Connectors & Headers:
24-pin ATX Power Supply connector
4-pin ATX 12V power supply connector
2 x USB 2.0 header support additional 4 USB2.0 ports
2 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CPU / SYS FAN headers
1 x IrDA for SIR header
1 x Speaker header
1 x CD in header
1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120

System BIOS:
AMI 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification

Form Factor:
Micro-ATX Form Factor, 244*200mm
