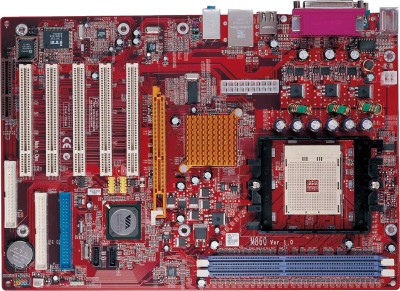

PCChips K8 M860 800FSB DDR400 AGP MBoard

M860 is one of the most advance and unique modules of PCCHIPS production in socket 754. It supports latest AMD Athlon64, K8 CPUs, up to 800MHz FSB, DDR400, two Serial ATA , 8 USB 2.0 ports and one AGP8X slot, all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.

Specifications:

CPU:
Socket 754 for AMD Athlon 64 / Sempron processor

FSB:
800 MHz

Chipset:
VIA K8T800 chipset family/VT8237

Memory:
2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)
Maximum: 2GB

Expansion Slots:
1 x AGP 8X
5 x PCI
1 x CNR slot

LAN:
VIA VT6103L 10/100Mbps Fast Ethernet PHY

Audio:
C-Media CMI9761A 6-channel audio Codec
Compliant with AC'97 2.3 specification

IDE:
2 x UltraDMA 133/100/66

Back Panel I/O Ports:
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel Port
1 x Serial Port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)

Internal I/O Connectors & Headers:
20-pin ATX power supply connector
4-pin ATX 12V power supply connector
2 x USB 2.0 header support additional 4 USB2.0 ports
2 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
CPU / SYS FAN headers
1 x IrDA for SIR header
1 x Speaker header
1 x CD in header
1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120

System BIOS:
AMI 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification

Product Type: Factory Recertified Retail Box

Form Factor:
ATX Form Factor, 305x210mm
