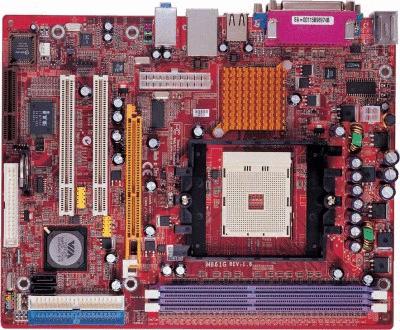

PCChips M861G S.754 DDR400 SATA MBoard

PCChips M861G 1.6A VIA K8M800/8237 Chipset DDR400 Serial ATA AGP 8X Motherboard For AMD Athlon 64 / Sempron Socket 754 800FSB Processors. M861G is one of the most advance and unique modules of PCCHIPS production. It can also support AMD Athlon64/Sempron, K8 CPUs, up to 800MHz FSB, DDR400, two Serial ATA and 8 USB 2.0 ports. With embedded UniChromeII 3D Graphic engine, 64M share memory and one AGP8X slot, all these advance supports,we believe your computer can run with best performance and bring you the great value and enjoyment.

*Please Note, This Motherboard Does Not Come With I/O Shield (Back Plate Cover) For Case. No accessories Included!

Specifications:

Processor:
• Socket 754 for AMD Athlon 64 / Sempron, K8 CPUs, support up to 800MHz FSB, DDR 400

Chipset:
• VIA K8M800 / 8237

VGA:
• Embedded UniChrome II 3D Graphics with 64M share memory

LAN:
• VIA VT6103 10/100Mbps Fast Ethernet PHY

Audio:
• ALC655 6-channel audio Codec
• Compliant with AC'97 2.3 specification

System BIOS:
• AMI 4Mb Flash ROM
• Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
• Full support for ACPI revision 1.0 specification

Memory:
• 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)
• Maximum: 2GB

Expansion Slots:
• 1 x AGP 8X
• 2 x PCI
• 1 x CNR

Form Factor & Layers:
• Micro-ATX Form Factor, 244*190mm

Back Panel I/O Ports:
• One PS/2 keyboard
• One PS/2 mouse
• One Parallel Port
• One Serial Port
• One VGA port
• Four USB 2.0 Ports
• One RJ 45 Port
• 1 x Audio I/O (Line-in, Line-out and Mic-in)

IDE:
Two UltraDMA 133/100/66

Internal I/O Connectors & Headers:
• 20-pin ATX power supply connector
• 4-pin ATX 12V power supply connector
• Two USB 2.0 header support additional 4 USB2.0 ports
• Two Serial ATA connectors
• One front panel switch/LED header
• One front panel audio header
• FAN1 / FAN2 headers
• One IrDA for SIR header
• One speaker header
• 1 x CD in header
• One floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120


CPU Support:
Sempron 2800+ (256K,800,Socket 754)
Athlon 64 3700+(Rev.CG) 2400MHz (1M,800,Socket 754)
Athlon 64 3400+(Rev.CG) 2400MHz (512K,800,Socket 754)
Athlon 64 3400+(Rev.C0) 2200MHz (1M,800,Socket 754)
Sempron 3400+ 64bit (Rev.E6) 2000MHz (256K,800,Socket 754)
Sempron 3400+ 64bit (Rev.E) 2000MHz (512K,800,Socket 754)
Sempron 3300+(Rev.E3) 2000MHz (128K,800,Socket 754)
Sempron 3300+(Rev.D0) 2000MHz (128K,800,Socket 754)
Sempron 3300+ 64bit (Rev.E6) 2000MHz (128K,800,Socket 754)
Athlon 64 3200+(Rev.CG) 2200MHz (512K,800,Socket 754)
Sempron 3100+(Rev.E3) 1800MHz (256K,800,Socket 754)
Sempron 3100+(Rev.CG) 1800MHz (256K,800,Socket 754)
Sempron 3100+ 64bit (Rev.E6) 1800MHz (256K,800,Socket 754)
Sempron 3000+(Rev.E3) 1800MHz (128K,800,Socket 754)
Sempron 3000+(Rev.D0) 1800MHz (128K,800,Socket 754)
Athlon 64 3000+(Rev.C0) 2000MHz (512K,800,Socket 754)
Sempron 3000+ 64 bit (Rev.E6) 1800MHz (128K,800,Socket 754)
Sempron 2800+(Rev.D0) 1600MHz (256K,800,Socket 754)
Athlon 64 2800+(Rev.CG) 1800MHz (512K,800,Socket 754)
Sempron 2800+ 64 bit (Rev.E6) 1600MHz (256K,800,Socket 754)
Sempron 2600+(Rev.E3) 1600MHz (128K,800,Socket 754)
Sempron 2600+(Rev.D0) 1600MHz (128K,800,Socket 754)
Sempron 2600+ 64 bit (Rev.E6) 1600MHz (128K,800,Socket 754)
Sempron 2500+ 64 bit (Rev.E6) 1400MHz (256K,800,Socket 754)
