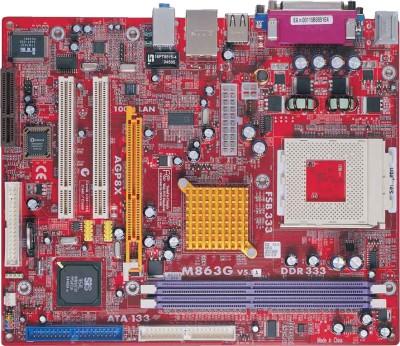

PCCHIPS M863G 5.1C WITH AMD DURON 1600

PCChips M863G 5.1C With AMD Duron 1600 Processor (CPU) SiS 741GX/964L Chipset AGP 8X DDR Motherboard Combo, OnBoard Video, Audio & LAN! Assembled & Tested!

Specifications:

Processor:
• Socket A with Mobile AMD Duron 1600Mhz, support up to 333MHz FSB

Chipset:
• SiS 741GX/964L Chipset
• Embedded Real256E 3D Graphics with 64M share memory
• C-Media CMI9738 4-channel audio Codec
• Compliant with AC97 2.2 specification

System BIOS:
• AMI 2Mb Flash ROM
• Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
• Full support for ACPI revision 1.0 specification

Memory:
• 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR333/266)
• Maximum memory: 2 GB

Expansion Slots:
• 1 x AGP 8X, 2 x PCI

I/O Interface:
Back Panel I/O Ports
• One PS/2 mouse
• One PS/2 keyboard
• One Parallel Port
• One Serial Port
• One VGA Port
• Four USB 2.0 Ports
• One RJ 45 Port
• Audio I/O (Line-in, Line-out and Mic-in)

IDE:
• Two UltraDMA 133/100/66

Onboard Ports, Headers & Others:
• 20-pin ATX power supply connector
• 4-pin ATX 12V Power Supply connector
• Two USB 2.0 header, support additional 4 USB2.0 ports
• One front panel switch/LED header
• One front panel audio header
• CPU / SYS FAN headers
• One IrDA for SIR header
• One speaker header
• One CD in header

Form Factor & Layers:
• Micro ATX Form Factor, 244*200 mm
