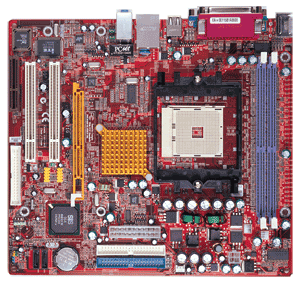

PCChips M871G S.754 DDR400 AGP 8X MBoard

PCChips M871G Version 1.5 SIS760GX/964 Chipset DDR400 SATA Socket 754 AGP 8X Motherboard With OnBoard Ultra256 3D Video Card Adapter, 6-Channel Audio & 10/100 Ethernet (LAN). M871G is one of the most advance and unique modules of PCCHIPS production. It can also support latest AMD Athlon64/Sempron, K8 CPUs, up to 800MHz FSB, DDR400, two Serial ATA and 8 USB 2.0 ports. With embedded Ultra256 3D Graphic engine, 64M share memory and one AGP8X slot, all these advance supports,we believe your computer can run with best performance and bring you the great value and enjoyment.

*Please note that this is an OEM motherboard and it does not include the Backplate (I/O Shield Cover), drivers, and manual.

Specifications:

CPU:
Socket 754 for AMD Athlon 64 / Sempron processor

FSB:
800 MHz

Chipset:
SiS 760GX/964

VGA:
Embedded Ultra256 3D Graphics with 64M share memory

Memory:
Maximum: 2GB
2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR400/333/266)

Expansion Slots:
2 x PCI slots
1 x CNR slot
1 x AGP 8X

LAN:
Realtek RTL8201BL 10/100Mbps Fast Ethernet PHY

Audio:
Compliant with AC'97 2.3 specification
C-Media CMI9761A 6-channel audio Codec

IDE:
2 x UltraDMA 133/100/66

Back Panel I/O Ports:
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel Port
1 x Serial Port
1 x VGA port
1 x RJ 45 Port
4 x USB 2.0 Ports
1 x Audio I/O (Line-in,4X Line-out and Mic-in)

Internal I/O Connectors & Headers:
20-pin ATX power supply connector
1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
1 x IrDA for SIR header
1 x Speaker header
1 x Front panel switch/LED header
CPU / SYS FAN headers
1 x CD in header
1 x Front panel audio header
4-pin ATX 12V power supply connector
2 x Serial ATA connectors
2 x USB 2.0 header support additional 4 USB2.0 ports

System BIOS:
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
AMI 2Mb Flash ROM

Form Factor:
Micro-ATX Form Factor, 244*220mm
