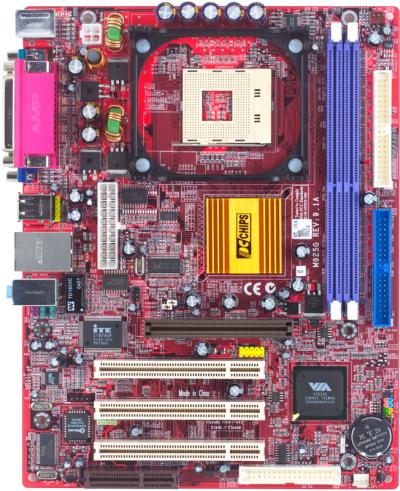

PCCHIPS M925G V9.1B S.478 FSB533 DDR266

PCCHIPS M925G V9.1B motherboard is based on the P4M266A/8235 chipset. Supporting lastest Intel Socket 478 prescott celeron processor. Up to 533MHz FSB and DDR 266, it shall deliver you both performance and great value.

Main Specifications:

CPU: Socket 478 for Intel Pentium 4, Prescott Celeron processor
FSB: 533/400 MHz
Chipset: P4M266A/8235
VGA: Embedded ProSavage8 3D Graphics w/ 32M share memory
Memory: 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR266/200)
Maximum: 2GB
Expansion Slots:
1 x AGP 4X
3 x PCI Slot
1 x CNR slot
LAN: VIA VT6103 10/100Mbps Fast Ethernet PHY
Audio:
C-Media CMI9761A 6-channel audio Codec
Compliant with AC'97 2.3 specification
IDE: 2 x UltraDMA 133/100/66
Back Panel I/O Ports:
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Parallel Port
1 x Serial Port
1 x VGA port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)
Internal I/O Connectors & Headers:
20-pin ATX power supply connector
4-pin ATX 12V power supply connector
1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
1 x IrDA for SIR header
1 x USB header support additional 2 USB2.0 ports
1 x Front panel switch/LED header
1 x CD in header
CPU / CHS FAN headers
1 x Speaker header
1 x Front panel audio header
1 x USB card reader header
System BIOS:
AMI 2Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
Form Factor: Micro-ATX Form Factor, 244*190mm
Product: Recertified
