PCCHIPS P17G 1333FSB 945GC SATA DDR2 MB

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

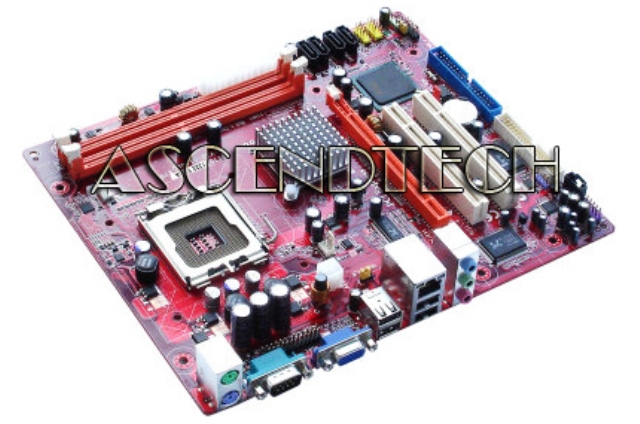

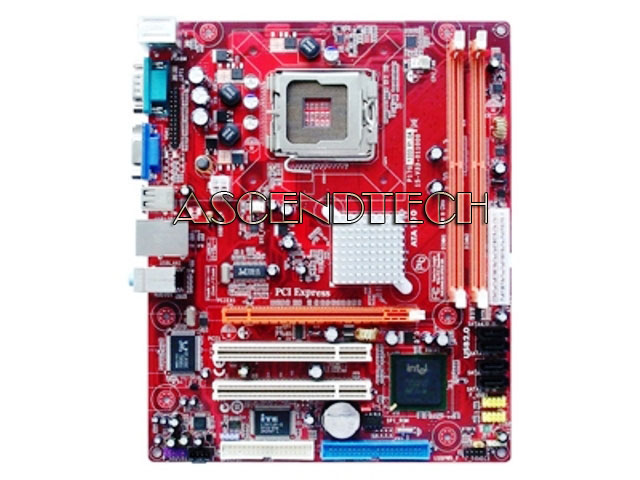

  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMB4PCCP17G10AMB
BrandPc Chips
ModelP17G/1333 V1.0A
CategoryIntel Lga775 Motherboards

Description

P17G/1333 (V1.0A) Socket LGA775 and FSB1333/DDR2 667 Motherboard.P17G V1.0A motherboard features the 945GC and ICH7 chipsets,by supporting Intel® Core™2 Duo/Celeron® D processors up to 1333 MHZ FSB and GMA950 embedded. Applying for mini PC, P17G/1333 V1.0A characterizes its small size but full function onboard, gives consideration to practicability and space application.

Specifications:

CPU: LGA775 socket for latest Intel® Core™2 Duo/ Celeron D processors

FSB: 1333*/1066/800/533 MHz(* means over-clocking)

Chipset :Intel 945GC & ICH7

VGA: Integrated Intel Graphics Media Accelerator 950 ( GMA950 )

Memory: Dual-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 2 GB
Support DDR2 667 DDR2 SDRAM

Expansion Slots: 1 x PCI Express x 16 slots
2 x PCI slots

LAN: Realtek RTL8100C 10/100Mbps Fast Ethernet controller

Audio: IDT 92HD202 6-channel High Definition audio Codec

IDE: 1 x Ultra DMA 100/66

Back Panel: I/O Ports 1 x PS/2 keyboard
1 x PS/2 mouse
1 x Serial Port
1 x VGA port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)

Internal I/O Connectors & Headers: 24-pin ATX Power Supply connector
2 x USB 2.0 header support additional 4 USB2.0 ports
4-pin ATX 12V power supply connector
4 x Serial ATA connectors
1 x Front panel audio header
1 x Front panel switch/LED header
CPU / SYS FAN headers
1 x CD in header
1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
1 x Parallel Header

System BIOS: AMI 4Mb SPI ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification

Form Factor: Micro-ATX Form Factor, 244*200mm






CPU Support List:

Core!"2 Duo E8500(C0) 3.16G (6MB,1333,Socket 775)
Core!"2 Duo E8400(C0) 3.0G (6MB,1333,Socket 775)
Core!"2 Duo E8300(C0) 2.83G (6MB,1333,Socket 775)
Core!"2 Duo E8200(C0) 2.66G (6MB,1333,Socket 775)
Core!"2 Duo E7300(M0) 2.66G (3MB,1066,Socket 775)
Core!"2 Duo E7200(M0) 2.53G (3MB,1066,Socket 775)
Core!"2 Duo E6850 (G0) 3.0G (4M,1333,Socket 775)
Core!"2 Duo E6750 (G0) 2.66G (4M,1333,Socket 775)
Core!"2 Duo E6700 2.66G (4M,1066,Socket 775)
Core!"2 Duo E6600 (B2) 2.4G (4M,1066,Socket 775)
Core!"2 Duo E6550 (G0) 2.33G (4M,1333,Socket 775)
Core!"2 Duo E6420 (B2) 2.13G (4M,1066,Socket 775)
Core!"2 Duo E6320 (B2) 1.86G (4M,1066,Socket 775)
Core!"2 Duo E6300 (B2) 1.86G (2M,1066,Socket 775)
Core!"2 Duo E4500 (M0) 2.2G (2M,800,Socket 775)
Core!"2 Duo E4400 (L2) 2.0G (2M,800,Socket 775)
Core!"2 Duo E4300 (L2) 1.8G (2M,800,Socket 775)
Core!"2 Duo E2160 (L2) 1.8G (1M,800,Socket 775)
Dual-Core E5200(M0) 2.50G (2MB,800,Socket 775)
Dual-Core E2220(M0) 2.4G (1MB,800,Socket 775)
Dual-Core E2200(M0) 2.2G (1MB,800,Socket 775)
Dual-Core E2180(M0) 2.0G (1MB,800,Socket 775)
Dual-Core E2140(L2) 1.60G (1MB,800,Socket 775)
Celeron Dual-core E1600 2.4G (512K,800,Socket 775)
Celeron Dual-core E1400(M0) 2.0G (512K,800,Socket 775)
Celeron Dual-core E1200(M0) 1.6G (512K,800,Socket 775)
Pentium D D 951 (B1) 3.4G (2x2MB,800,Socket 775)
Pentium D 945(D0) 3.4G (4MB,800,Socket 775)
Pentium D 945 (C1) 3.4G (4M,800,Socket 775)
Pentium D 935(D0) 3.2G (4MB,800,Socket 775)
Pentium D 925 (D0) 3.0G (2x2MB,800,Socket 775)
Pentium D 915 (C1) 2.8G (4MB,800,Socket 775)
Pentium D 820(A0) 2.8G (2MB,800,Socket 775)
Pentium D 820 (B0) 2.8G (2MB,800,Socket 775)
P4 651 (B1) 3.4G (2M,800,Socket 775)
P4 641 (C1) 3.2G (2M,800,Socket 775)
P4 551 3.4G (1M,800,Socket 775)
P4 541 3.2G (1M,800,Socket 775)
P4 531 3.0G (1M,800,Socket 775)
P4 524 (G1) 3.06G (1M,533,Socket 775)
Celeron 460(A1) 2.4G (512KB,800,Socket 775)
Celeron 430(A1) 1.8G (512KB,800,Socket 775)
Celeron 420(A1) 1.6G (512KB,800,Socket 775)
Celeron D 365 3.6G (512K,533,Socket 775)
Celeron D 360(D0) 3.46G (533,512K,Socket 775)
Celeron D 346 3.06G (256K,533,Socket 775)
Celeron D 336 2.8G (256K,533,Socket 775)
Celeron D 331 2.66G (256K,533,Socket 775)
Celeron D 326 2.53G (256K,533,Socket 775)
