PCCHIPS P53G P4M900CD 1066FSB DDR2 SATA

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
  Enlarge
*Note this image is for descriptional purposes.
Actual product may vary.
Item CodeMB4PCCP53GV10
BrandPc Chips
ModelP53G V.1.0
CategoryIntel Lga775 Motherboards

Description

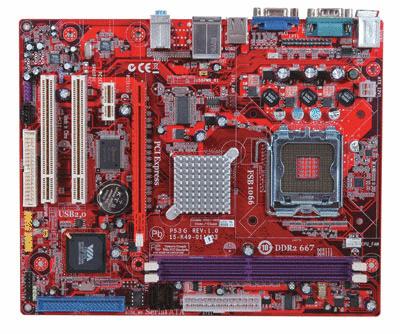

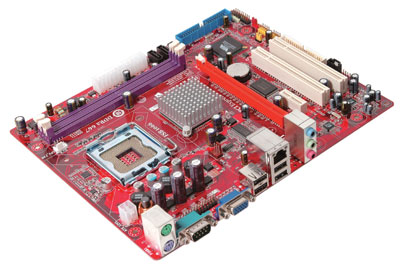

PCChips P53G P4M900CD Chipset 1066FSB DDR2 PCI-Express Motherboard. It supports Intel Core 2 Quad / Core 2 Duo / Pentium D / Pentium 4 / Celeron D processors, up to 1066MHz FSB, DDR2 667, two serial ATAII and 8 USB 2.0 ports for features. With embedded Chrome9TM HC IGP engine, 256M share memory and one PCI Express x 16 slot, all these advance supports, we believe your computer can run with best performance and bring you the great value and enjoyment.

Specifications:

CPU: LGA775 socket for latest Intel Core 2 Quad/ Core 2 Duo / Pentium D / Pentium 4 / Celeron D processor
FSB: 1066/800/533 MHz
Storage Support by:
VIA VT8237S
2 x Ultra DMA133/100/66 devices
2 x Serial ATA II devices
RAID0, RAID1 configuration
Chipset: VIA P4M900CD/VT8237S
VGA: Integrated Chrome9TM HC IGP which has up to 256MB share memory
Memory:
Single-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 4 GB
Support DDR2 667/533/400 DDR2 SDRAM
Expansion Slots:
1 x PCI Express x 16 slots
1 x PCI Express x 1 slot
2 x PCI slots
LAN: VIA VT6103L 10/100Mbps Fast Ethernet PHY
Audio: VIA 1708A 6-channel High Definition audio Codec
IDE: 2 x UltraDMA 133/100/66
Back Panel I/O Ports:
1 x PS/2 keyboard
1 x PS/2 mouse
1 x Serial Port
1 x VGA port
4 x USB 2.0 Ports
1 x RJ 45 Port
1 x Audio I/O (Line-in, Line-out and Mic-in)
Internal I/O Connectors & Headers:
24-pin ATX Power Supply connector
4-pin ATX 12V power supply connector
2 x USB 2.0 header support additional 4 USB2.0 ports
2 x Serial ATA II connectors, supporting RAID0, RAID1 configuration
1 x Front panel switch/LED header
1 x Front panel audio header
CPU / SYS FAN headers
1 x IrDA for SIR header
1 x Speaker header
1 x CD in header
1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
1 x IDE connector
1 x CLR CMOS
1 x SPDIF out header
1 x Parallel Header
System BIOS:
AMI 4Mb SPI ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
Form Factor: Micro-ATX Form Factor, 244*200mm
Product Type: Recertified
