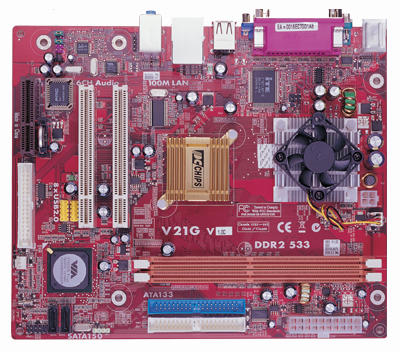

PCCHIPS V21G V1.0C WITH VIA C7 CPU COMBO

PCChips V21G V1.0C With C7 Processor (CPU) Motherboard Combo, Onboard Video Audio & LAN! Assembled & Tested! CN700/8237R+ chipset. Supporting VIA C7 processor onboard, up to 400MHz FSB, DDR2 533 with UniChrome Pro 3D Graphic engine, it shall deliver you both performance and great value.

Specifications:

CPU:
VIA C7 processor onboard
FSB:
400MHz
Chipset:
CN700/8237R+
VGA:
Embedded UniChrome Pro 3D Graphics with 64M share memory
Memory:
2 x 240-pin DIMM sockets support two DDR2 SDRAMs (DDR2 533)
Maximum: 2GB
Expansion Slots:
2 x PCI slots
1 x CNR slot
LAN:
VIA VT6103L 10/100Mbps Fast Ethernet PHY
Audio:
Realtek ALC655 6-channel audio codec
Compliant with AC'97 2.3 specification
IDE:
2 x UltraDMA 133/100/66
Back Panel I/O Ports:
1 x PS/2 keyboard
1 x Parallel Port
1 x VGA port
4 x USB 2.0 Ports
1 x Audio I/O (Line-in, Line-out and Mic-in)
1 x PS/2 mouse
1 x Serial Port
1 x RJ 45 Port
Internal I/O Connectors & Headers:
20-pin ATX power supply connector
1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
2 x USB 2.0 header support additional 4 USB2.0 ports
1 x Front panel switch/LED header
CPU / SYS FAN headers
1 x Front panel audio header
4-pin ATX 12V power supply connector
1 x CD in header
1 x Speaker header
System BIOS:
Award 4Mb Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Full support for ACPI revision 1.0 specification
Form Factor:
Flex-ATX Form Factor, 230*190mm
