Pegatron APP40-GS/ODM Motherboard

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

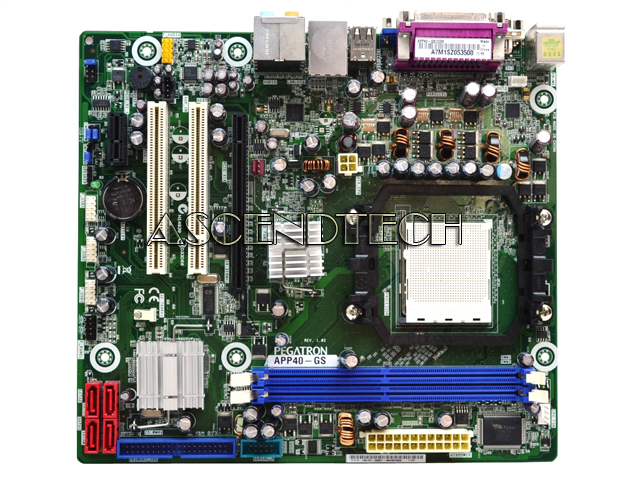

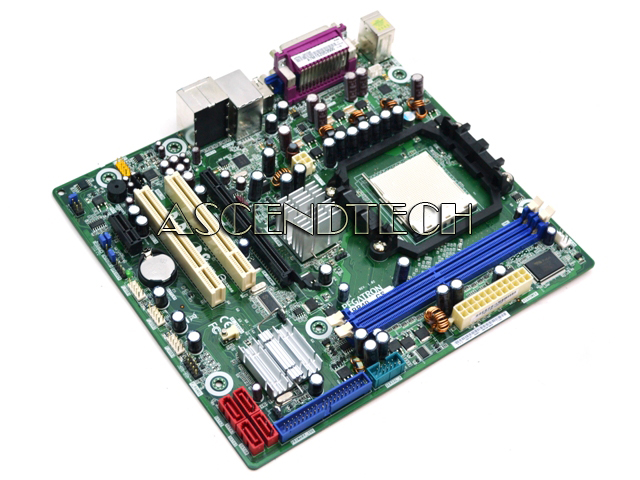

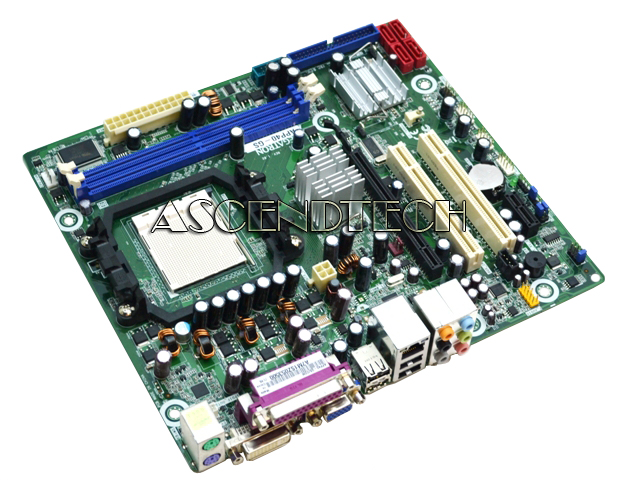

Pegatron App40-Gs/Odm Motherboard. Model: Iapp40-Gs Iapp40-Gs/Odm
  Enlarge
Pegatron App40-Gs/Odm Motherboard. Model: Iapp40-Gs Iapp40-Gs/Odm
Pegatron App40-Gs/Odm Motherboard. Model: Iapp40-Gs Iapp40-Gs/Odm
Pegatron App40-Gs/Odm Motherboard. Model: Iapp40-Gs Iapp40-Gs/Odm
Pegatron App40-Gs/Odm Motherboard. Model: Iapp40-Gs Iapp40-Gs/Odm
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code MBPEIAPP40GSODM
Brand Asus / Asustek Computer
Model IAPP40-GS IAPP40-GS/ODM
Category Amd Socket Am2+ Am3 Motherboards

Description

Pegatron APP40-GS IAPP40-GS/ODM Socket AM2 PCI-Express SATA Desktop Motherboard. Pegatron meets the current and future demands of high-performance, power embedded computing, making it ideal for communications, transaction terminal, interactive client, industrial automation applications, as well as for standard home use.

Pegatron Part Number: IAPP40-GS IAPP40-GS/ODM
Compatible Part Numbers: 69M20BF00B06

* Please Note: This is an OEM motherboard and it does not come with rear I/O shield also known as back-plate cover; this part is not needed and you can still install the board in standard ATX case.







Specifications:

Form Factor

microATX (mATX, 244 mm x 244 mm)

CPU

Socket AM2

Memory Upgrade Information

Memory upgrade information:
- 2x DDR2

Expansion Slots

- 1x PCIe x16
- 1x PCIe x1
- 2x PCI

I/O Ports

Internal I / O Connectors:
- 4x SATA2
- 1x IDE
- 24 pin ATX Power Connector
- 4 pin ATX 12V Power connector
- 3x Front USB / 1x Front Audio

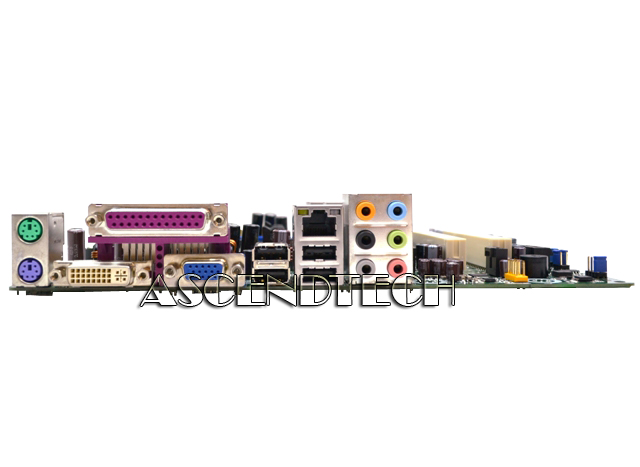

Back I/O ports:
- 1x VGA D-Sub (15-pin)
- 1x DVI-D
- 4x USB 2.0
- 1x PS / 2 Keyboard
- 1x PS / 2 Mouse
- 1x parallel
- 1x LAN
- 1x 7.1 -Channel Audio
