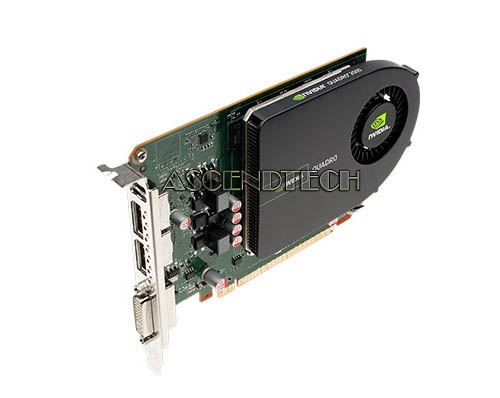

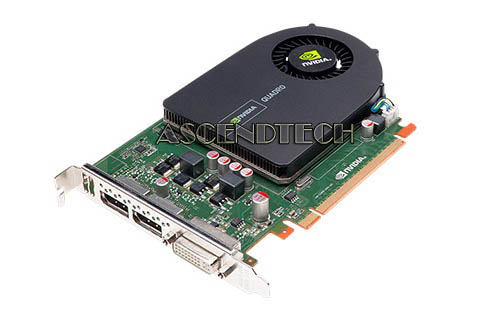

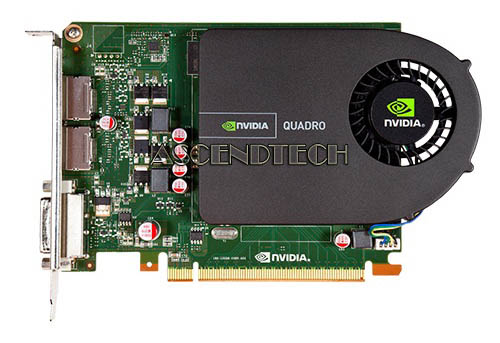

PNY NVIDIA QUADRO 2000 1GB GRAPHICS CARD

PNY NVIDIA Quadro 2000 1GB GDDR5 128-bit PCI Express 2.0 x16 HDCP Ready Professional Graphics Workstation Video Card with DVI and Dual Display Ports. NVIDIA® Quadro® 2000 by PNY - Maximizes productivity for engineers and designers. Delivering the industry's best-in-class performance across leading CAD and DCC applications, the NVIDIA Quadro 2000 by PNY mid-range professional graphics solution features Scalable Geometry Engine™ technology and 1GB of GDDR5 memory for fast processing of complex models and scenes. The NVIDIA Quadro 2000 provides an affordable, high performance experience that can transform how engineers, designers and animators work every day, supports Microsoft DirectX 11.0, OpenGL 4.1 and Shader Model 5.0 hardware acceleration, and drives a variety of displays including: CRTs, Digital Flat Panels, Projectors, and HDTVs.

GPU Memory Size: 1 GB GDDR5
Memory Interface: 128-bit
Memory Bandwidth: 41.6 GB/s
CUDA Parallel Processing Cores: 192

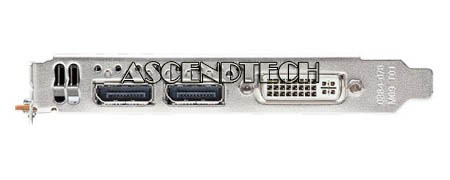

Display Connectors: DVI-DL + DP +DP
PNY Part #: VCQ2000-PB

Features and Benefits:

GPU FEATURES:

• Next-Generation NVIDIA CUDA Architecture
  Breakthrough NVIDIA Fermi architecture incorporates CUDA parallel computing capabilities and advanced visualization to deliver performance that greatly accelerates professional workflows.
• NVIDIA Scalable Geometry Engine
  Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.
• 1.0 GB of GDDR5 Memory with Ultra-Fast Bandwidth
  Large 1.0 GB GPU memory with fast bandwidth for accelerating the display of complex models and scenes, as well as performing complex computation on large datasets.
• NVIDIA Parallel DataCache
  Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exceptional throughput, accelerating features such as real-time ray tracing, physics and texture filtering.
• NVIDIA GigaThread™ Engine
  Provides up to 10x faster context switching compared to previous generation architectures, concurrent kernel execution, and improved thread block scheduling.
• Fast 3D Texture Transfer
  Fast transfer and manipulation of 3D textures resulting in more interactive visualization of large volumetric datasets.
• Hardware 3D Window Clipping
  Hardware accelerated clip regions (data transfer mechanism between a window and the frame buffer) improve overall graphics performance by increasing transfer speed between color buffer and frame buffer.
• Unified Driver Architecture (UDA)
  The NVIDIA UDA guarantees forward and backward compatibility with software drivers. Simplifies upgrading to a new solution because all Quadro products work with the same driver software.
• Ultra-Quiet Design
  Acoustics lower than 28db for an ultra-quiet desktop environment.


• Full-Scene Antialiasing (FSAA)
  Up to 64X FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes.
• GPU Tessellation with Shader Model 5.0
  Quadro Tessellation Engines automatically generates finely detailed geometry, for cinematic quality environments and scenes, without sacrificing performance.
• 16K Texture and Render Processing
  The ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.
• NVIDIA High Precision High Dynamic Range (HDR) Technology
  Sets new standards for image clarity and quality through floating point capabilities in shading, filtering, texturing, and blending. Enables unprecedented rendered image quality for visual effects processing.

• High-Quality Display Connectors
  Attaches to ultra-high-resolution digital panels producing phenomenal photorealistic image quality from a range of display connectors. The Quadro 2000 GPU simultaneously supports two active display channels including DVI-DL and DisplayPort at resolutions up to 2560 x 1600 at 60Hz. The included DVI to VGA adapter supports resolutions up to 2048 x 1536 at 85Hz. HDMI 1.3a compliant displays can be driven with a 3rd party adapter (must be purchased separately) at resolutions up to 1920 x 1080 at 60Hz.
• 30-Bit Color Fidelity
  30-bit color fidelity (10-bits per color) enables billions rather than millions of color variations for rich, vivid image quality with the broadest dynamic range.
• NVIDIA 3D Vision Pro™ Stereoscopic Solution
  Advanced active shutter glasses deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. RF technology enables a range of environments ranging from collaborative work spaces to theaters. 3D Vision Pro solution sold separately.
• OpenGL Quad Buffered Stereo Support
  OpenGL Quad Buffered Stereo offers professional applications the capability of smooth and immersive 3D Stereo experience.

• Programming the CUDA Parallel Computing Architecture
  General purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA is accelerating techniques like ray tracing, video and image processing, and computation fluid dynamics.
• Cg Programming
  Programmable GPU leverages Cg high-level, open-standard shading language to enable the creation and integration of real-time photorealistic effects into 3D models, scenes and designs.
• Microsoft Windows 7 Support
  Take advantage of all the new and compelling features included with Windows 7, delivering unprecedented application performance, advanced visual realism, and premium reliability with superior application compatibility on mobile and desktop workstations.
• Shader Model 5.0 Programmability
  Infinite length vertex programs and dynamic flow control remove the previous limits on OpenGL and DirectX shader programs, delivering sophisticated effects never before imagined.
• NVIDIA Graphics API Extensions
  NVIDIA provides a set of extensions to standard graphics APIs for Linux and Windows, enabling applications to take maximum advantage of state-of-the-art GPU capabilities.
• NVIDIA Application Acceleration Engines Support
  Supercharge application performance and capabilities with highly optimized software modules, including SceniX and OptiX for advanced creative and investigative possibilities.
• NVIDIA Mosaic Mode Technology
  NVIDIA Mosaic Mode Panoramic Technology enables transparent scaling of any application across up to 16 display channels, while delivering full performance.
• NVIEW Multi-Display Technology
  The NVIDIA NVIEW advanced Display Software delivers maximum flexibility for single-large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.

Specifications:

• Scalable geometry architecture
• Hardware tessellation engine
• NVIDIA GigaThread engine
• OpenGL 4.1, DirectX 11.0 and Shader Model 5.0
• Optimized compiler for Cg and Microsoft HLSL
• Up to 16K x16K texture and render processing
• Transparent multisampling and super sampling
• 16x angle independent anisotropic filtering
• 128-bit floating point performance
• 32-bit per-component floating point texture filtering and blending
• 64x full scene antialiasing (FSAA)
• Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
• DivX (version 3.11 and later), and Flash (10.1 and later)
• Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)

• API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
• NVIDIA Parallel DataCache™ hierarchy (configurable L1 and unified L2 caches)
• 64 KB of RAM (configurable partitioning of shared memory and L1 cache)
• Fully IEEE 754-2008 compliant fast 32- and 64-bit double precision floating point computation
• Dual Warp Scheduler (schedules and dispatches simultaneously instructions from two independent warps)

• 30-bit color (10-bit per each red, green, blue channel)
• Support for any combination of two connected displays
• Dual DisplayPort resolution up to 2560 x 1600 at 60Hz or 1920 x 1200 at 120Hz
• DisplayPort 1.1a with HDCP support
• Single DVI-DL output up to 2560 x 1600 at 60Hz or 1920 x 1200 at 120Hz
• DisplayPort to VGA adapter sold separately, PNY PN 91007808-T
• DisplayPort to DVI-DL adapter sold separately, PNY PN 91008126
• DisplayPort to HDMI adapters available from 3rd parties
• Full OpenGL quad buffered stereo support
• NVIDIA 3D Vision™ Pro support via USB
• Underscan/overscan compensation and hardware scaling
• NVIDIA Mosaic™ multi-display technology
• NVIDIA nView multi-display technology

• Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), andMPEG-2/MPEG-4 AAC
• Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
• Word sizes of 16-bit, 20-bit, and 24-bit

• Windows 7, Vista, XP SP3, Linux, or Solaris
• PCIe x16 expansion slot
• 1GB or more of system memory, 2GB recommended
• 200MB of available disk space for full driver installation
• Blu-ray, DVD-ROM or CD-ROM drive
• DisplayPort, DVI or VGA compatible display(s)
