RAD 2-Port Interface Module DXC-DHS1-R
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code NETMODRADDXCMT1
Brand Rad Data Communications
Model DXC-M-T1 DXC-DHS1-R
Category Network Ethernet / Lan Cards
Condition Like New Grade A
Description

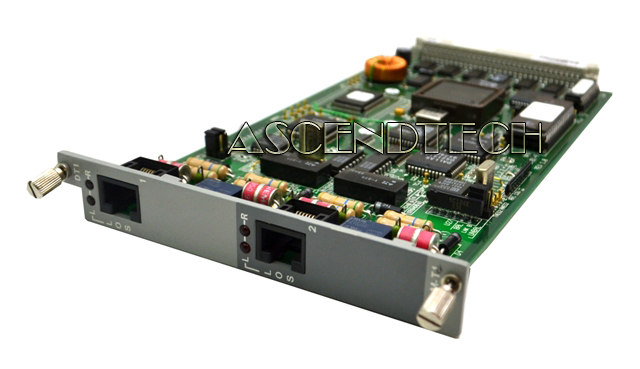

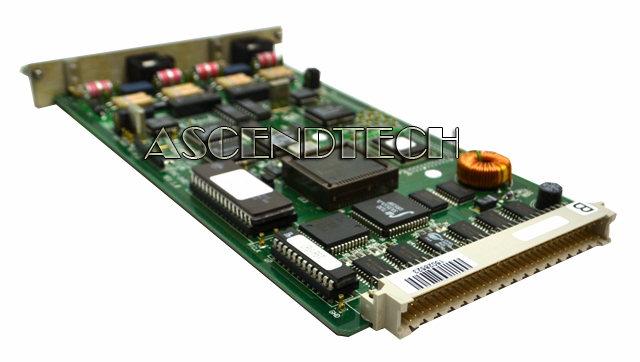

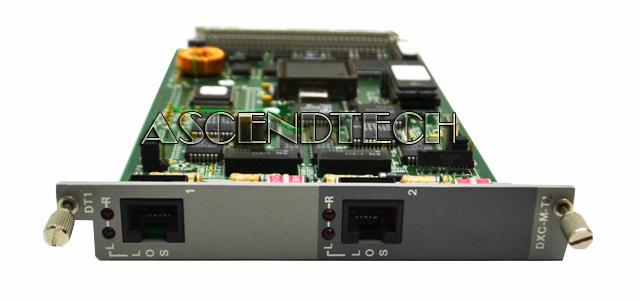

Genuine Original RAD Data Communications 2-Port Copper T1 Link Interface Module Card for the DXC Family of Modular Cross-Connects DXC-M-T1 DXC-DHS1-R. DT1B is a two-port T1 link module for use with RAD’s modular Digital Cross-Connect units DXC-8R, DXC-10A, DXC-30, and DXC-30E.
Model Number: DXC-M-T1
Part Number: DXC-DHS1-R
Compatible Models: DXC-8R DXC-10A DXC-30 DXC-30E
Specifications:
| Number of Ports | Two per module |
| Data Rate | 1.544 Mbps |
| Compliance | AT&T TR-62411, ANSI T1.403, ITU-T Rec. G.703, G.704 |
| Framing | D4 (SF), ESF, unframed |
| Line Code | AMI |
| Impedance | 100Ω, balanced |
| Signal Level | Receive: 0 to –36 dB with CSU 0 to –10 dB without CSU Transmit: ±3V (±10%), balanced Levels with CSU: 0 dB, -7.5 dB, -15 dB, -22.5 dB Levels without CSU: Adjustable to be measured at 0 to 655 ft |
| Connectors (per port) | RJ-45, 8-pin, balanced |
| Timeslot Allocation | User-defined, any timeslot to any timeslot mapping |
| Timing | Receive: derived from a selected data port, can be used as external source for DXC master timing Transmit: locked to master DXC timing source |
| Jitter Performance | Per AT&T TR-62411 and ETSI TBR 12/13 |
| Diagnostics | Local and remote loopbacks on each module port Network line loopback (LLB) Payload loopback (PLB) BER testing |
| Indicators | L LOS (red) – Local port frame synchronization loss R LOS (red) – Remote port frame synchronization loss |
| Power Consumption | 3W at 0.6A |
