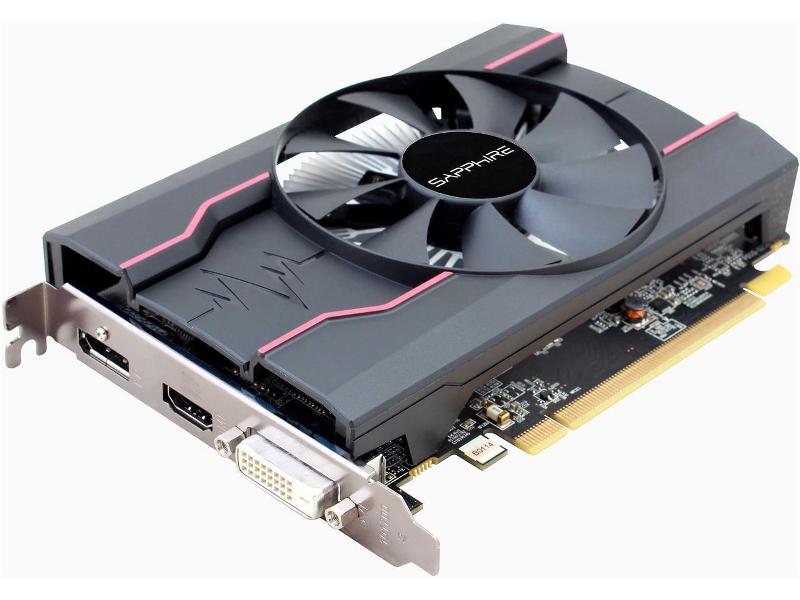

Radeon RX 550 DX12 4GB 128-Bit VIDEO

Model

100414P4G-2L

Chipset

Chipset Manufacturer

AMD

GPU Series

AMD Radeon RX 500 Series

GPU

Radeon RX 550

Boost Clock

1206 MHz

Stream Processors

512 Stream Processors

Memory

Effective Memory Clock

1500 MHz, 6000 MHz Effective

Memory Size

4GB

Memory Interface

128-Bit

Memory Type

GDDR5

3D API

DirectX

DirectX 12

OpenGL

OpenGL 4.5

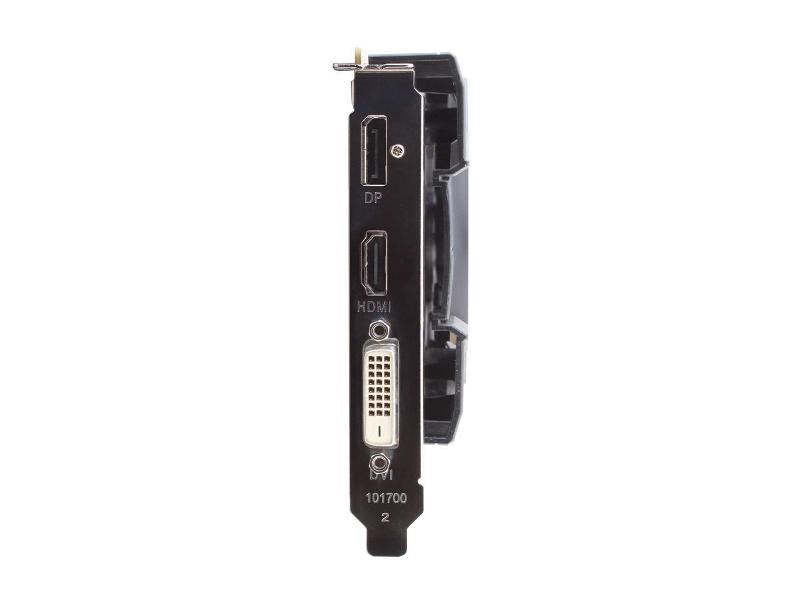

Ports

HDMI

1 x HDMI

Multi-Monitor Support

3

DisplayPort

1 x DisplayPort 1.4

DVI

1 x DL-DVI-D

Details

Max Resolution

5120 x 2880

Eyefinity Support

Yes

Cooler

Single Fan

Operating Systems Supported

Windows 10
Windows 7

System Requirements

Power Consumption: <65W

400-Watt Power Supply (Suggestion)
Blue-ray / HD DVD playback requires Blu-ray / HD DVD drive
PCI Express 2.0 or higher version based PC is required with one X16 lane graphics slot available on the motherboard in order for the card to be compatible with

Dual-Link DVI Supported

Yes

Features

Features

FreeSync Technology

AMD Eyefinity

AMD Xconnect ready

DirectX 12 Optimized

HDR Ready

Frame Rate Target Control

Intelligent Fan Control III

Radeon Chill

Radeon Relive

Form Factor & Dimensions

Max GPU Length

158 mm

Card Dimensions (L x H)

6.22" x 4.41"

Slot Width

1.5-Slot
