Samsung 10.1" TFT LED LCD Screen Panel

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.

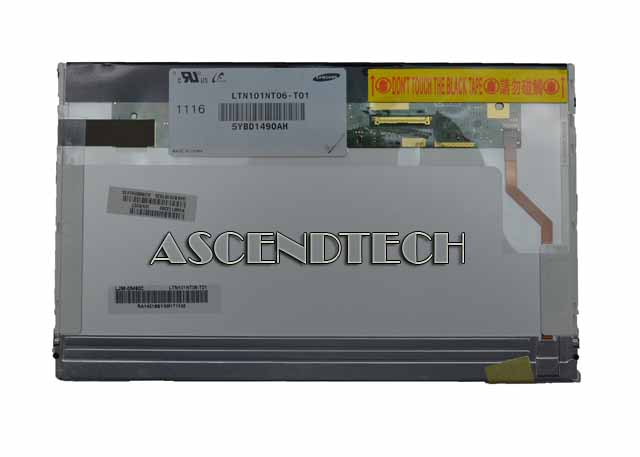

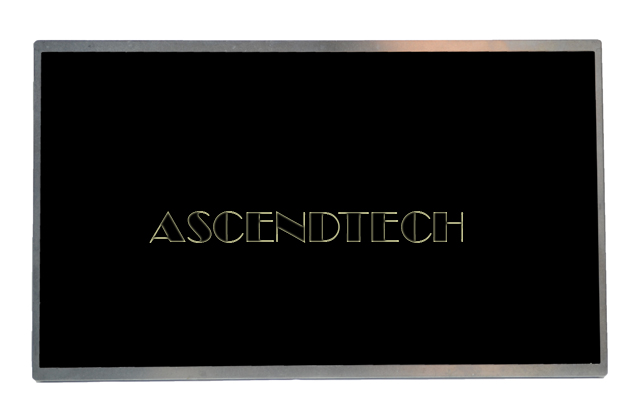

Samsung 10.1" Tft Led Lcd Screen Panel. Model: Ltn101nt06-T01 Display
  Enlarge
Samsung 10.1" Tft Led Lcd Screen Panel. Model: Ltn101nt06-T01 Display
Samsung 10.1" Tft Led Lcd Screen Panel. Model: Ltn101nt06-T01 Display
Samsung 10.1" Tft Led Lcd Screen Panel. Model: Ltn101nt06-T01 Display
Samsung 10.1" Tft Led Lcd Screen Panel. Model: Ltn101nt06-T01 Display
*Note this image is for descriptional purposes.
Actual product may vary.
Item Code LTPLCD101NT06T0
Brand Samsung
Model LTN101NT06-T01 Display
Category Laptop Lcd Screens & Digitizers

Description

The Samsung LTN101NT06-T01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 10.1" contains1024 x 600 pixels and can display up to 262,144 colors. 6 O'clock direction is the optimum viewing angle.


Features:

• High contrast ratio
• WSVGA (1024 x 600 pixels ) resolution
• Fast Response
• LED Back Light with embedded LED Driver
• DE (Data enable) only mode
• 3.3V LVDS Interface
• Onboard EEDID chip
• Green product (RoHS compliant)


Specifications:

Display area: 222.72(H) X 125.28(V) (10.1”diagonal)
Driver element: a-si TFT active matrix
Display colors: 262,144
Number of pixel: 1024 x 600
Pixel arrangement: RGB vertical stripe
Pixel pitch: 0.2175(H) x 0.2088(V)
Surface treatment: Haze 25, Hard-Coating 3H
