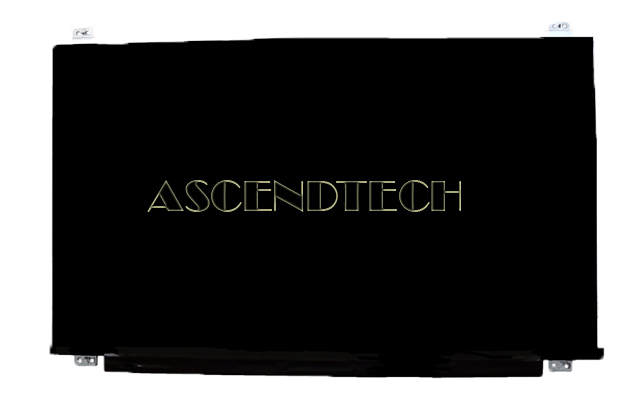

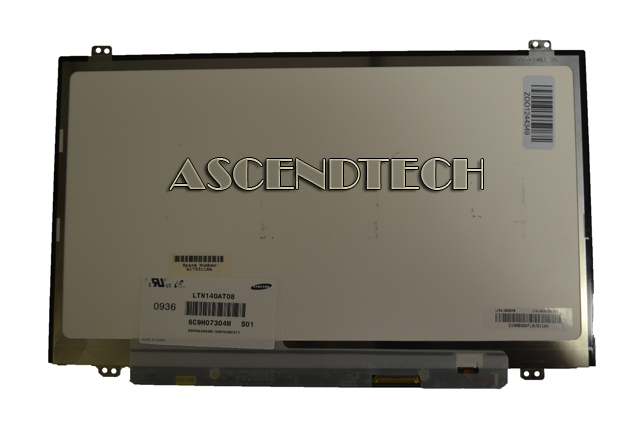

Samsung 14" Laptop TFT LED LCD WXGA
We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Item Code LTPLCDLTN140AT8
Brand Samsung

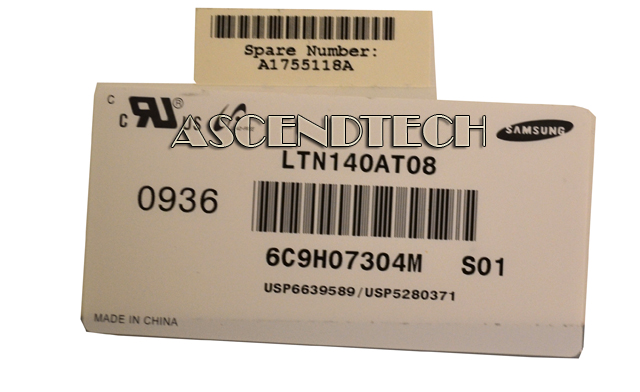

Model LTN140AT08 S01 Panel
Category Laptop Lcd Screens & Digitizers
Description
Samsung LTN140AT08-S01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 14.0" contains 1,366 x 768 pixels and can display up to 262,144 colors. 6 O'clock direction is the Optimum viewing angle.
Specifications:
Display area: 309.4(H) x 173.95(V) (14.0” diagonal ) mm
Driver element: a-Si TFT active matrix
Display colors: 262,144
Number of pixel: 1366 x RGB(3) x 768 pixel 16 : 9
Pixel arrangement: RGB vertical stripe
Pixel pitch: 0.2265(H) x 0.22265(V) (TYP.) mm
Display Mode: Normally white
Surface treatment: Haze 0, Hard-Coating 3H
