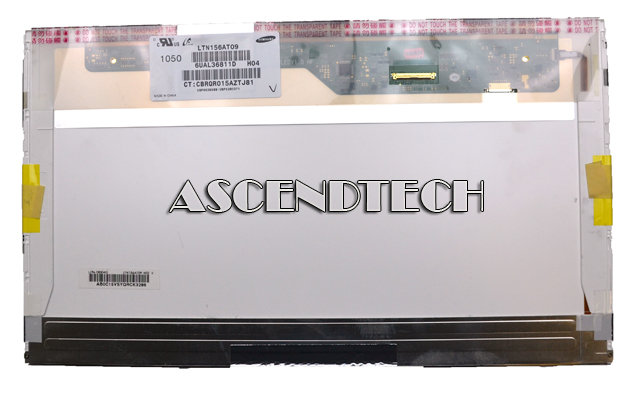

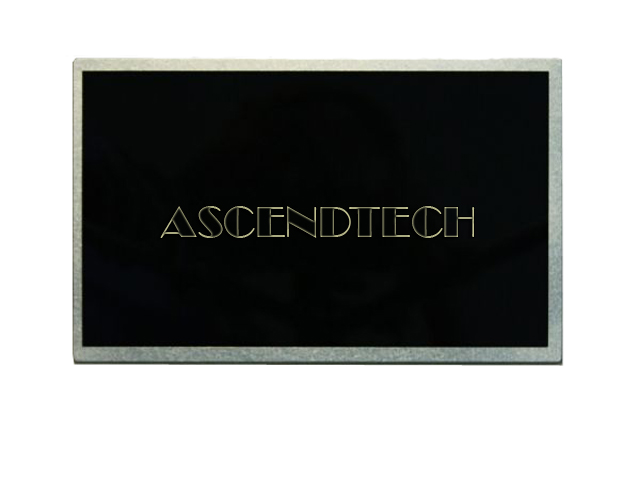

Samsung 15.6" TFT LED LCD Screen Panel

Samsung LTN156AT09 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 15.6" contains 1366 x 768 pixels and can display up to 262,144 colors. 6 O'clock direction is the optimum viewing angle.

** Please Note, This item was removed from a working unit, it has minor scuffs and scratches, but is fully operational and functions as intended!

Features:

• High contrast ratio
• HD (1366 x 768 pixels ) resolution
• High Color Gamut (Typical 60%)
• Low power consumption
• Fast response time
• LED Back Light with embedded LED Driver
• DE (Data enable) only mode
• 3.3V LVDS Interface
• Onboard EEDID chip
• Green product (RoHS and BFR/PVC free compliance)

Specifications:

Surface treatment: Haze 0, Hard-Coating 3H
Display Mode: Normally white
Pixel pitch: 0.252(H) x 0.252(V) (TYP.) mm
Pixel arrangement: RGB vertical stripe
Number of pixel: 1366 x 768 pixel 16:9
Display colors: 262,144
Driver element: a-Si TFT active matrix
Display area: 344.232(H) x 193.536(V) ( 15.6” HD diagonal ) mm
