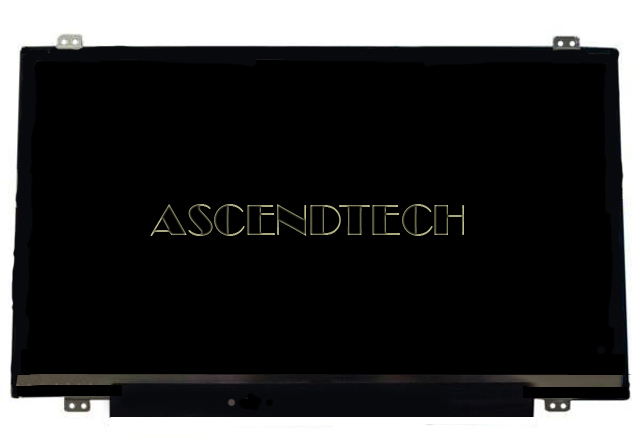

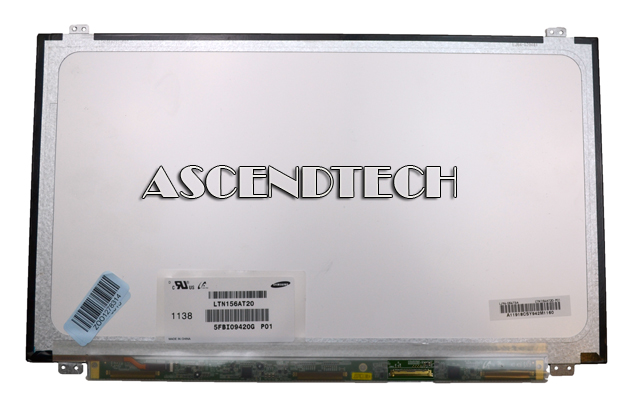

Samsung 15" Laptop LCD Screen LTN156AT20

Samsung LTN156AT20-P01 is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight system. The resolution of a 15.6" contains1366 x 768 pixels and can display up to 262,144 colors. 6 O'clock direction is the Optimum viewing angle.

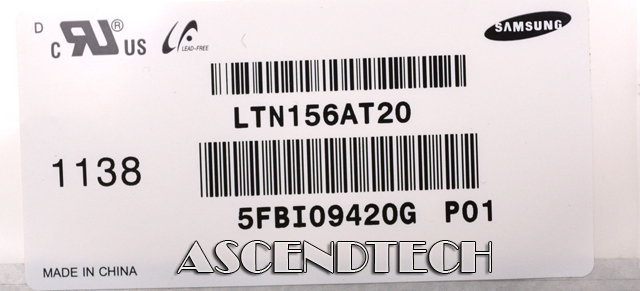

Part Number: LTN156AT20-P01
Compatible Part Numbers: AU Optronics B156XW04 / v.0 LTN156AT20-P01 LTN156AT20-W01

Features:

■ High contrast ratio, high aperture structure
■ 1366 x 768 pixels resolution (16:9)
■ Fast Response Time

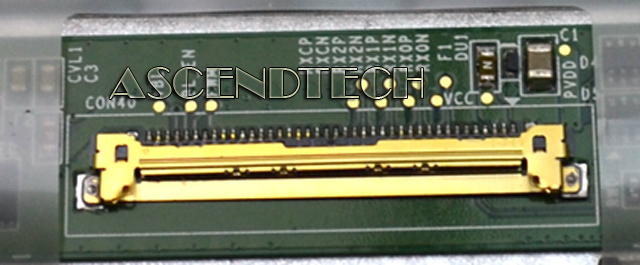

■ 3.3V LVDS Interface
■ On-board EDID chip
■ LED BLU Structure

Specifications:

Outline Dimensions: 235 x 143 x 4.9 (Typ.)
Display area: 344.232 (H) x 193.536 (V) (15.6”diagonal) mm
Driver element: a-Si TFT active matrix
Number of pixels: 1366 x 768 pixel 16 : 9
Pixel Format: RGB vertical stripe
Pixel Pitch: 0.252 (H) x 0.252 (V) (TYP.) mm
Surface Treatment: Haze 0, Hardness 3H Glare
Display colors: 262,144
Backlight: LED
RoHS Compliance: Yes
