Seasonic SS-600ES 600W PSU Power Supply

We apologize but this item is currently unavailable. Please feel free to browse our website for other available items.
Seasonic Ss-600Es 600W Psu Power Supply. Part Number: Ps-Ss600-Es
  Enlarge
Seasonic Ss-600Es 600W Psu Power Supply. Part Number: Ps-Ss600-Es
Seasonic Ss-600Es 600W Psu Power Supply. Part Number: Ps-Ss600-Es
Seasonic Ss-600Es 600W Psu Power Supply. Part Number: Ps-Ss600-Es
Seasonic Ss-600Es 600W Psu Power Supply. Part Number: Ps-Ss600-Es

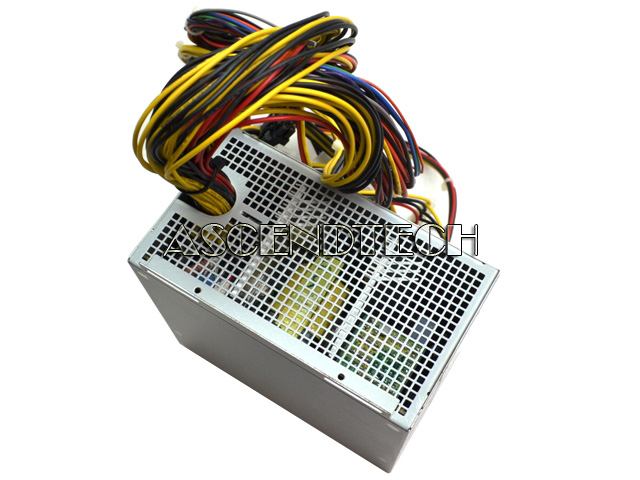

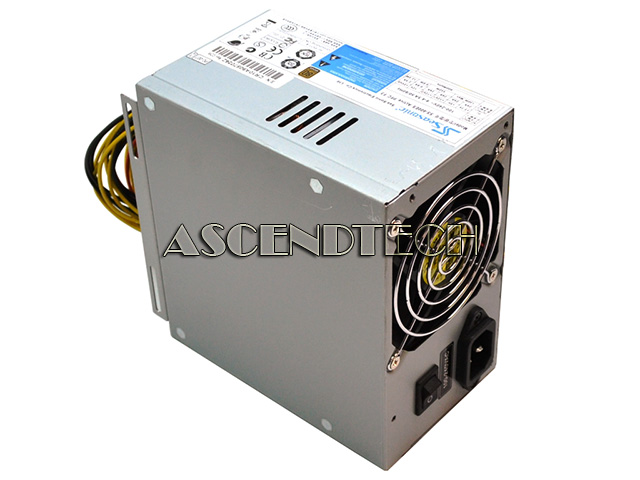

*Note this image is for descriptional purposes.
Actual product may vary.
Item Code PSHBSS600ES600W
Brand Seasonic
Model SS-600ES
Part Number PS-SS600-ES
Condition Pre-Owned Grade B
Condition Description Please note, this item is used and has minor scuffs and scratches!

Description

Seasonic SS-600ES 600W Active PFC F3 80-Plus Bronze ATX PSU Power Supply Unit PS-SS600-ES. This Seasonic industrial power supply is version 12V v.2.3 compliant and 80 PLUS Bronze rated. Its double forward converter circuit, super low noise fan control and great protection features make it a dependable choice for a wide range of systems. This unit is PCIe and SATA cable ready and with its full AC input range. It is a stable, efficient and reliable power supply, ready to be used in any ATX form factor build.

Power Output: 600W Total
Height: 86mm / 3.4"
Width: 150mm / 5.9"
Depth: 140mm / 5.5"
Form Factor: ATX
Type: Power Supply
Features: Specification compliance: ATX12V v2.31; Support the latest Intel & AMD Socket; PCI Express & Serial ATA ready; Double forward converter circuit; High efficiency and reliability; Low ripple & noise; Super low noise fan control; Short circuit protection on all outputs; Over voltage protection & Over power protection; 100% hi-pot test; 100% burn in, high temperature cycled on/off.

Additional Specifications:

Input frequency 50 / 60 Hz
Efficiency 80 PLUS Bronze
Line regulation ± 1 % (typical)
Load regulation ± 5 % (typical)
Cross regulation ± 5 % (typical)
MTBF, full load @ 25 °C ambient (excl. DC fan) > 100,000 hours
Active Power Factor Correction 99 % (typical)

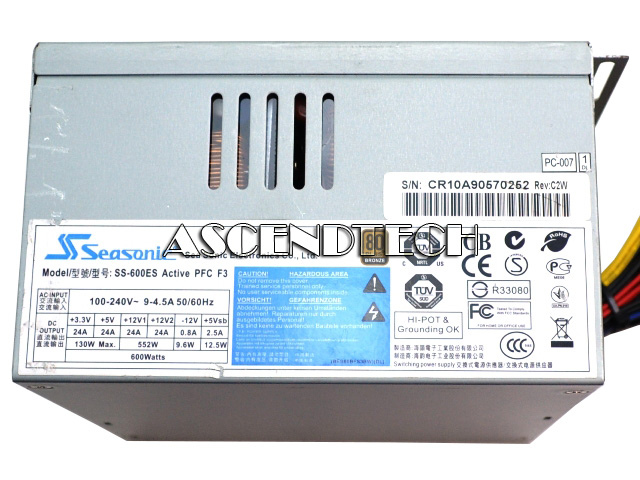

DC Outputs
+3.3V  +5V  +12V Combined   -12V    +5Vsb
24A      24A     46A                    0.8A     2.5A
130W (max.)   552W                  9.6W   12.5W

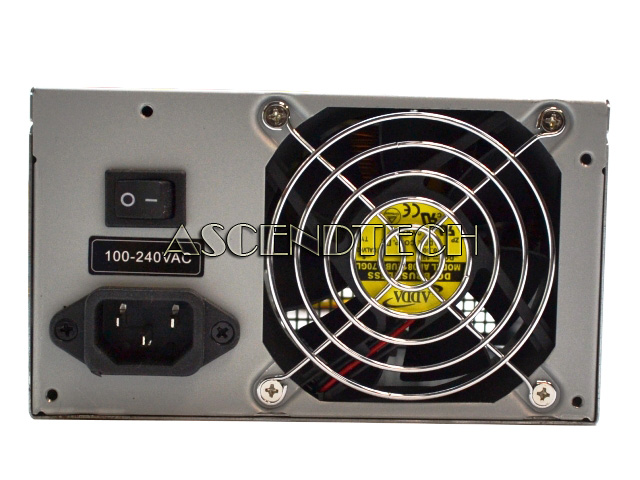

Input Type
100–240VAC
